VULSTIUNE A pin at supports the 4-kg rod with the length L = 2 m. If...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

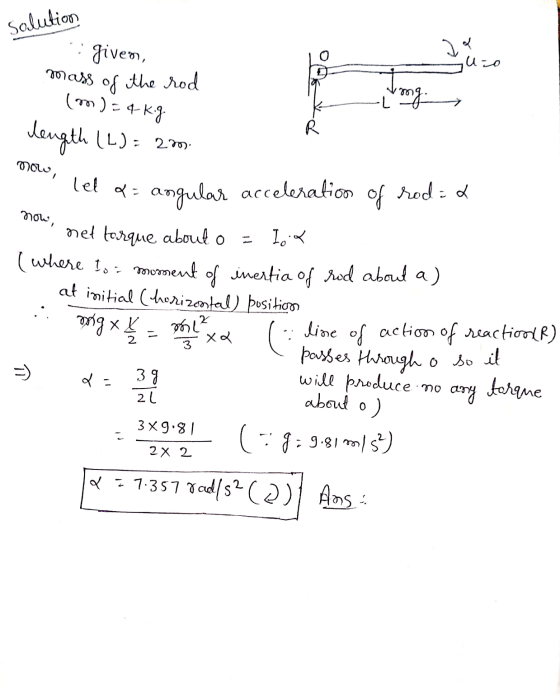

solution ico Da (m)=4kig Proo 00L i given, mass of the rod Tome 430 - org length (L) = 20 let a= angular acceleration of rodi

Answer 2

Similar Homework Help Questions

A pin at O supports the 5.3-kg rod with the length L = 2.1 m. If...

A pin at O supports the 5.3-kg rod with the length L = 2.1 m. If it has an initial clockwise angular speed of 2.9m rad/s, from the horizontal position, determine the reaction at pin O.
A uniform rod of length L (2.00 m) and mass M (5.00 Kg) is free to...

A uniform rod of length L (2.00 m) and mass M (5.00 Kg) is free to rotate on a frictionless pin passing through one end. The rod is released from rest in the horizontal position, (a) What is its angular speed when the rod reaches its lowest position? (b) What arc the linear speed of the center of mass and that of the lowest point on the rod when it is in the vertical position?
The uniform thin rod in the figure below has mass M = 4.00 kg and length...

The uniform thin rod in the figure below has mass M = 4.00 kg and length L = 2.21 m and is free to rotate on a frictionless pin. At the instant the rod is released from rest in the horizontal position, find the magnitude of the rod's angular acceleration, the tangential acceleration of the rod's center of mass, and the tangential acceleration of the rod's free end. (a) the rod's angular acceleration (in rad/s2) rad/s2 (b) the tangential acceleration...

4(12 points) A uniform rod of length L and mass M is attached at one end...

4(12 points) A uniform rod of length L and mass M is attached at one end to a frictionless pivot and is free to rotate about the pivot in the vertical plane as in Figure. The rod is released from rest in the horizontal position. (a)What are the initial angular acceleration of the rod and the initial translational acceleration of its right end (as shown in Fig.a)? (b)What is its angular speed when the rod reaches its lowest position (as...
A uniform rod with a mass of m = 1.85 kg and a length of l...

A uniform rod with a mass of m = 1.85 kg and a length of l = 2.32 m is attached to a horizontal surface with a hinge. The rod can rotate around the hinge without friction. (See figure.) The rod is held at rest at an angle of ? = 65.8° with respect to the horizontal surface. 1) What is the angular acceleration of the rod, when it is released? 2) What is the angular speed of the rod,...
D L/2 G L/2 B MO A uniform slender rod of mass M=10 kg and length...

D L/2 G L/2 B MO A uniform slender rod of mass M=10 kg and length L=3m, is hinged at A. The rod is held in a horizontal position against А the spring (k= 200kN/m) at G, the spring being in compression. When the rod is released from this horizontal position k Rigid (the spring is not connected to the rod), support it will rotate about the frictionless hinge Spring A in a vertical plane. Determine: support a. The minimum...

hun odeli yeniform rod of mass 12 kg and length L - 2.0 m, is free...

hun odeli yeniform rod of mass 12 kg and length L - 2.0 m, is free to pivot about a frictionless axis thro one end. The rod is released from rest at an angle of 30° above the horizontal and allowed to fall nopes a) What is the instantancous angular acceleration when the rod is released? od : vadis b) What is the change in gravitational potential energy of the center of mass when the rod passes through the horizontal...
The uniform slender rod contains a 4-kg uniform rod with the center of mass at point...

The uniform slender rod contains a 4-kg uniform rod with the center of mass at point G is suspended from a hinge at C. The rod is at rest in a vertical position when point B is subjected to a force of P = 75 N, and a moment M = 50 Nm, the length of the rod is 1 m and r = 0.225m. Determine the reactions at the pin C and the initial angular acceleration of the rod....
a uniform rod of mass 5 kg and length 1.5 meters rotates around a pin through...

a uniform rod of mass 5 kg and length 1.5 meters rotates around a pin through one end. It is released from rest at the horizontal position. What is the angular speed when it reaches the lowest point. (I=1/3 ML^2

A uniform rod with a mass of m = 1.73 kg and a length of l...

A uniform rod with a mass of m = 1.73 kg and a length of l = 2.44 m is attached to a horizontal surface with a hinge. The rod can rotate around the hinge without friction. (See figure.) Initially the rod is held at rest at an angle of 0 = 70.3° with respect to the horizontal surface. Then the rod is released. What is the angular speed of the rod, when it lands on the horizontal surface? 7.56rad/s...
