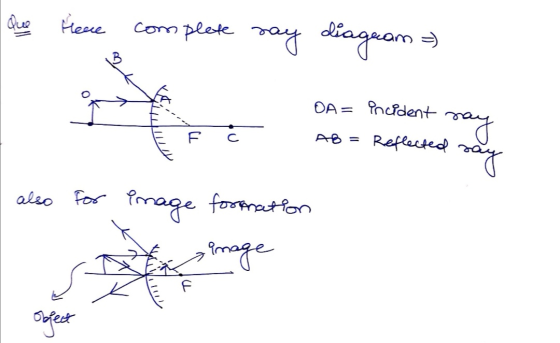

Trace the path of a ray emited from the top of the object toward the local...
Trace the path of a ray emitted from the tip of the object toward the focal...

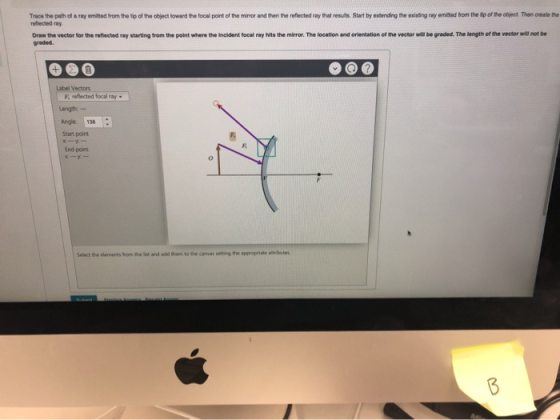

Trace the path of a ray emitted from the tip of the object toward the focal point of the mirror and then the reflected ray that results. Start by extending the existing ray emitted from the tip of the object. Then create the reflected ray. Draw the vector for the reflected ray starting from the point where the incident focal ray hits the mirror. The location and orientation of the vector will be graded. The length of the vector will...
An object O is placed at the location shown in front of a convex spherical mirror....
An object O is placed at the location shown in front of
a convex spherical mirror. Use ray tracing to determine the
location and size of the image in the mirror. As you work, keep in
mind the following properties of principal rays:
A ray parallel to the axis, after reflection, passes through the
focal point F of a concave mirror or appears to come from
the (virtual) focal point of a convex mirror.
A ray through (or proceeding toward)...
To practice Tactics Box 18.5 Ray tracing for a convex mirror. The procedure known as ray...
To practice Tactics Box 18.5 Ray tracing for a convex mirror. The procedure known as ray tracing is a pictorial method for understanding image formation when lenses or mirrors are used. It consists in locating the image by the use of just three "special rays." The following Tactics Box explains this procedure for the case of a convex mirror. The diagram below shows the situation described in the problem. The focal length of the mirror is labeled f the scale...
Vittorio needs to clean the dusty mirror hanging on the wall before he can use it, but he would like to clean as little...
Vittorio needs to clean the dusty mirror hanging on the wall
before he can use it, but he would like to clean as little of the
mirror as possible.
Vittorio would like to be able to see the logo on his shirt.
Draw the incident and reflected rays showing the light from the
logo reflecting off the mirror into his eyes. The rays should meet
at the point on the mirror that needs cleaning.
Adjust the existing vectors on the...
Vittorio needs to clean the dusty mirror hanging on the wall before he can use it
Vittorio needs to clean the dusty mirror hanging on the wall before he can use it, but he would like to clean as little of the mirror as possible.A.) Vittorio would like to be able to see the logo on his shirt. Draw the incident and reflected rays showing the light from the logo reflecting off the mirror into his eyes. The rays should meet at the point on the mirror that needs cleaning.Draw the vectors, for the reflected and...
Object Location (cm) --5.000 Use paraxial ray approximation 10 Image location: 2.62 cm 5 x -10...
Object Location (cm) --5.000 Use paraxial ray approximation 10 Image location: 2.62 cm 5 x -10 -5 15 -5 -10 20 Interactive Exercises 34.02: Image Formation by a Concave Mirror The simulation (linked below) shows a spherical, concave mirror and an xy coordinate system. A blue arrow represents an object, and the simulation traces two rays (of infinitely many) emanating from the top of the object. These rays are Ray 1: parallel to the central axis of the mirror (the...
Draw two incident Ray's from the top of an object, refracted Ray's on the other side...
Draw two incident Ray's from the top of an object, refracted Ray's on the other side of the converging lens while the object is: (Also describe in words the location and the orientation of the image) A. Beyond twice the focal length of the lens B. At a distance from the lens which is twice the focal length of the lens C. Between focal length and twice the focal length of the lens D. At focal length E. Between the...
1. Starting 5.0 mm from a department store mirror, Suzanne walks toward the mirror at 1.2...
1. Starting 5.0 mm from a department store mirror, Suzanne walks toward the mirror at 1.2 m/sm/s for 2.0 s. 2. An object is 34 cm in front of a diverging lens with a focal length of -17 cm. Use ray tracing to determine the location of the image.
Follow the steps above to solve the following problem: An object is 9.0 cm from a...
Follow the steps above to solve the following problem: An object is 9.0 cm from a diverging lens with a focal length of 5.2 cm. Use ray tracing to determine the location of the image. Part A The diagram below shows the situation described in the problem. The focal length of the lens is labeled f; the scale on the optical axis is in centimeters.Draw the three special rays, Ray 1, Ray 2, and Ray 3, as described in the...
11. A ray of light strikes a thick sheet of glass (n-1.5) at an angle of...
11. A ray of light strikes a thick sheet of glass (n-1.5) at an angle of 25° with the normal. Find the angle of the ray reflected off the glass surface with respect to the normal. a. 56 b.46 c.39 d. 25 12. A fiber optic cable (n- 1.s0o) is submerged in water (- 1.33). What is the critical angle for light to stay inside the cable? 2. 83.1 b.62.5 С. 41.8 d. 27.6 13. An object placed 12 cm...
Trace the path of a ray emitted from the tip of the object toward the focal point of the mirror and then the reflected ray that results. Start by extending the existing ray emitted from the tip of the object. Then create the reflected ray. Draw the vector for the reflected ray starting from the point where the incident focal ray hits the mirror. The location and orientation of the vector will be graded. The length of the vector will...
An object O is placed at the location shown in front of
a convex spherical mirror. Use ray tracing to determine the
location and size of the image in the mirror. As you work, keep in
mind the following properties of principal rays:
A ray parallel to the axis, after reflection, passes through the
focal point F of a concave mirror or appears to come from
the (virtual) focal point of a convex mirror.
A ray through (or proceeding toward)...
To practice Tactics Box 18.5 Ray tracing for a convex mirror. The procedure known as ray tracing is a pictorial method for understanding image formation when lenses or mirrors are used. It consists in locating the image by the use of just three "special rays." The following Tactics Box explains this procedure for the case of a convex mirror. The diagram below shows the situation described in the problem. The focal length of the mirror is labeled f the scale...
Vittorio needs to clean the dusty mirror hanging on the wall
before he can use it, but he would like to clean as little of the
mirror as possible.
Vittorio would like to be able to see the logo on his shirt.
Draw the incident and reflected rays showing the light from the
logo reflecting off the mirror into his eyes. The rays should meet
at the point on the mirror that needs cleaning.
Adjust the existing vectors on the...
Vittorio needs to clean the dusty mirror hanging on the wall before he can use it, but he would like to clean as little of the mirror as possible.A.) Vittorio would like to be able to see the logo on his shirt. Draw the incident and reflected rays showing the light from the logo reflecting off the mirror into his eyes. The rays should meet at the point on the mirror that needs cleaning.Draw the vectors, for the reflected and...
Object Location (cm) --5.000 Use paraxial ray approximation 10 Image location: 2.62 cm 5 x -10 -5 15 -5 -10 20 Interactive Exercises 34.02: Image Formation by a Concave Mirror The simulation (linked below) shows a spherical, concave mirror and an xy coordinate system. A blue arrow represents an object, and the simulation traces two rays (of infinitely many) emanating from the top of the object. These rays are Ray 1: parallel to the central axis of the mirror (the...
Follow the steps above to solve the following problem: An object is 9.0 cm from a diverging lens with a focal length of 5.2 cm. Use ray tracing to determine the location of the image. Part A The diagram below shows the situation described in the problem. The focal length of the lens is labeled f; the scale on the optical axis is in centimeters.Draw the three special rays, Ray 1, Ray 2, and Ray 3, as described in the...
11. A ray of light strikes a thick sheet of glass (n-1.5) at an angle of 25° with the normal. Find the angle of the ray reflected off the glass surface with respect to the normal. a. 56 b.46 c.39 d. 25 12. A fiber optic cable (n- 1.s0o) is submerged in water (- 1.33). What is the critical angle for light to stay inside the cable? 2. 83.1 b.62.5 С. 41.8 d. 27.6 13. An object placed 12 cm...
