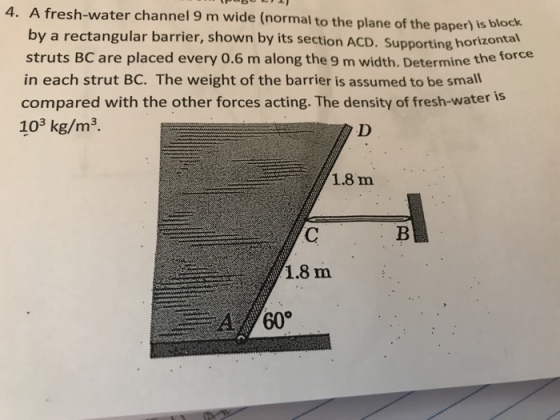

A fresh-water channel 9 m wide (normal to the plane of the paper) is blo by...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

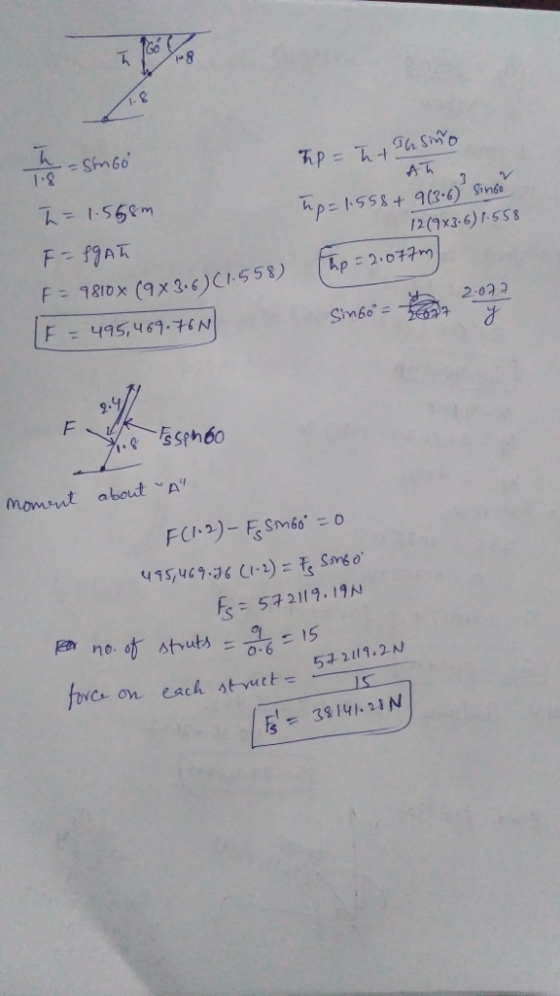

12(9x3.6)5S 9 momant about A Eh no.of stuts =配ち15 oic a on each st vuct

Answer 2

Similar Homework Help Questions

2. A 2.5 m wide rectangular channel conveys m wide rectangular channel conveys water at a...

2. A 2.5 m wide rectangular channel conveys m wide rectangular channel conveys water at a normal depth of 2 m. In a part of the channel, the channel width is expanded to 5 m. The local energy loss due to this expansion is about 10% of the upstream velocity head. If the channel slope is 0.03% and the Manning roughness coefficient is about 0.012, calculate the water depth over this transition and show the situation with a simple sketch.
A 8 m wide rectangular channel is carrying water at 180 m3/s

A 8 m wide rectangular channel is carrying water at 180 m3/s. The channel is constructed of concrete (Manning's N = 0.013) and is laid at a slope of 0.28 %. Find the normal depth
A 8-m wide rectangular channel carries a flow of 96 m3/s at a flow depth of...

A 8-m wide rectangular channel carries a flow of 96 m3/s at a flow depth of 4 m. The channel width is constricted to 6 m in a length of 5 m. Assuming the channel transition has straight and vertical sides, and there are no losses, plot the water-surface profile in the transition. Hint: you should find the water depth when the channel width is 8 m, 7.5 m, 7 m, 6.5 m, and 6 m.

9) A rectangular channel 8 feet wide carries 2.5 ft/s of water at a depth of...

9) A rectangular channel 8 feet wide carries 2.5 ft/s of water at a depth of 3.2 feet. a) What are the most efficient attributes (d, A, P, and R) of the channel? b) If a 1-foot wide pier is placed in the middle of the channel, find the elevation of the water surface at the pier. What is the minimum width of the constriction that will not cause a rise in the upstream water surface?
Water flows within the 4-m-wide rectangular channel at 25 m3/s.

Water flows within the 4-m-wide rectangular channel at 25 m3/s. Take yA = 0.4 m. Part A Determine the depth of flow yB at the downstream end. Part B Determine the velocity of flow at A.
please show all the steps thank you 2. Water flowing at the normal depth in a rectangular concrete channel that is 12 m wide encounters an obstruction, causing the water level to rise above the no...

please show all the steps thank you 2. Water flowing at the normal depth in a rectangular concrete channel that is 12 m wide encounters an obstruction, causing the water level to rise above the normal depth at the obstruction and for some distance upstream. The water discharge is 126 m3/s, and the channel bottom slope is 0.00086. If the depth of water just upstream from the obstruction (yo) is 4.55 m, find the distance upstream to the point where...

water flows at a rate of 20 m3/s through a rectangular channel 4.0 m wide from...

water flows at a rate of 20 m3/s through a rectangular channel 4.0 m wide from a "steep slope" to a 'mild slope", creating a hydraulic jump. The upstream depth of flow is 1.20 m Find the following: (a) the downstream depth of flow, (b) the energy loss in the jump, anid (c) the upstream and downstream velocities 2)
A 5-m-wide. 5-m-high rectangular plate blocks the end of a 4.m-deep freshwater channel, as shown in...

A 5-m-wide. 5-m-high rectangular plate blocks the end of a 4.m-deep freshwater channel, as shown in the figure. The plate is hinged about a horizontal axis along its upper edge through a point A and is restrained from opening by a fixed ridge at point B. Determine the forge exerted on the plate by the ridge BE) (25 pts) )water = 9810 I m rI For a vertical rectangular wall the resultant force is applied at one third of depth...
Water flows down a rectangular channel that has a width of 2.2 m, a Manning's n...

Water flows down a rectangular channel that has a width of 2.2 m, a Manning's n of 0.019 and a slope of 1 in 200. Calculate the discharge in the channel when the depth of flow is 0.5 m, 1.0 m, 2.0 m, and 4.0 m. Plot a graph of depth against discharge and comment on its shape, [10 marks] A wide channel has a Manning's number = 0.021, a longitudinal bed slope of 1:250 and conveys 0.XX m3/s/m of...

Question 10 please my teachers please Question 9. A rectangular river channel 5.0m wide carries water...

Question 10 please my teachers please Question 9. A rectangular river channel 5.0m wide carries water at a depth of 1.2m. The slope of the channel is 1 in 400. The channel has a bed covered with stones. Using the n value of 0.03(s/m 1/3) calculate the discharge in the channel using Manning's equation. (10 marks) Question 10. With reference to a cross section of a particular site, discuss the fundamental principles of groundwater movement and show the influence of...
