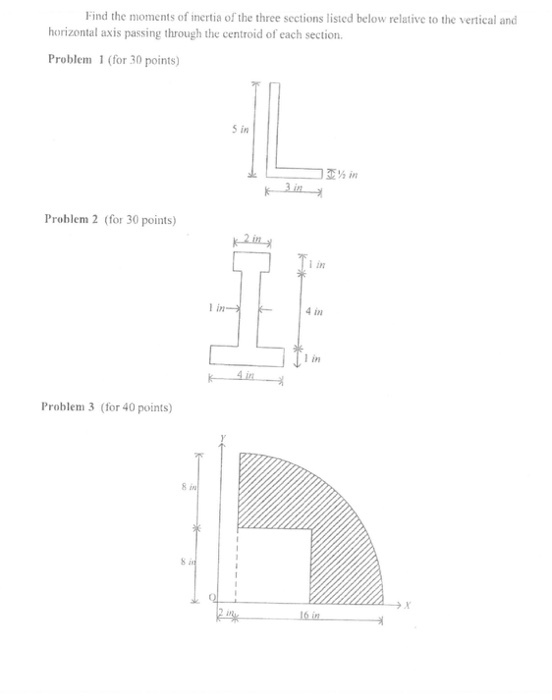

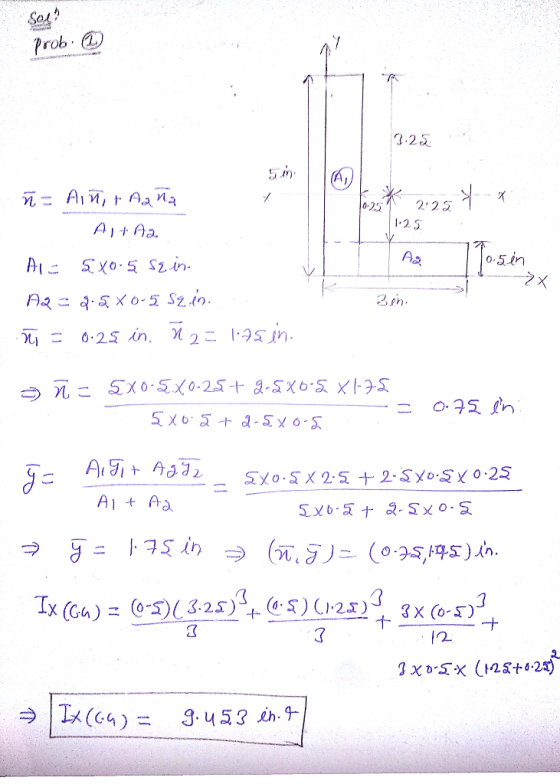

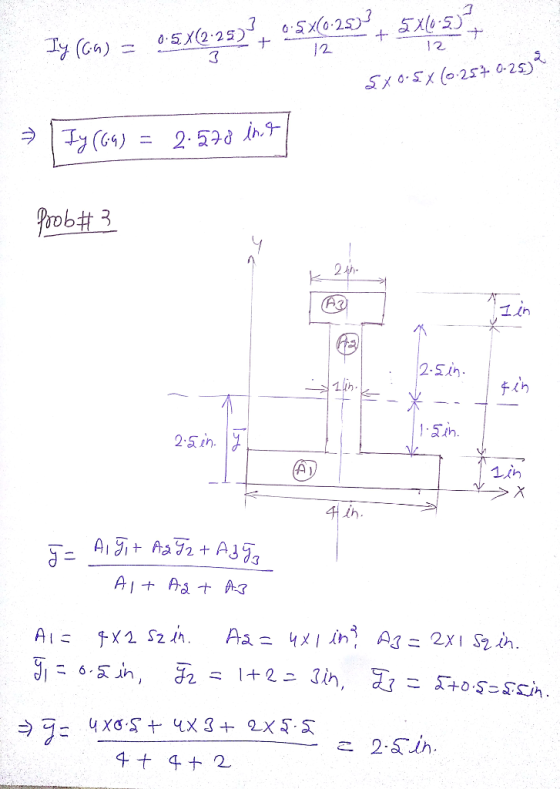

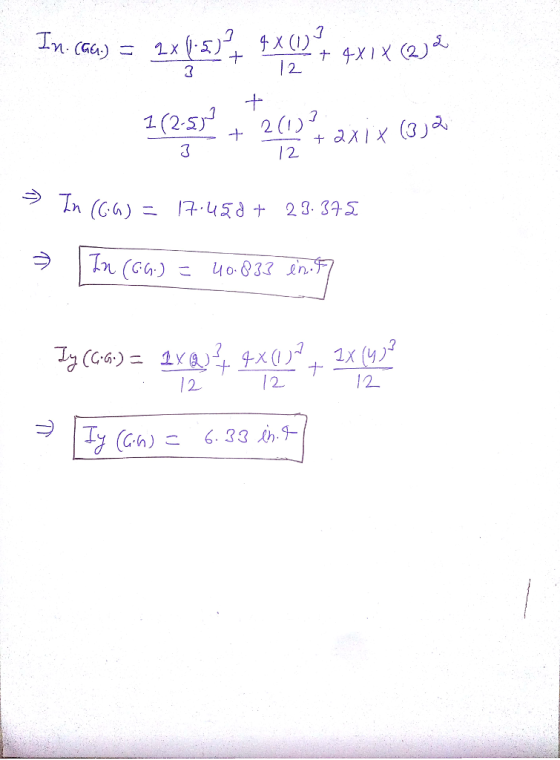

Find the moments of inertia of the three sections listed below relative to the vertical and...
Statics problem Determine the moments of inertia Tx and Ty of the area shown about vertical...
Statics problem
Determine the moments of inertia Tx and Ty of the area shown about vertical and horizontal axes running through the centroid of the area. Consider w= 2.5 in. -3 in.3 in.3 in. → 6 in. w А B The moment of inertia It is in 4. The moment of inertia Ty is in4
Find the Ix, Iy, 10, and Ixy moments of inertia and ix and good inertia radii...
Find the Ix, Iy, 10, and Ixy moments of inertia and ix and good inertia radii according to the axis set passing through the center of gravity of the section in the figure. 1cm 4cm 1.5cm - 2cm Icm + 2cm 2cm
u Review Part B - Calculate the moment of inertia Learning Goal: To find the centroid...
u Review Part B - Calculate the moment of inertia Learning Goal: To find the centroid and moment of inertia of an I-beam's cross section, and to use the flexure formula to find the stress at a point on the cross section due to an internal bending moment. Once the position of the centroid is known, the moment of inertia can be calculated. What is the moment of inertia of the section for bending around the z-axis? Express your answer...
Physics problem A 3-dimensional object actually has THREE principle moments of inertia - the moments of...
Physics problem
A 3-dimensional object actually has THREE principle moments of inertia - the moments of inertia about the three mutually perpendicular "principle" axes. Take a rectangular book or object that has three different dimensions (length, width and height), so that it has three different moments of inertia, and try to spin it around the three principle axes (the axes that are perpendicular to each face of the object and pass through the center of it). Only one axis produces...
Compute the area moments of inertia (Iz and Iy) about the horizontal and vertical centroidal (x...
Compute the area moments of inertia (Iz and Iy) about the horizontal and vertical centroidal (x and y) axes, respectively, and the centroidal polar area moment of inertia (J-Iz -Iz +Iy) of the cross section of Problem P8.12. Answer: 1x-25.803 in. Ц-167.167 in. and J-192.97 in P8.12 The cross-sectional dimensions of the beam shown in Figure P8.12 are a 5.o in., b moment about the z centroidal axis is Mz--4.25 kip ft. Determine 6.o in., d -4.0 in., and t-...
Please answer the following,and please note that 0.00130,0.00608,-0.000558 does not work. Mohr's circle is a graphical method used to determine an area's principal moments of inertia and to f...
Please answer the following,and please note that
0.00130,0.00608,-0.000558 does not work.
Mohr's circle is a graphical method used to determine an area's principal moments of inertia and to find the orientation of the principal axes. Another advantage of using Mohr's circle is that it does not require that long equations be memorized. The method is as follows: 1. To construct Mohr's circle, begin by constructing a coordinate system with the moment of inertia, I, as the abscissa (x axis) and...
please make sure to also draw mohrs circle For the un-symmetric C-section shown below 1- Locate the centroid "C" 2- Detemine the principal axes and moments of inertia about the centroid....
please make sure to also draw mohrs circle
For the un-symmetric C-section shown below 1- Locate the centroid "C" 2- Detemine the principal axes and moments of inertia about the centroid. 3- Detemine the moments and product of Inertia with respect to the u-v axes using Mohr's circle ye 0.5 in 6 in 4 in
For the un-symmetric C-section shown below 1- Locate the centroid "C" 2- Detemine the principal axes and moments of inertia about the centroid. 3- Detemine...
Problem #2) Three boards that are glued together to form a single beam whose cross section...
Problem #2) Three boards that are glued together to form a single beam whose cross section is shown below. The moment acting about the z-axis is 1000 ft-lb and the vertical shear force is 400 lb. (20 points) a. Find the vertical centroid of the section, y. b. Find the moment of inertia of the section taken about a horizontal z-axis through the centroid. c. Determine the bending stress the wood must be able to resist assuming compression controls. d....
For a 6x4 x5/8 unequal leg angle locate the centroid relative to the axes shown below...
For a 6x4 x5/8 unequal leg angle locate the centroid relative to the axes shown below (the U and V axes in the figure), and then find the maximum and minimum mlues for the moment of inertia with respect to the centroidal axes. The centroidal axes are located at the centroid, but the axes associated with the maximum and minimum moments of inertial (the principle moments of inertia) are not parallel to the U and V axes shown below. Find...
Locate the centroid, ỹ, relative to the x-axis. Calculate the moment of inertia relative to the...
Locate the centroid, ỹ, relative to the x-axis. Calculate the moment of inertia relative to the centroidal x 3 in axis What is the location of the centroid. y bar, measured relative to the x-axis? 1 in 1 in. 5 in. 3.12 in 2 in. 2.91 in 3.79 in 3 in.-3 in,- 4.12 in what is the moment of inertia about the centroidal x-axis? Be careful when defining the dy distance of the half circle at the top, Note that...
Statics problem
Determine the moments of inertia Tx and Ty of the area shown about vertical and horizontal axes running through the centroid of the area. Consider w= 2.5 in. -3 in.3 in.3 in. → 6 in. w А B The moment of inertia It is in 4. The moment of inertia Ty is in4
Find the Ix, Iy, 10, and Ixy moments of inertia and ix and good inertia radii according to the axis set passing through the center of gravity of the section in the figure. 1cm 4cm 1.5cm - 2cm Icm + 2cm 2cm
u Review Part B - Calculate the moment of inertia Learning Goal: To find the centroid and moment of inertia of an I-beam's cross section, and to use the flexure formula to find the stress at a point on the cross section due to an internal bending moment. Once the position of the centroid is known, the moment of inertia can be calculated. What is the moment of inertia of the section for bending around the z-axis? Express your answer...
Physics problem
A 3-dimensional object actually has THREE principle moments of inertia - the moments of inertia about the three mutually perpendicular "principle" axes. Take a rectangular book or object that has three different dimensions (length, width and height), so that it has three different moments of inertia, and try to spin it around the three principle axes (the axes that are perpendicular to each face of the object and pass through the center of it). Only one axis produces...
Compute the area moments of inertia (Iz and Iy) about the horizontal and vertical centroidal (x and y) axes, respectively, and the centroidal polar area moment of inertia (J-Iz -Iz +Iy) of the cross section of Problem P8.12. Answer: 1x-25.803 in. Ц-167.167 in. and J-192.97 in P8.12 The cross-sectional dimensions of the beam shown in Figure P8.12 are a 5.o in., b moment about the z centroidal axis is Mz--4.25 kip ft. Determine 6.o in., d -4.0 in., and t-...
Please answer the following,and please note that
0.00130,0.00608,-0.000558 does not work.
Mohr's circle is a graphical method used to determine an area's principal moments of inertia and to find the orientation of the principal axes. Another advantage of using Mohr's circle is that it does not require that long equations be memorized. The method is as follows: 1. To construct Mohr's circle, begin by constructing a coordinate system with the moment of inertia, I, as the abscissa (x axis) and...
please make sure to also draw mohrs circle
For the un-symmetric C-section shown below 1- Locate the centroid "C" 2- Detemine the principal axes and moments of inertia about the centroid. 3- Detemine the moments and product of Inertia with respect to the u-v axes using Mohr's circle ye 0.5 in 6 in 4 in
For the un-symmetric C-section shown below 1- Locate the centroid "C" 2- Detemine the principal axes and moments of inertia about the centroid. 3- Detemine...
Problem #2) Three boards that are glued together to form a single beam whose cross section is shown below. The moment acting about the z-axis is 1000 ft-lb and the vertical shear force is 400 lb. (20 points) a. Find the vertical centroid of the section, y. b. Find the moment of inertia of the section taken about a horizontal z-axis through the centroid. c. Determine the bending stress the wood must be able to resist assuming compression controls. d....
For a 6x4 x5/8 unequal leg angle locate the centroid relative to the axes shown below (the U and V axes in the figure), and then find the maximum and minimum mlues for the moment of inertia with respect to the centroidal axes. The centroidal axes are located at the centroid, but the axes associated with the maximum and minimum moments of inertial (the principle moments of inertia) are not parallel to the U and V axes shown below. Find...
Locate the centroid, ỹ, relative to the x-axis. Calculate the moment of inertia relative to the centroidal x 3 in axis What is the location of the centroid. y bar, measured relative to the x-axis? 1 in 1 in. 5 in. 3.12 in 2 in. 2.91 in 3.79 in 3 in.-3 in,- 4.12 in what is the moment of inertia about the centroidal x-axis? Be careful when defining the dy distance of the half circle at the top, Note that...
