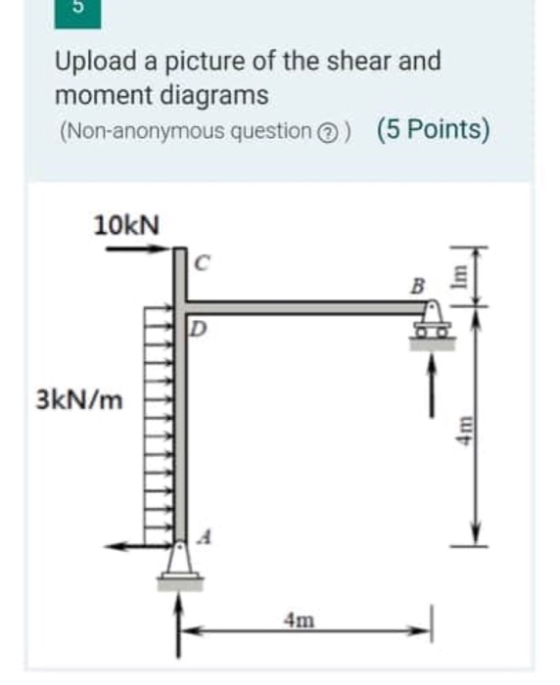

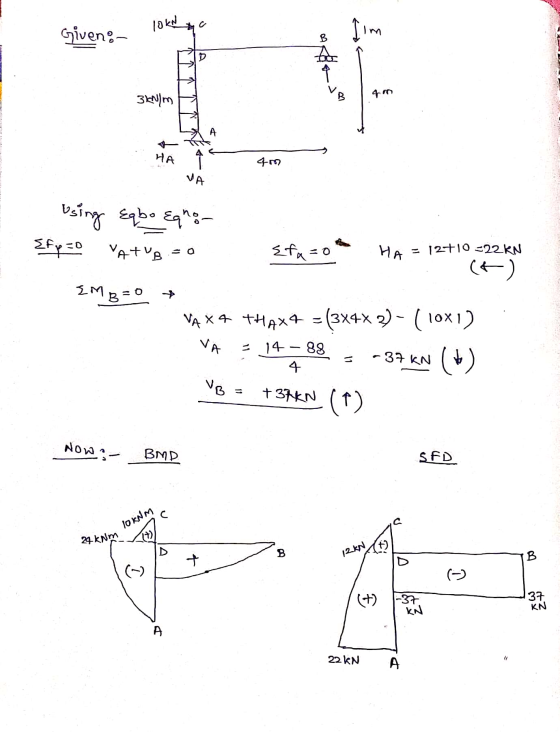

5 Upload a picture of the shear and moment diagrams (Non-anonymous question © (5 Points) 10KN...
For the beam and loading shown, draw the shear and bending moment diagrams, and determine the magnitude and location of the maximum shear and bending moment. 2 kN/m AC D 6 NT 3kN/m lm-- 1.2 m 0.6 m
Part II: Problem 5 (15 points) Draw the shear and moment
diagrams for the beam and determine the maximum shear and the
maximum moment.
Part II: Problem 5 (15 points) Draw the shear and moment diagrams for the beam and determine the maximum shear and the maximum moment. 15 kN 5 kN/m 80 kNm B (a)
3. Without writing shear and moment equations, draw shear and moment diagrams and indicate the values at all critical locations. 20 kN 40 kN/m 20 kN/m 1.2m 4m 4m
Question 5 10 points Save Answ Draw the shear-force and bending-moment diagrams for the simply supported beam shown. Determine the bending moment 3.6 m to the right of point A if W = 9.1 kN/m, T = 17.34 kNm, m = 11.9 m, and n = 3.7 m. W T С о В n Question 6 10 points Save Answer Draw the shear-force and bending-moment diagrams for the simply supported beam shown. Determine the shear force 3.3 m to the...
Calculate....
1. Calculate the support reactions and draw the axial force, shear force and bending moment diagrams for the beams and frame shown in Fig. 1, labelling all important values (such as, but not necessarily limited to, locations of points of inflection and values of shears and moments at supports, intersections and discontinuities). For the portal frame in li) assume there are points of inflection in the columns located 2.4m up from the ground and one in the beam midway...
question about mechanics of materials
i Question 3 Draw the shear force and bending moment diagrams for a plane frame ABCDE as shown in Figure Q3. D is a pinned connection. frame ABCDE as plane (20 marks) 100kN 3m 10kN/m 3m 3m 3m Figure Q3
i Question 3 Draw the shear force and bending moment diagrams for a plane frame ABCDE as shown in Figure Q3. D is a pinned connection. frame ABCDE as plane (20 marks) 100kN 3m 10kN/m...
2. (70pt) For the system shown below: w bending moment (M) and shear force diagrams (V) using Moment Distribution (Cross) or Slope Deflection Method. 90 kN/m 40 kN 41 80 kN/m 5m 21 2 2m 5m 31 5 8m 4m 4m CH y 12 31
2. (70pt) For the system shown below: w bending moment (M) and shear force diagrams (V) using Moment Distribution (Cross) or Slope Deflection Method. 90 kN/m 40 kN 41 80 kN/m 5m 21 2 2m...
Draw the shear and moment
diagrams for the loaded beam. After you have the diagrams, answer
the questions in order to gain confidence in your plots.
Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions in order to gain confidence in your plots. 2 kN 11 kN 5 kNm +3m +4m + 6m — +3m 8 KN Questions: When x = 2.1 m, V = KN.m When x = 5.7 m,...
4. (20pts.) Determine: a. ( pts) Draw the shear and moment diagrams for the rectangular wooden beam shown. b. The Maximum shear stress and shear in the T-bean1 at point C, c. The shear flow between the web and the flange 150 mm 1 T 150 mm 30 mm HE-30 mm 10kN/m A. B с Е- 3 m- 1.5 m --—1.5 m
1- Draw shear and bending moment diagrams for the following simply supported beams, find the location and magnitude of maximum moment for each one. Show all of your calculations. 1 kN 4 KN 2 kN (7marks) 5 kN/m TITIT 40 70 70 40 40 60 A B с TI G DE All distances in cm II- 3kN 1.5 kN/m A B с RA 6m 3m Rc
