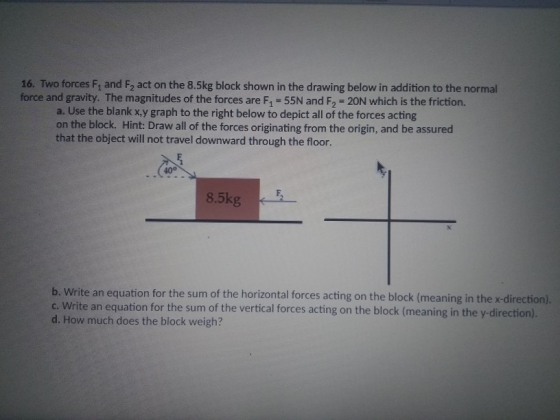

16. Two forces F, and F2 act on the 8.5kg block shown in the drawing below in addition to the normal force and gravity. The magnitudes of the forces are F1-55N and F2 = 20N which is the friction. a. Use the blank x,y graph to the right below to depict all of the forces acting on the block. Hint: Draw all of the forces originating from the origin, and be assured that the object will not travel downward through the floor. E 100 8.5kg b. Write an equation for the sum of the horizontal forces acting on the block (meaning in the x-direction) c. Write an equation for the sum of the vertical forces acting on the block (meaning in the y-direction). d. How much does the block weigh?

Answer 1

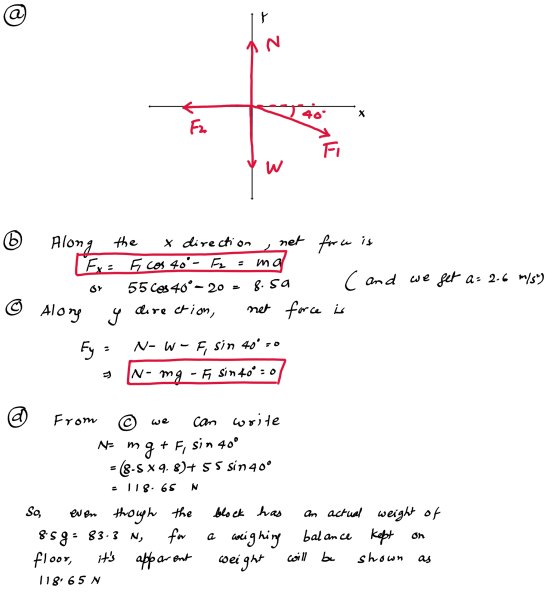

@ 27 40° X F2 ak w 6 ma Along the x direction net force is [ Ex= F cos 40°- Fz = 55 cos 40°- 20 ( and we get a= 2.6 m/s) Along direction, net force is OY 8 sa © s Fy: N- W Fsin 40° -0 N- mg - Sin 4o* : 0 we N From © can write Na mg + F, sin 40° - (8-5 X 9.8)+ 55 sin 40° 118.65 So, even though the block has 859: 83.3 M, for a weighing floor, it's apparent 118 6 5 N an actual weight of balance kept kept on cwill be shown weight
