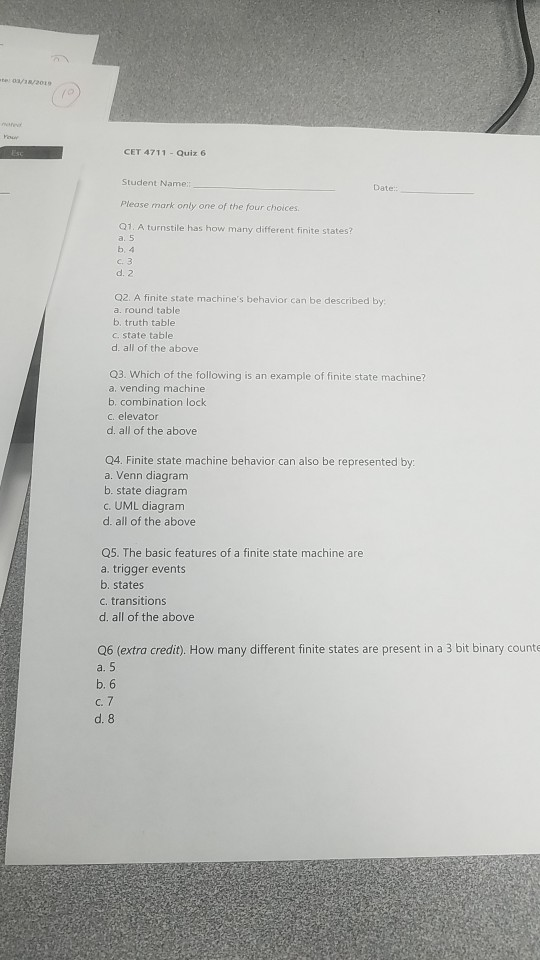

CET 4711 Quiz 6 Student Name Please mark only one of the four choices Q1. A turnstile has how many different finite states? Date: b, 4 с.3 d. 2 Q2. A finite state machine's behavior can be described by. a. round table b. truth table c. state table d. all of the above Q3. Which of the following is an example of finite state machine? a. vending machine b. combination lock c elevator d. all of the above Q4. Finite state machine behavior can also be represented by a. Venn diagram b. state diagram c. UML diagram d. all of the above Q5. The basic features of a finite state machine are a. trigger events b. states c. transitions d. all of the above Q6 (extra credit). How many different finite states are present in a 3 bit binary count b. 6 C. 7

answer

Answer 1

1) d. 2
Turnstile has two different finite state locked and unlocked.

2) d. all of the above

By using all given table we can describe finite state machine behavior.

3)d. all of the above

Yes, all of the above are examples of finite state machine.

4)d. all of the above

By using all given diagram we can describe finite state machine behavior.

5)d. all of the above

Given functions are basic feature of a finite state machine.

6)d. 8

That 8 state in 3 bit counter is

000->001->010->011->100->101->110->111
