3. A circuit is made with two resistors (each with R = 10.0 12) that are...

Question

Question

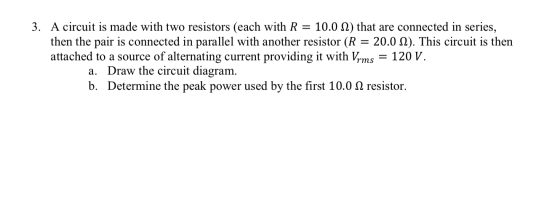

3. A circuit is made with two resistors (each with R = 10.0 12) that are connected in series, then the pair is connected in p

science physics

Answer 1

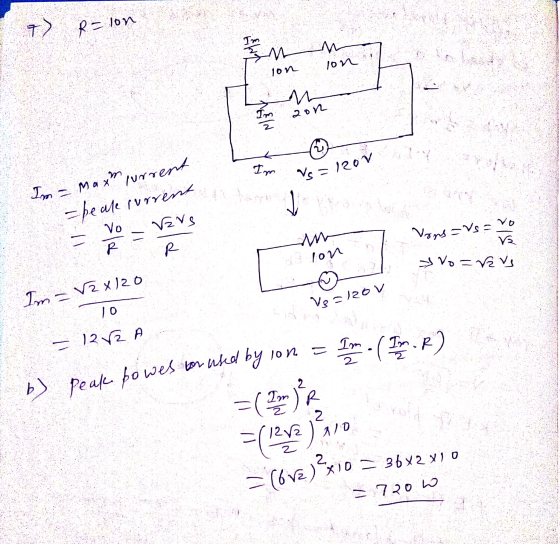

Answer #1

Answer 2

Similar Homework Help Questions

A circuit consists of two resistors in series followed in series by two resistors in parallel....

A circuit consists of two resistors in series followed in series by two resistors in parallel. Each resistor has a resistance of 5 Ohm. What is the equivalent resistance of this circuit? If the circuit is connected to an AC power source of V_rms = 110V what will be the peak current in the circuit? What will be the average power drawn by the circuit?
a.When two resistors RA and RB are combined in series and connected to a battery it...

a.When two resistors RA and RB are combined in series and connected to a battery it is observed that the ratio of the power dissipated in RA to that dissipated in RB is equal to 10. If this arrangement is dismantled and the same two resistors connected in parallel to the same battery, what is the ratio of the power dissipated in RA to that dissipated in RB in this new circuit? b.How much energy is converted by a 12...
12. Given the circuit below in which R, is in series with Ry and R, in...

12. Given the circuit below in which R, is in series with Ry and R, in parallel, which are in series with R., Rs, and calculate Reg, V2. I2. Vs, and Is assuming that Vab -100 Volts across the entire circuit. in series, R, 30- R2 30 15. Four 60W incandescent light bulbs are attached in parallel to a 120 V power source. A) What is the equivalent resistance, Rag of the circuit? B) What is the resistance of each...

Draw a circuit diagram that has two resistors in parallel with a DC voltage source. If...

Draw a circuit diagram that has two resistors in parallel with a DC voltage source. If resistor one (R1) is 252 kohms and resistor two (R2) is 176 kohms, then what is the current flowing through the circuit if the voltage is 3.16 V? What is the power flowing through the circuit?
Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω)...

Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω) are connected in parallel to another resistor R1 (5 Ω). And the circuit is connected to a 20 V power supply 9. Find the equivalent resistance (R) of the circuit shown above. (3 pts) Answer 10. Find the current that goes through R1. (4 pts) Answer 11. Find the potential difference through resistors in parallel (R2 and R3). (4 pts) Answer
Six identical resistors, each with resistance R, are connected to an emf E. A)What is the...

Six identical resistors, each with resistance R, are connected to an emf E. A)What is the current I through each of the resistors if they are connected in parallel? Express your answer in terms of the variables E and R. B)If they are connected in series? Express your answer in terms of the variables E and R. C)For which network of resistors, series or parallel, is the power consumed in each resistor greater? For which network of resistors, series or...

7. Circuits for 15 points: Five 20k12 resistors are placed in the following circuit with two...

7. Circuits for 15 points: Five 20k12 resistors are placed in the following circuit with two 100V DC power supplies. (a) Identify all series and parallel circuit equivalents that you can find. Calculate these equivalent resistance values. (b) Now you assemble a different circuit. You connect a 2022 resistor to the positive lead of a 20 V battery, and a 30 resistor to the positive lead of a 10 V battery. The other ends of both the 2012 and 30...
Three resistors having resistances of 4.0 Ohm, 6.0 Ohm, and 10.0 Ohm are connected in parallel....

Three resistors having resistances of 4.0 Ohm, 6.0 Ohm, and 10.0 Ohm are connected in parallel. If the combination is connected in series with an ideal 12-V battery and a 2.0-Ohm resistor, what is the current through the 10.0-Ohm resistor?
A. Draw the complex circuit described below A 12 volt emf source connected in series with...

A. Draw the complex circuit described below A 12 volt emf source connected in series with R1 (3Ω) , in series R1 there are R2 (2Ω) and lamp 1 (4Ω) which are in parallel with each other. Connected in series with that parallel loop is another parallel loop, which includes on one branch , R3 (5Ω), R4 (2Ω) and Lamp 2 (3Ω) in series, and on the other branch of this parallel loop is R5 (7Ω), After that parallel branch...

Three resistors connected in parallel have individual values of 6.0, 10.0 and 12.0 Ohm, respectively. If...

Three resistors connected in parallel have individual values of 6.0, 10.0 and 12.0 Ohm, respectively. If this combination is connected in series with a 15-V battery and a 3.0 Ohm resistor, what is the current in the 12 Ohm resistor?
