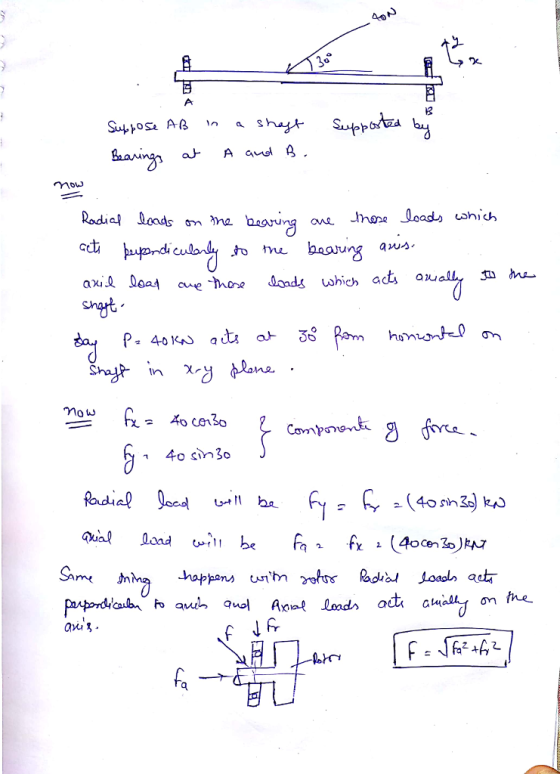

How to claculate the axial load and radial load acting on the bearing and rotor? Give...
How to claculate the axial load and radial load acting
on the bearing and rotor?
Give me an example calculation?
Homework Answers
Add Answer to:
How to claculate the axial load and radial load acting
on the bearing and rotor?
Give...
A 304 ball bearing carries a radial load of 667 lb and an axial load o...
A 304 ball bearing carries a radial load of 667 lb and an axial load o 125 lb at 300 rpm for 50% of the time, a 600 lb radial load at 500 rpm for the remaining 25% of the time, and a 350 lb radial load at 1,000 rpm for the remaining 25% of the time. The outer ring rotates, and the loads are steady. Find the rating life based on operating 8 hours per day, and 250 days...
please explain to me step by step 4.21 A bearing is required to provide axial location and support a radial load of 940 N for a shaft of 17 mm nominal diameter spinning at 570rpm The desired life...
please explain to me step by step
4.21 A bearing is required to provide axial location and support a radial load of 940 N for a shaft of 17 mm nominal diameter spinning at 570rpm The desired life is 10 years continuous operation From the limited range available in Tables 4.7 to 4.9, select and specify an appropriate bearing justifying the choice 4.22 A bearing is required to support an equivalen radial load of 1290 N. The nominal diameter of...
A 02-series angular contact ball bearing with a 10-mm bore is loaded with a 0.3604 kN axial load and 100 kN radial load. The inner ring rotates at 8000 rev/min and working 2000-hour service. For Rd =...
A 02-series angular contact ball bearing with a 10-mm bore is
loaded with a 0.3604 kN axial load and 100 kN radial load. The
inner ring rotates at 8000 rev/min and working 2000-hour service.
For Rd = 93% and af = 1.
(a) Determine the equivalent radial load that will be
experienced by the bearing.
(b) Consider a rating rated life of 10^6 revolutions find C10
load experienced by bearing and calculate the factor of safety in
carrying the load...
Final Exam, Spring 2oTg Grade: Student Name: Problem #1 (50 point): An SKF ball bearing has an axial load F. of 500 Ibr and a radial load F, of 600 Ibr applied with inner ring rotating. The basic...
Final Exam, Spring 2oTg Grade: Student Name: Problem #1 (50 point): An SKF ball bearing has an axial load F. of 500 Ibr and a radial load F, of 600 Ibr applied with inner ring rotating. The basic static load rating Co is 4250 lbr and the basic dynamic load rating Co is 7600 lb. Find the equivalent radial load Fe, and estimate the Xio life (in hours) at a speed of 600 rev/min.
Final Exam, Spring 2oTg Grade: Student...
can you please explain how to calculate the axial load for each gear and supporting load for each bearing? thank you! Task 1: A shaft is to be designed to support the spur pinion and helical gea...
can you please explain how to calculate the axial load for
each gear and supporting load for each bearing? thank you!
Task 1: A shaft is to be designed to support the spur pinion and helical gear shown in the figure below on two bearings spaced 700 mm center-to-center. Bearing A is a cylindrical roller bearing and has to take only radial load; bearing B has to take the thrust load produced by the helical gear and its share of...
A radial, deep grove ball bearing is specified from a manufacturer’s catalog based on a L10...
A radial, deep grove ball bearing is specified from a manufacturer’s catalog based on a L10 life of 106 cycles. The bearing has a basic load rating of 2,500 N and is to be used in an application where the design radial load is 350 N and the axial load is zero. What is the predicted life (hours of the bearing if the inner race of the bearing rotates at 1,800 rpm? A.70 B. 3,400 C. 200,000 D. 160
A shaft rotating at 1440 rpm is supported by two bearings. The forces acting on each...
A shaft rotating at 1440 rpm is supported by two bearings. The forces acting on each bearing are 6000N radial load and 3500 N axial thrust. If the shaft diameter is 40mm and the expected life of the bearing is 500h, select a suitable bearing.
An angular contact ball bearing with outer ring stationary is loaded with a 2,8 kN axial...
An angular contact ball bearing with outer ring stationary is loaded with a 2,8 kN axial load and a 6,4 kN radial load. The inner ring 13. rotates at 480 revimin. Application factor is 1. Desired life is 20 kh under 90% reliability (C10=62 KN CO=36 kN). Evaluate the equivalent radial load factor (e) A) 0 273 B) 0.263 C) 0,275 D) 0.265 E) 0.277
fast please CHAPTER 9 9.1. A ball bearing is subjected to a radial load of 2884pounds...
fast please
CHAPTER 9 9.1. A ball bearing is subjected to a radial load of 2884pounds for 40% of the time and 1884pounds for the remainder of the load cycle. Speed is 1884rpm. Expected life is to be 10 years at 250 days per year and 6 hours per day. Calculate the minimum value of the basic load rating that the bearing must have. All loads are steady.
6. For the bearing with the largest radial load and without knowing the shaft diameter, what...
6. For the bearing with the largest radial load and without
knowing the shaft diameter, what would be the catalog rating for a
radially loaded ball bearing to withstand 1000 x 10e6 cycles with
90% reliability. The bearing manufacturer rates its bearing for a
million cycles.
7. A 10 mm diameter steel shaft is subject to bending stresses
only. The material has Sut = 1100 MPa and Sy = 950 MPa and a
fine-ground surface finish.
1. Determine the factor...
A 304 ball bearing carries a radial load of 667 lb and an axial load o 125 lb at 300 rpm for 50% of the time, a 600 lb radial load at 500 rpm for the remaining 25% of the time, and a 350 lb radial load at 1,000 rpm for the remaining 25% of the time. The outer ring rotates, and the loads are steady. Find the rating life based on operating 8 hours per day, and 250 days...
please explain to me step by step
4.21 A bearing is required to provide axial location and support a radial load of 940 N for a shaft of 17 mm nominal diameter spinning at 570rpm The desired life is 10 years continuous operation From the limited range available in Tables 4.7 to 4.9, select and specify an appropriate bearing justifying the choice 4.22 A bearing is required to support an equivalen radial load of 1290 N. The nominal diameter of...
A 02-series angular contact ball bearing with a 10-mm bore is
loaded with a 0.3604 kN axial load and 100 kN radial load. The
inner ring rotates at 8000 rev/min and working 2000-hour service.
For Rd = 93% and af = 1.
(a) Determine the equivalent radial load that will be
experienced by the bearing.
(b) Consider a rating rated life of 10^6 revolutions find C10
load experienced by bearing and calculate the factor of safety in
carrying the load...
Final Exam, Spring 2oTg Grade: Student Name: Problem #1 (50 point): An SKF ball bearing has an axial load F. of 500 Ibr and a radial load F, of 600 Ibr applied with inner ring rotating. The basic static load rating Co is 4250 lbr and the basic dynamic load rating Co is 7600 lb. Find the equivalent radial load Fe, and estimate the Xio life (in hours) at a speed of 600 rev/min.
Final Exam, Spring 2oTg Grade: Student...
can you please explain how to calculate the axial load for
each gear and supporting load for each bearing? thank you!
Task 1: A shaft is to be designed to support the spur pinion and helical gear shown in the figure below on two bearings spaced 700 mm center-to-center. Bearing A is a cylindrical roller bearing and has to take only radial load; bearing B has to take the thrust load produced by the helical gear and its share of...
An angular contact ball bearing with outer ring stationary is loaded with a 2,8 kN axial load and a 6,4 kN radial load. The inner ring 13. rotates at 480 revimin. Application factor is 1. Desired life is 20 kh under 90% reliability (C10=62 KN CO=36 kN). Evaluate the equivalent radial load factor (e) A) 0 273 B) 0.263 C) 0,275 D) 0.265 E) 0.277
fast please
CHAPTER 9 9.1. A ball bearing is subjected to a radial load of 2884pounds for 40% of the time and 1884pounds for the remainder of the load cycle. Speed is 1884rpm. Expected life is to be 10 years at 250 days per year and 6 hours per day. Calculate the minimum value of the basic load rating that the bearing must have. All loads are steady.
6. For the bearing with the largest radial load and without
knowing the shaft diameter, what would be the catalog rating for a
radially loaded ball bearing to withstand 1000 x 10e6 cycles with
90% reliability. The bearing manufacturer rates its bearing for a
million cycles.
7. A 10 mm diameter steel shaft is subject to bending stresses
only. The material has Sut = 1100 MPa and Sy = 950 MPa and a
fine-ground surface finish.
1. Determine the factor...
