A shaft rotating at 1440 rpm is supported by two bearings. The forces acting on each...

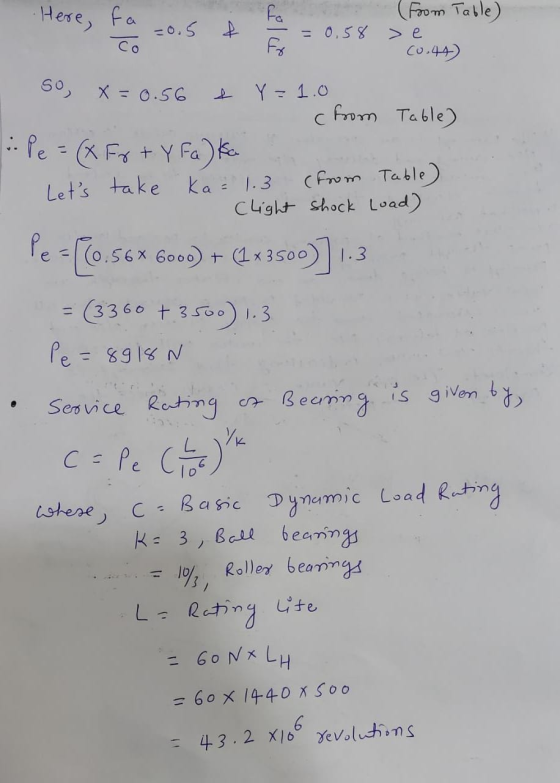

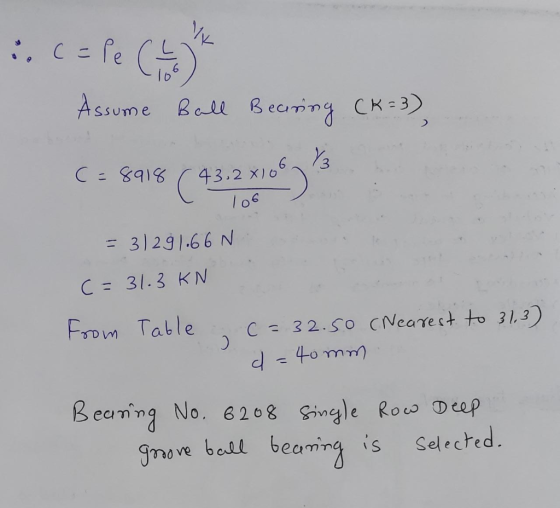

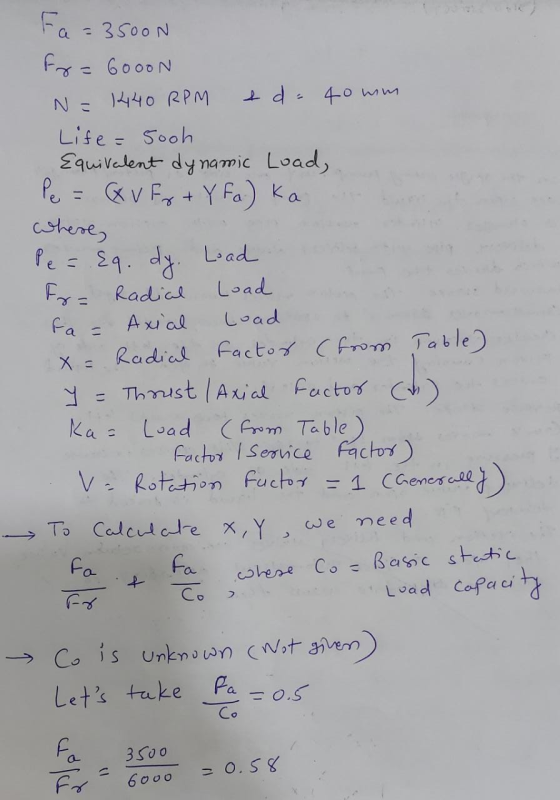

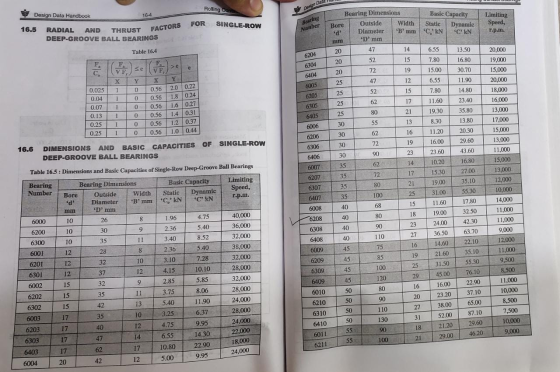

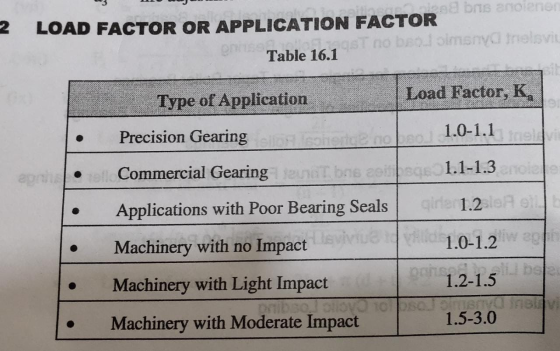

A shaft rotating at 1440 rpm is supported by two bearings. The forces acting on each bearing are 6000N radial load and 3500 N axial thrust. If the shaft diameter is 40mm and the expected life of the bearing is 500h, select a suitable bearing.
Homework Answers
Add Answer to:
A shaft rotating at 1440 rpm is supported by two
bearings. The forces acting on each...
Figure P14.28 shows two bearings supporting a 1000-rpm shaft and gear. The bearing on the left...
Figure P14.28 shows two bearings supporting a 1000-rpm shaft and gear. The bearing on the left carries a 5-kN radial load and 1-KN thrust load. The loading is borderline between "light" and "moderate" impact. The required life is 5000 hours with only 2% probability of failure. Select a 200 series radial-contact ball bearing for the left bearing. Shaft Bearing Gear FIGURE P14.28
machine elements QUESTION-3 Shaft shown in the figure is supported by A and C bearings. Bearing...
machine elements
QUESTION-3 Shaft shown in the figure is supported by A and C bearings. Bearing A has 4300 N radial and 1400 N axial force due to the tooth force of the gear wheel on the shaft. Only a radial force of 3100 N acts on bearing C. The shaft diameters are the same in the region where the A and C bearings are located and dA = dC = 35 mm The rotation speed of the spindle is...
Question 2 The shaft shown below is rotating at 650 rpm, and it receives 7.5 hp...
Question 2 The shaft shown below is rotating at 650 rpm, and it receives 7.5 hp through a flexible coupling. The power is delivered to an adjacent shaft through a single helical gear B having a normal pressure angle of 20 degrees and a helix angle of 15 degrees. The pitch diameter for the gear is 4.141 inches (De) and the Tangential (Wu), radial (W) and axial/thrust (W) are shown below on the drawing. The shaft is to be made...
The following figure shows two bearings supporting a 0.08×10^3-rpm shaft and gear. The bearing on the...
The following figure shows two bearings supporting a
0.08×10^3-rpm shaft and gear. The bearing on the left carries a
4.07kN radial load and 0.32kN thrust load. The loading is
borderline between “light” and “moderate” impact. The required life
is 4000 hours with only 2% probability of failure. What is the
required bearing capacity in kN? Solve to 2 decimal spaces. An
error of 5% is allowed for. T4 Q3.PNG
The following figure shows two bearings supporting a 0.08x10^3-rpm shaft and...
A Read aloud Draw Erase Figure P14.28 shows two bearings supporting a 1000-rpm shaft and gear....
A Read aloud Draw Erase Figure P14.28 shows two bearings supporting a 1000-rpm shaft and gear. The bearing on the left carries a 5-kN radial load and 1-KN thrust load. The loading is borderline between "light" and “moderate" impact. The required life is 5000 hours with only 2% probability of failure. Select a 200 series radial-contact ball bearing for the left bearing. Gear Shaft Bearing bo 10:22 PM 3 O Type here to search
PROBLEM 4: Calculate the diameter D of the rotating shaft, supported on each end by a...
PROBLEM 4: Calculate the diameter D of the rotating shaft, supported on each end by a radial bearing, to obtain infinite life with a safety factor of 1.2. The shaft is machined from AISI 1040 HR steel, and is subject to a bending moment caused by a static force F-4 KN. The radius r is 0.05D. The length of the shaft L 0.5 m. The shaft rotates at in 1 ㄧㄒㄨ D. In 1000 RPM. Assume full notch sensitivity q...
Figure below shows the load components acting on a helical gear mounted on a simply supported...
Figure below shows the load components acting on a helical gear
mounted on a simply
supported shaft. Bearing B takes thrust. A flexible coupling for
transmitting
torque attaches to the right end of the shaft. The left end is
free.
1-Draw load, shear force, and bending moment diagrams for the
shaft, in both the horizontal and vertical planes.
2- Identify the most critically loaded shaft cross section, and
for this location determine the diameter theoretically required for
infinite life. Assume...
System Description The system is made of a shaft with two bearings and two pulleys as...
System Description The system is made of a shaft with two bearings and two pulleys as shown in figure 1 D1 = D2 6 inches 4 inches 3 inches 120 lbf 35 lbf Axial Force N 1.5" motor shaft D1 02 Bearing I Bearing lI Pulley 2 Pulley 1 Pulley 2 Figure 1 Questions Given the following THE SHAFT IS NOT ROTATING FOR QUESTIONS 1 -5 THE AXIAL FORCE N 550 lbf THERE ARE NO FORCES ON PULLEY 1 Op=...
(5) The gear reduction unit shown has a gear that is press fit onto a cylindrical...
(5) The gear reduction unit shown has a gear that is press fit onto a cylindrical sleeve that rotates around a stationary shaft. The helical gear transmits an axial thrust load of 300 Ibf as shown in the figure. Tangential and radial loads (not shown) are also transmitted through the gear, producing radial ground reaction forces at the bearings of 900 lbf for bearing A and 650 lbf for bearing B. The desired life for each bearing is 90 kh...
The shaft in the figure below is supported on journal bearings that do not offer any resistance t...
The shaft in the figure below is supported on journal bearings that do not offer any resistance to axial load. The yield strength of the material is o",-300 MPa and the safety factor is FS-2.5 Derive an expression for the components of the stress tensor at a cross section of the shaft Neglect the shear stress due to the transverse shear forces and determine to the nearest millimeter, the smallest diameter of the shaft that will support the loading strength....
Figure P14.28 shows two bearings supporting a 1000-rpm shaft and gear. The bearing on the left carries a 5-kN radial load and 1-KN thrust load. The loading is borderline between "light" and "moderate" impact. The required life is 5000 hours with only 2% probability of failure. Select a 200 series radial-contact ball bearing for the left bearing. Shaft Bearing Gear FIGURE P14.28
machine elements
QUESTION-3 Shaft shown in the figure is supported by A and C bearings. Bearing A has 4300 N radial and 1400 N axial force due to the tooth force of the gear wheel on the shaft. Only a radial force of 3100 N acts on bearing C. The shaft diameters are the same in the region where the A and C bearings are located and dA = dC = 35 mm The rotation speed of the spindle is...
Question 2 The shaft shown below is rotating at 650 rpm, and it receives 7.5 hp through a flexible coupling. The power is delivered to an adjacent shaft through a single helical gear B having a normal pressure angle of 20 degrees and a helix angle of 15 degrees. The pitch diameter for the gear is 4.141 inches (De) and the Tangential (Wu), radial (W) and axial/thrust (W) are shown below on the drawing. The shaft is to be made...
The following figure shows two bearings supporting a
0.08×10^3-rpm shaft and gear. The bearing on the left carries a
4.07kN radial load and 0.32kN thrust load. The loading is
borderline between “light” and “moderate” impact. The required life
is 4000 hours with only 2% probability of failure. What is the
required bearing capacity in kN? Solve to 2 decimal spaces. An
error of 5% is allowed for. T4 Q3.PNG
The following figure shows two bearings supporting a 0.08x10^3-rpm shaft and...
A Read aloud Draw Erase Figure P14.28 shows two bearings supporting a 1000-rpm shaft and gear. The bearing on the left carries a 5-kN radial load and 1-KN thrust load. The loading is borderline between "light" and “moderate" impact. The required life is 5000 hours with only 2% probability of failure. Select a 200 series radial-contact ball bearing for the left bearing. Gear Shaft Bearing bo 10:22 PM 3 O Type here to search
PROBLEM 4: Calculate the diameter D of the rotating shaft, supported on each end by a radial bearing, to obtain infinite life with a safety factor of 1.2. The shaft is machined from AISI 1040 HR steel, and is subject to a bending moment caused by a static force F-4 KN. The radius r is 0.05D. The length of the shaft L 0.5 m. The shaft rotates at in 1 ㄧㄒㄨ D. In 1000 RPM. Assume full notch sensitivity q...
Figure below shows the load components acting on a helical gear
mounted on a simply
supported shaft. Bearing B takes thrust. A flexible coupling for
transmitting
torque attaches to the right end of the shaft. The left end is
free.
1-Draw load, shear force, and bending moment diagrams for the
shaft, in both the horizontal and vertical planes.
2- Identify the most critically loaded shaft cross section, and
for this location determine the diameter theoretically required for
infinite life. Assume...
System Description The system is made of a shaft with two bearings and two pulleys as shown in figure 1 D1 = D2 6 inches 4 inches 3 inches 120 lbf 35 lbf Axial Force N 1.5" motor shaft D1 02 Bearing I Bearing lI Pulley 2 Pulley 1 Pulley 2 Figure 1 Questions Given the following THE SHAFT IS NOT ROTATING FOR QUESTIONS 1 -5 THE AXIAL FORCE N 550 lbf THERE ARE NO FORCES ON PULLEY 1 Op=...
(5) The gear reduction unit shown has a gear that is press fit onto a cylindrical sleeve that rotates around a stationary shaft. The helical gear transmits an axial thrust load of 300 Ibf as shown in the figure. Tangential and radial loads (not shown) are also transmitted through the gear, producing radial ground reaction forces at the bearings of 900 lbf for bearing A and 650 lbf for bearing B. The desired life for each bearing is 90 kh...
The shaft in the figure below is supported on journal bearings that do not offer any resistance to axial load. The yield strength of the material is o",-300 MPa and the safety factor is FS-2.5 Derive an expression for the components of the stress tensor at a cross section of the shaft Neglect the shear stress due to the transverse shear forces and determine to the nearest millimeter, the smallest diameter of the shaft that will support the loading strength....
