Draw a free body diagram of a wooden block (rectangular prism) weighing 50 Kg sliding down...

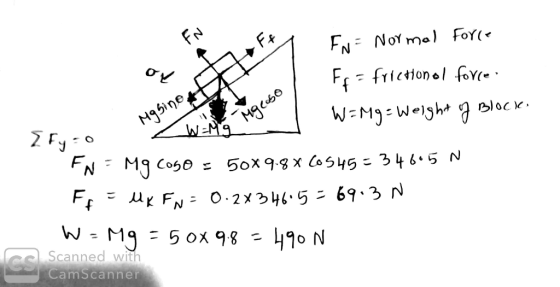

Draw a free body diagram of a wooden block (rectangular prism) weighing 50 Kg sliding down a hill side that makes an angle 45 degrees to the horizontal (the block slides due to its own weight only). The coefficient of kinetic friction between the block and the hill is 0.2. show the magnitude and directions of all the forces clearly. Make the diagram big enough so that you can show and label the forces clearly, you will not get any points if the forces are not labelled clearly.
Homework Answers
Add Answer to:
Draw a free body diagram of a wooden block (rectangular prism)
weighing 50 Kg sliding down...
