Homework Answers
Add Answer to:

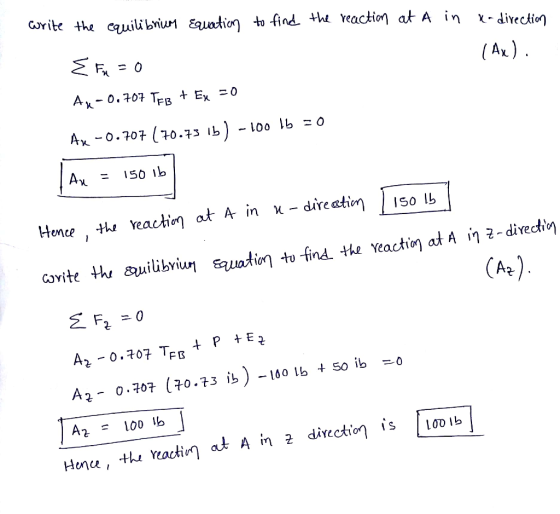

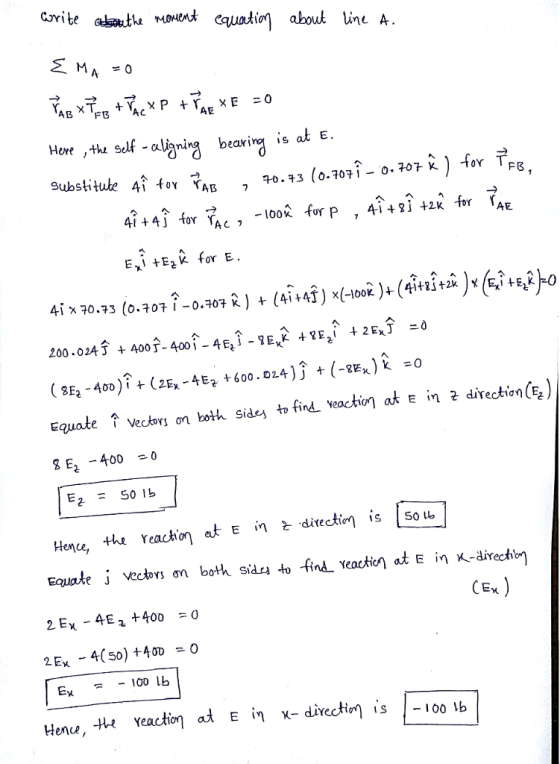

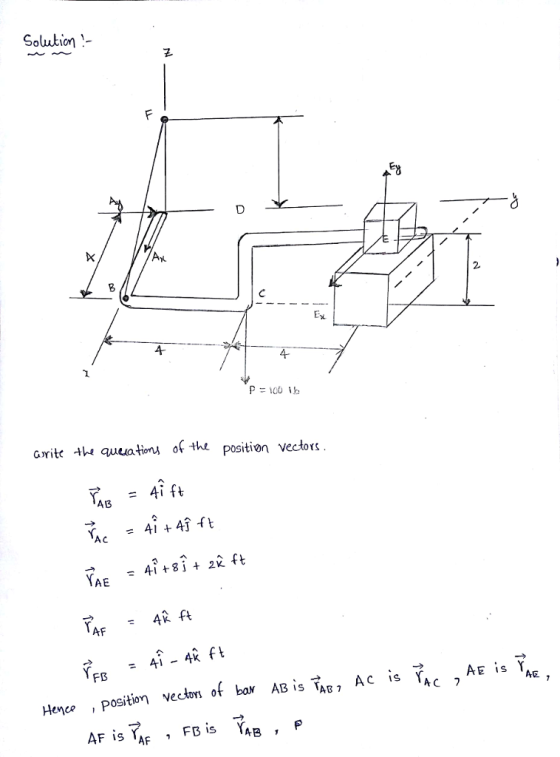

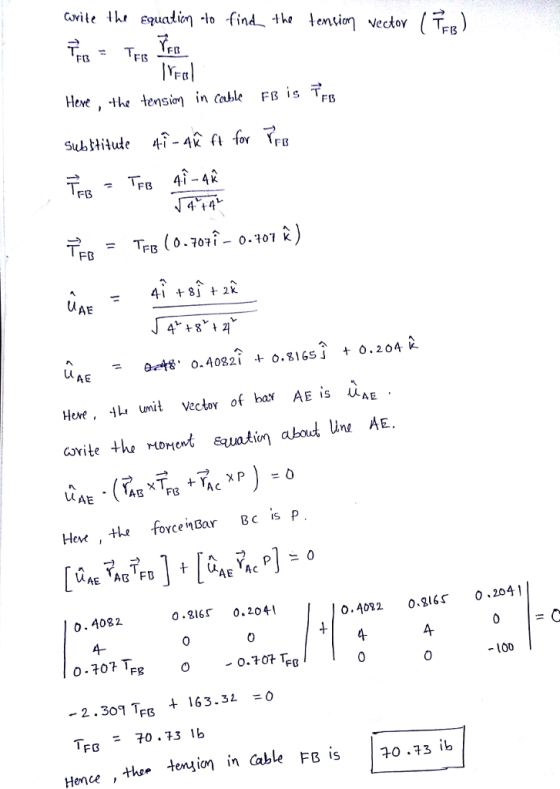

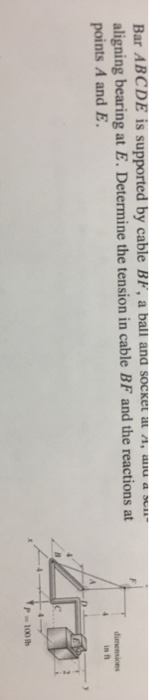

Bar ABCDE is supported by cable BF, a ball and socket at n, anu ac aligning...
Cables CE and BF along with the ball and socket at A support the rigid bar...
Cables CE and BF along with the ball and socket at A support the rigid bar ABCD. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.) z 6 m 4 m 2 ms 2 m F = -(175 NK Determine the tension in each cable and the reaction components the ball and socket joint exerts on ABCD at A in newtons. (Indicate the direction with the sign of your...
A 48-n boom is held by a ball and socket jont at Cand by hwocables BF...
A 48-n boom is held by a ball and socket jont at Cand by hwocables BF and DAE cable DAE passes around a trictionless puley at A For W 440 Ib, determine the tension in each cable and the reaction at C. (Rour place) 20 in. b (Round the final answer to the nearest whole number) The torsion in cable DAEs The tension in cable BDs The reaction at Cis b) k
1. ( 25 points) The boom AB is supported by a ball & socket joint at...
1. ( 25 points) The boom AB is supported by a ball & socket joint at A and at B with the cable BC and a link. The tension in BC = 900 N. a) Draw a complete FBD of the boom. b) Find the resultant of the tension in cable BC and the two loads, 750 lb and 500 lb. e) Find the magnitude of the resultant di Find the moment about of the force in cable BC and...
A winch for raising and lowering an 150 lb ball is supported by a ball-and-socket joint...
A winch for raising and lowering an 150 lb ball is supported by
a ball-and-socket joint at A and a smooth journal bearing at B, as
shown below. The bearing at B is oriented in such way that it only
provides force support reactions (i.e. no moment supports at
B).
A winch for raising and lowering an 150 lb ball is supported by a ball-and-socket joint at A and a smooth journal bearing at B, as shown below. The bearing...
The boom AC is supported at A by a ball- and-socket joint and by two cables...
The boom AC is supported at A by a ball- and-socket joint and by two cables BDC and CE. Cable BDC is continuous and passes over a pulley at D. Calculate the y component of reaction at A if a crate has a weight of 98.03 lb..
The bent rod ABDE is supported by ball-and-socket joints at A and E and by the...
The bent rod ABDE is supported by ball-and-socket joints at A and E and by the cable DF. If a 480-N load is applied at C as shown, determine the tension in the T(DF) = 30 mm 70 mm 90 mm 110 mm 480 N 180 mm 200 mm 160 mm
II.- The pole is supported by a "ball and socket joint" at point A (foundation) and by a lateral cable as shown. If the forces of 5kN are in the x-y plane. Determine the tension in the cable...
II.- The pole is supported by a "ball and socket joint" at
point A (foundation) and by a lateral cable as shown. If the forces
of 5kN are in the x-y plane. Determine the tension in the cable and
the reactions of the pole at point A.
5 kN 30° 5 kN 30 3 m 2 m 1.5 m .t
5 kN 30° 5 kN 30 3 m 2 m 1.5 m .t
Shaft AC is 8 ft long and is supported by a ball and socket joint at...
Shaft AC is 8 ft long and is supported by a ball and socket joint at Point A and a roller at Point C. In addition, Cable BD is also connected to the shaft at Point B. It is known that a force F (Fj - 50k) Ib is applied to the shaft as shown. Determine the maximum value of Fy so that the roller will still have contact with the floor. Include the free-body diagram 4. 3 ft 4...
400 1000 mm 2) Bar AB in the figure is supported by cables BC and BD...
400 1000 mm 2) Bar AB in the figure is supported by cables BC and BD and a ball socket support at A. Cable BC is parallel to the Z axis, while cable BD is parallel to the X axis. The 200-N weight of the bar acts at its midpoint. What are the tensions in the cables and the reactions at A 600 mm 600 A Check Answer: Tension in Cable BD equals 166.7 N -200j (N) 2
The boom AC is supported at A by a ball-and-socket joint and by two cables BDC...
The boom AC is supported at A by a ball-and-socket joint and by two cables BDC and CE. Cable BDC is continuous and passes over a pulley at D. Calculate the x-component of the reaction at A if the crate has a weight of 71 lb. 2 3 ft 3 ft 4 ft 6 ft 4 ft 8 ft
Cables CE and BF along with the ball and socket at A support the rigid bar ABCD. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.) z 6 m 4 m 2 ms 2 m F = -(175 NK Determine the tension in each cable and the reaction components the ball and socket joint exerts on ABCD at A in newtons. (Indicate the direction with the sign of your...
A 48-n boom is held by a ball and socket jont at Cand by hwocables BF and DAE cable DAE passes around a trictionless puley at A For W 440 Ib, determine the tension in each cable and the reaction at C. (Rour place) 20 in. b (Round the final answer to the nearest whole number) The torsion in cable DAEs The tension in cable BDs The reaction at Cis b) k
1. ( 25 points) The boom AB is supported by a ball & socket joint at A and at B with the cable BC and a link. The tension in BC = 900 N. a) Draw a complete FBD of the boom. b) Find the resultant of the tension in cable BC and the two loads, 750 lb and 500 lb. e) Find the magnitude of the resultant di Find the moment about of the force in cable BC and...
A winch for raising and lowering an 150 lb ball is supported by
a ball-and-socket joint at A and a smooth journal bearing at B, as
shown below. The bearing at B is oriented in such way that it only
provides force support reactions (i.e. no moment supports at
B).
A winch for raising and lowering an 150 lb ball is supported by a ball-and-socket joint at A and a smooth journal bearing at B, as shown below. The bearing...
The boom AC is supported at A by a ball- and-socket joint and by two cables BDC and CE. Cable BDC is continuous and passes over a pulley at D. Calculate the y component of reaction at A if a crate has a weight of 98.03 lb..
The bent rod ABDE is supported by ball-and-socket joints at A and E and by the cable DF. If a 480-N load is applied at C as shown, determine the tension in the T(DF) = 30 mm 70 mm 90 mm 110 mm 480 N 180 mm 200 mm 160 mm
II.- The pole is supported by a "ball and socket joint" at
point A (foundation) and by a lateral cable as shown. If the forces
of 5kN are in the x-y plane. Determine the tension in the cable and
the reactions of the pole at point A.
5 kN 30° 5 kN 30 3 m 2 m 1.5 m .t
5 kN 30° 5 kN 30 3 m 2 m 1.5 m .t
Shaft AC is 8 ft long and is supported by a ball and socket joint at Point A and a roller at Point C. In addition, Cable BD is also connected to the shaft at Point B. It is known that a force F (Fj - 50k) Ib is applied to the shaft as shown. Determine the maximum value of Fy so that the roller will still have contact with the floor. Include the free-body diagram 4. 3 ft 4...
400 1000 mm 2) Bar AB in the figure is supported by cables BC and BD and a ball socket support at A. Cable BC is parallel to the Z axis, while cable BD is parallel to the X axis. The 200-N weight of the bar acts at its midpoint. What are the tensions in the cables and the reactions at A 600 mm 600 A Check Answer: Tension in Cable BD equals 166.7 N -200j (N) 2
The boom AC is supported at A by a ball-and-socket joint and by two cables BDC and CE. Cable BDC is continuous and passes over a pulley at D. Calculate the x-component of the reaction at A if the crate has a weight of 71 lb. 2 3 ft 3 ft 4 ft 6 ft 4 ft 8 ft
