11 The following activity times are given:
Determine the following
a) Earliest start time
b) Earliest finish time
c) Latest Start Time
d) Latest finish time
e) Critical Path
Activity Completion time( in months)
1-2 5
1-3 6
1-4 2
2-5 3
2-6 1
3-5 3
4-5 0
4-7 2
5-8 9
5-7 5
7-8 4
6-9 7
8-9 3
Homework Answers

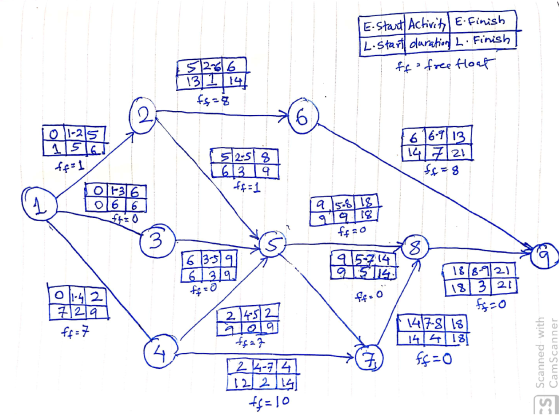

Early start, Early Finish, Latest Start and Latest Finish are included in the network diagram as per legend.
There are 2 critical paths with free float(Ff) of zero for all activities
1-3-5-7-8-9
1-3-5-8-9
