River water at a temperature of 290. K is used for cooling in an industrial process....
River water at a temperature of 290. K is used for cooling in an industrial process. The water returned to the river is at a temperature of 320. K. What percentage of the river water can be used for cooling if the river temperature is required by law to increase by no more than 10.0 K?

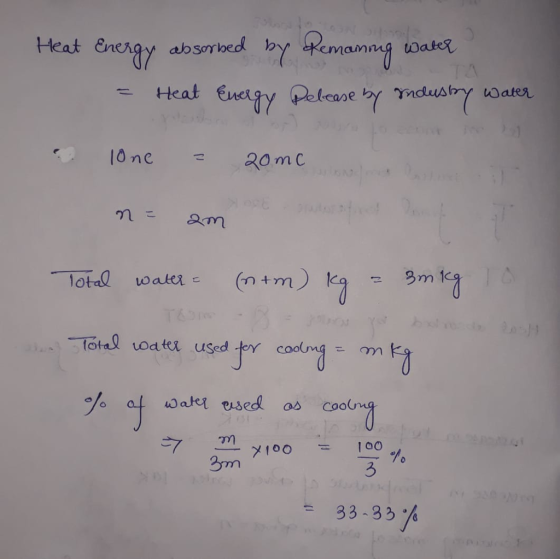

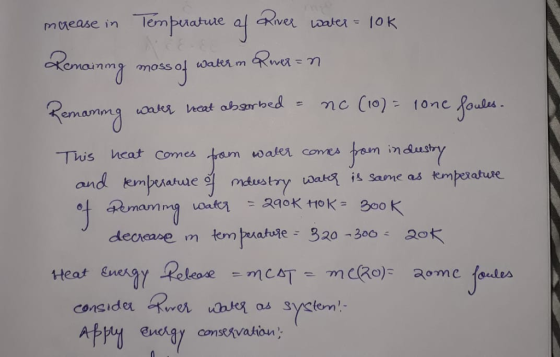

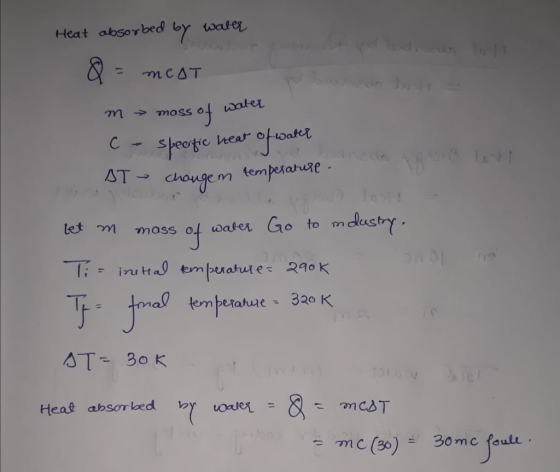

Homework Answers
Add Answer to:
River water at a temperature of 290. K is used for cooling in an
industrial process....
Water used for cooling from a power plant is discharged into a nearby river. The temperature...
Water used for cooling from a power plant is discharged into a nearby river. The temperature of the discharged water is recorded at random times. As long as the temperature is below 150o F, the river's ecosystem will be not be damaged. Hint: You want to prove that the ecosystem is safe. (1 pt.) a) State the null and alternative hypotheses. Write '≤' as '<=' and '≥' as '>='. (1 pt.) b) In context, explain what the Type I error...
Twenty [kw] of heat is to be removed from 375 [k] water flowing at 0.15 [kg/s] into the inner pipe of concentric tube heat exchanger. Cooling water enters the annulus at 290 [k] and leaves at 320...
Twenty [kw] of heat is to be removed from 375 [k] water flowing at 0.15 [kg/s] into the inner pipe of concentric tube heat exchanger. Cooling water enters the annulus at 290 [k] and leaves at 320 [k] with a flow in the opposite direction of the inner flow. The diameter of the thin- walled inner pipe is 2.5 [cm] a) b) c) Calculate the exit temperature of the hot fluid and the mass flow rate of the cold fluid...
In an industrial cooling process, water is circulated through a system. If water is pumped with...
In an industrial cooling process, water is circulated through a system. If water is pumped with a speed of 5.00 m/s under a pressure of 5.50 × 10 5 Pa from the first floor through a 3.50-cm diameter pipe, what will be the pressure on the next floor 3.80 m above in a pipe with a diameter of 2.70 cm?
Water is often used for cooling processes. Usually it is recycled and comes from cooling towers so the water is usually...
Water is often used for cooling processes. Usually it is recycled and comes from cooling towers so the water is usually only available at 80°F for cooling. Bypasses are often used for control purposes. The following is an abstraction of the cooling process of a plant. 4) (Note, the +Q's are heat generated by the system to be transferred to the cooling water, 's are removed from the cooling water) 4 Dg) Btu/min Fl 500 lb/min TI 80°F F9 =0.75...
Water is often used for cooling processes. Usually it is recycled and comes from cooling towers so the water is usually...
Water is often used for cooling processes. Usually it is recycled and comes from cooling towers so the water is usually only available at 80°F for cooling. Bypasses are often used for control purposes. The following is an abstraction of the cooling process of a plant. 8.(4) (Note, the +Q's are heat generated by the system to be transferred to the cooling water, -Q's are removed from the cooling water) 50,000 0-100.000 Btu/min Fl 500 lb/min T80°F F9-0.75 F8 If...
At an ocean-side nuclear power plant, seawater is used as part of the cooling system. This...
At an ocean-side nuclear power plant, seawater is used as part of the cooling system. This raises the temperature of the water that is discharged back into the ocean. The amount that the water temperature is raised has a uniform distribution over the interval from 10 to 25�C. (a) What is the probability that the temperature increase will be (1) less than 20 degrees C? (2) between 20 and 22C?(b) Suppose that a temperature increase of more than 18 degrees...
During a cooling process of a stainless steel plate, water at 30°C flows over this plate...
During a cooling process of a stainless steel plate, water at 30°C flows over this plate at a velocity of 0.02 m/s. The stainless steel plate (k=19 W/mK) has 1.15 meter long in the flow direction) and the plate width is 0.7 meter. The plate has a uniform surface temperature of 70°C. Determine, 1. The average friction coefficient 2. The total drag force due to friction (N) 3. The average convection heat transfer 2. coefficient (W/m K) 4. The steady...
Newton’s Law of Cooling states that the temperature of an object changes in time according to...
Newton’s Law of Cooling states that the temperature of an object changes in time according to the equation dT =k(E−T)dt where T(t) is the temperature of the object, E is the temperature of the environment surrounding the object and k is a constant that is determined by the physical properties of the object. The value k can be expressed as k = hA , ρV cp where h is the heat-transfer coefficient (a measure of how quickly heat escapes the...
In an experiment, the model used in Part A assumes a cooling process where the temperature...
In an experiment, the model used in Part A assumes a cooling process where the temperature difference between the liquid and the environment (the air in the room) gradually decreased to zero. In part B the model assumes that the temperature difference between the liquid nitrogen and the air in the room remainsconstant throughout the experiment. Explain why these assumptions are justified from your knowledge of the heat exchange processes involved in each case.
Dr. Clark designed a system capable of cooling the air of a house using water in...
Dr. Clark designed a system capable of cooling the air of a house using water in river. The main component is stainless steel pipe (k=15.1 W/mK, Di=0.15m Do=0.152m) submerged in a river with a water temperature T_fluid=17 C. The warm air from the house enters this cooling pipe at a volume flow rate 0.025 m3/s, and T_m,i=27 C. The exit temperature is expected to be T_m,o=20 C. The convection heat transfer coefficient between the pipe external surface and water is...
Twenty [kw] of heat is to be removed from 375 [k] water flowing at 0.15 [kg/s] into the inner pipe of concentric tube heat exchanger. Cooling water enters the annulus at 290 [k] and leaves at 320 [k] with a flow in the opposite direction of the inner flow. The diameter of the thin- walled inner pipe is 2.5 [cm] a) b) c) Calculate the exit temperature of the hot fluid and the mass flow rate of the cold fluid...
Water is often used for cooling processes. Usually it is recycled and comes from cooling towers so the water is usually only available at 80°F for cooling. Bypasses are often used for control purposes. The following is an abstraction of the cooling process of a plant. 4) (Note, the +Q's are heat generated by the system to be transferred to the cooling water, 's are removed from the cooling water) 4 Dg) Btu/min Fl 500 lb/min TI 80°F F9 =0.75...
Water is often used for cooling processes. Usually it is recycled and comes from cooling towers so the water is usually only available at 80°F for cooling. Bypasses are often used for control purposes. The following is an abstraction of the cooling process of a plant. 8.(4) (Note, the +Q's are heat generated by the system to be transferred to the cooling water, -Q's are removed from the cooling water) 50,000 0-100.000 Btu/min Fl 500 lb/min T80°F F9-0.75 F8 If...
During a cooling process of a stainless steel plate, water at 30°C flows over this plate at a velocity of 0.02 m/s. The stainless steel plate (k=19 W/mK) has 1.15 meter long in the flow direction) and the plate width is 0.7 meter. The plate has a uniform surface temperature of 70°C. Determine, 1. The average friction coefficient 2. The total drag force due to friction (N) 3. The average convection heat transfer 2. coefficient (W/m K) 4. The steady...
