Homework Answers

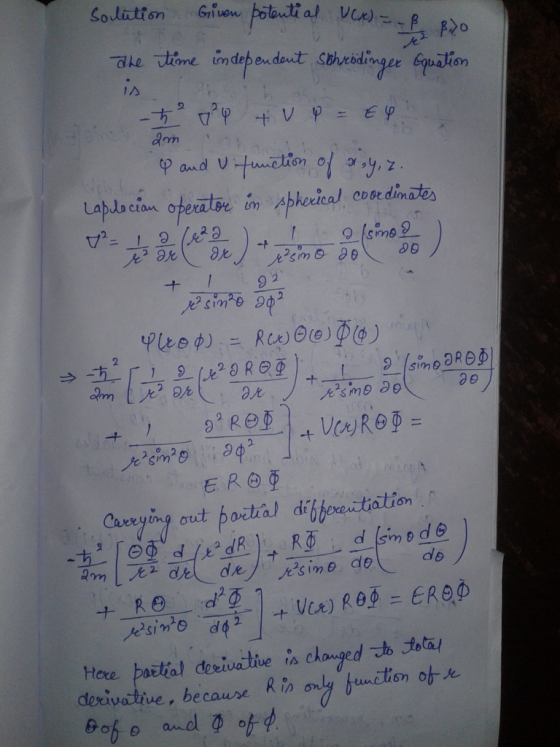

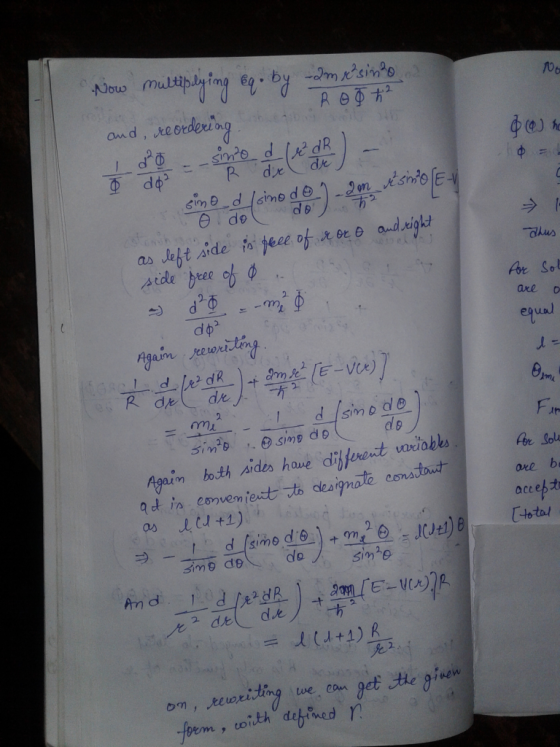

Using the property that
wavefunction can be separated into the different coordinate

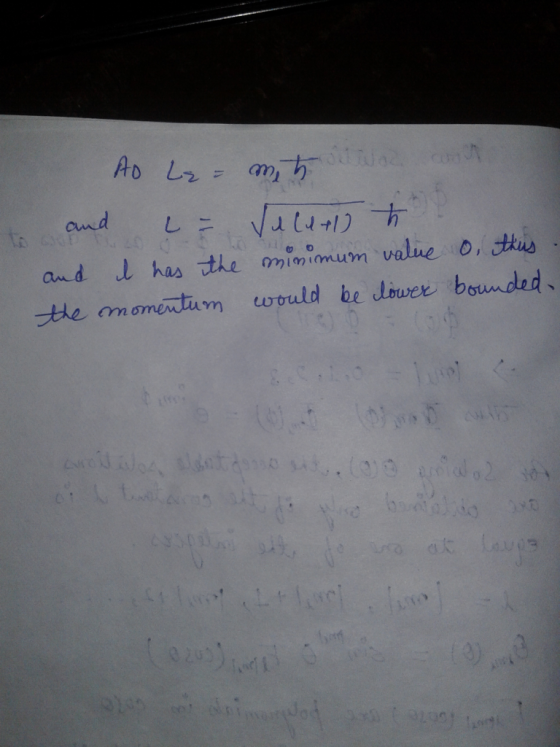

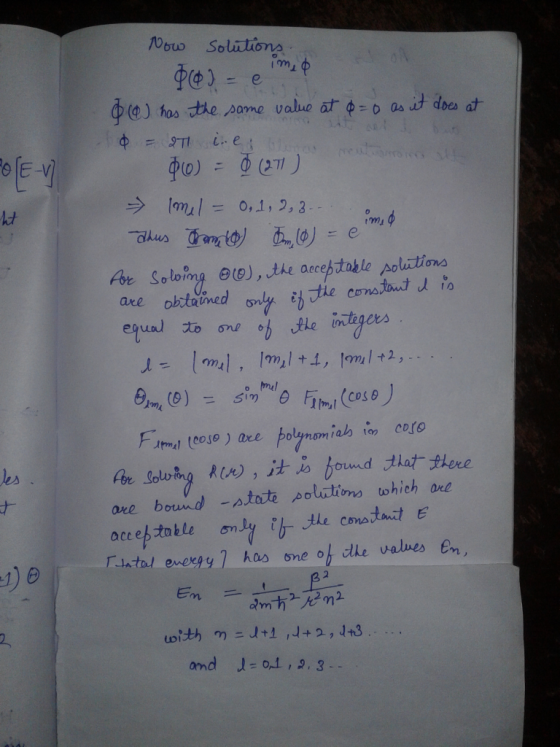

functions we can find the radial wave equation and find the values
of angular momentum.
Add Answer to:

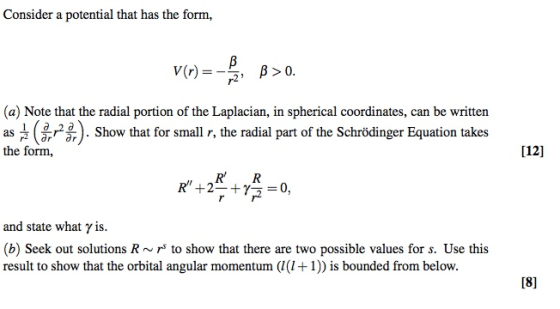

Consider a potential that has the form, V(r) =- β>0. , (a) Note that the radial...
