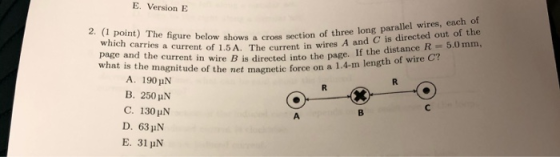

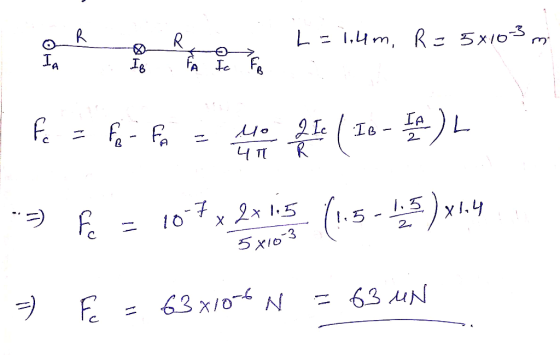

E. Version E w a cross section of three long parallel wires, each of The...
The figure below shows a cross-section of two long, straight, parallel wires, where the currents are flowing perpendicul...
The figure below shows a cross-section of two long, straight,
parallel wires, where the currents are flowing perpendicular to the
page. Wire 1 carries a current
I1
directed into the page (in the
−z
direction) and passes through the x-axis at
x = +a.
Wire 2 passes through the x-axis at
x = −2a
and carries an unknown current
I2.
The total magnetic field at the origin due to the
current-carrying wires has the magnitude
2μ0I1
(2πa)
. Note that...
shows a cross section of three parallel wires each carrying a current of 15 A. The...
shows a cross section of three parallel wires each carrying a current of 15 A. The s in wires A and C are out of the paper, while that in wire B is into the paper. The figure Q5: What is the direction of the magnetic force by A on C? a. A does not exert force on C. d. out of the page g. downward b. rightward e. into the page h. none of these c. leftward f. upward...
The figure below shows two long, parallel wires incross-section, and the currents they carry are...
The figure below shows two long, parallel wires in
cross-section, and the currents they carry are directed out of the
page. The left wire carries a current ofI1 = 2.96 A,and the right carries a current ofI2 = 3.45 A.The two wires are a distanced = 20.0 cmapart. Point P is the same distance d above
the right wire.Assume the +x-direction is to the right, and the
+y-direction is upward.A cross-sectional end view of two parallel wires carrying
current out...
11 13 x 12 The cross-section diagram shows three long, parallel wires. We will compute the...
11 13 x 12 The cross-section diagram shows three long, parallel wires. We will compute the force on a 10 m length of wire 1. Current 11 = 16 A is directed out of the page. The other two currents are 12 = 10 A, directed out of the page, and 13 = 10 A, directed into the page. The spacing) = 0.4 m. a) Draw and label the magnetic field vectors due to wires 2 and 3 (B2 and...
11 13 x 12 The cross-section diagram shows three long, parallel wires. We will compute the...
11 13 x 12 The cross-section diagram shows three long, parallel wires. We will compute the force on a 10 m length of wire 1. Current 11 = 16 A is directed out of the page. The other two currents are 12 = 10 A, directed out of the page, and 13 = 10 A, directed into the page. The spacing) = 0.4 m. a) Draw and label the magnetic field vectors due to wires 2 and 3 (B2 and...
The figure shows a cross section of three parallel wires each carrying a current of 5.0...
The figure shows a cross section of three parallel wires each carrying a current of 5.0 A out of the paper. If the distance R = 6.0 mm, what is the magnitude of the magnetic force on a 2.0-m length of any one of the wires?
PLEASE HELP!!! 8. Two long, parallel wires each carry a current I in the same direction...
PLEASE HELP!!!
8. Two long, parallel wires each
carry a current I in the same direction as shown in the figure. The
magnetic field at the point P, midway between the two wires is
________.
zero
directed into the page
directed out of the page
parallel to the wires in the same direction as the
current.
parallel to the wires, in the opposite direction as the
current.
9. A long, straight wire carries a current of 20A to the right....
Problem 1 Three long straight wires are parallel to each other and carry currents directed into...
Problem 1 Three long straight wires are parallel to each other and carry currents directed into or out of the page, as shown. Wires 1 and 2 carry a current I, and wire 3 carries a current 4. (Note: Be sure to use unit vector notation in each part) 2 2d A) Find an expression for the net magnetic field B at the origin. (10 pts.) B) Find the force on a charged particle q1.0uC passing through the origin with...
The figure below shows two long, parallel wires in cross-section, and the currents they carry are...
The figure below shows two long, parallel wires in cross-section, and the currents they carry are directed out of the page. The left wire carries a current of I, = 2.86 A, and the right carries a current of I = 3.25 A. The two wires are a distance d = 20.0 cm apart. Point P is the same distance d above the right wire. Assume the +xr-direction is to the right, and the +y-direction is upward. I2 (a) What...
Three long straight wires are parallel to each other and carry currents directed into or out...
Three long straight wires are parallel to each other and carry currents directed into or out of the page, as shown. Wires 1 and 2 carry a current I, and wire 3 carries a current 41. (Note: Be sure to use unit vector notation in each part). 2d indn rssio for th net magnaie fald B ) B) Find the force on a charged particle q-+1.0uC passing through the origin with speed 1.0 m/s directed out of the page (v-1.0k...
The figure below shows a cross-section of two long, straight,
parallel wires, where the currents are flowing perpendicular to the
page. Wire 1 carries a current
I1
directed into the page (in the
−z
direction) and passes through the x-axis at
x = +a.
Wire 2 passes through the x-axis at
x = −2a
and carries an unknown current
I2.
The total magnetic field at the origin due to the
current-carrying wires has the magnitude
2μ0I1
(2πa)
. Note that...
shows a cross section of three parallel wires each carrying a current of 15 A. The s in wires A and C are out of the paper, while that in wire B is into the paper. The figure Q5: What is the direction of the magnetic force by A on C? a. A does not exert force on C. d. out of the page g. downward b. rightward e. into the page h. none of these c. leftward f. upward...
The figure below shows two long, parallel wires in
cross-section, and the currents they carry are directed out of the
page. The left wire carries a current ofI1 = 2.96 A,and the right carries a current ofI2 = 3.45 A.The two wires are a distanced = 20.0 cmapart. Point P is the same distance d above
the right wire.Assume the +x-direction is to the right, and the
+y-direction is upward.A cross-sectional end view of two parallel wires carrying
current out...
11 13 x 12 The cross-section diagram shows three long, parallel wires. We will compute the force on a 10 m length of wire 1. Current 11 = 16 A is directed out of the page. The other two currents are 12 = 10 A, directed out of the page, and 13 = 10 A, directed into the page. The spacing) = 0.4 m. a) Draw and label the magnetic field vectors due to wires 2 and 3 (B2 and...
11 13 x 12 The cross-section diagram shows three long, parallel wires. We will compute the force on a 10 m length of wire 1. Current 11 = 16 A is directed out of the page. The other two currents are 12 = 10 A, directed out of the page, and 13 = 10 A, directed into the page. The spacing) = 0.4 m. a) Draw and label the magnetic field vectors due to wires 2 and 3 (B2 and...
PLEASE HELP!!!
8. Two long, parallel wires each
carry a current I in the same direction as shown in the figure. The
magnetic field at the point P, midway between the two wires is
________.
zero
directed into the page
directed out of the page
parallel to the wires in the same direction as the
current.
parallel to the wires, in the opposite direction as the
current.
9. A long, straight wire carries a current of 20A to the right....
Problem 1 Three long straight wires are parallel to each other and carry currents directed into or out of the page, as shown. Wires 1 and 2 carry a current I, and wire 3 carries a current 4. (Note: Be sure to use unit vector notation in each part) 2 2d A) Find an expression for the net magnetic field B at the origin. (10 pts.) B) Find the force on a charged particle q1.0uC passing through the origin with...
The figure below shows two long, parallel wires in cross-section, and the currents they carry are directed out of the page. The left wire carries a current of I, = 2.86 A, and the right carries a current of I = 3.25 A. The two wires are a distance d = 20.0 cm apart. Point P is the same distance d above the right wire. Assume the +xr-direction is to the right, and the +y-direction is upward. I2 (a) What...
Three long straight wires are parallel to each other and carry currents directed into or out of the page, as shown. Wires 1 and 2 carry a current I, and wire 3 carries a current 41. (Note: Be sure to use unit vector notation in each part). 2d indn rssio for th net magnaie fald B ) B) Find the force on a charged particle q-+1.0uC passing through the origin with speed 1.0 m/s directed out of the page (v-1.0k...
