The figure shows a cross section of three parallel wires each carrying a current of 5.0...

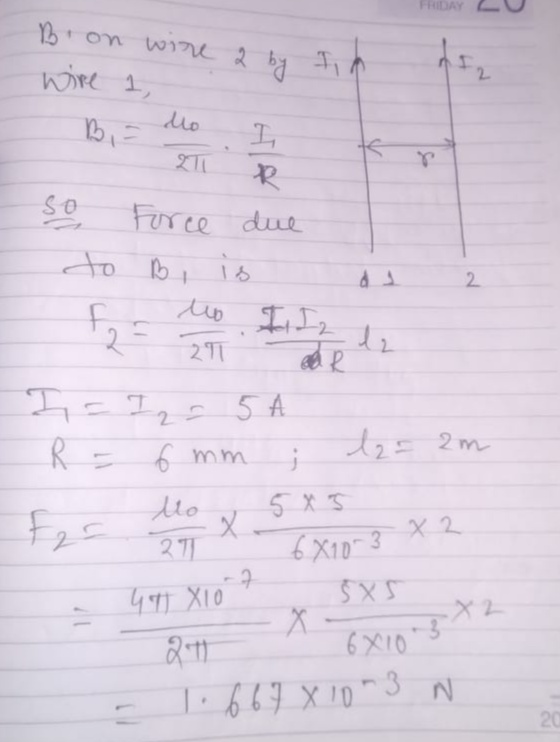

The figure shows a cross section of three parallel wires each carrying a current of 5.0 A out of the paper. If the distance R = 6.0 mm, what is the magnitude of the magnetic force on a 2.0-m length of any one of the wires?
Homework Answers
Add Answer to:
The figure shows a cross section of three parallel
wires each carrying a current of 5.0...
7. The figure shows a cross section of three parallel wires each carrying a current of 15 A. The currents in wires A...
7. The figure shows a cross section of three parallel wires each carrying a current of 15 A. The currents in wires A and B are out of the paper, while that in wire C is into the paper. If the distance R = 5.0 mm, what is the magnitude of the force on a 4.0-m length of wire A? (8 points) (-x ) R2,005 R R/2 F Il BV 76 RR-005C.00025 REE.005 +.00025 € s.25xło?? +1584.0) (1 Pet Shelgen...
shows a cross section of three parallel wires each carrying a current of 15 A. The...
shows a cross section of three parallel wires each carrying a current of 15 A. The s in wires A and C are out of the paper, while that in wire B is into the paper. The figure Q5: What is the direction of the magnetic force by A on C? a. A does not exert force on C. d. out of the page g. downward b. rightward e. into the page h. none of these c. leftward f. upward...
2 E. Version E w a cross section of three long parallel wires, each of The...
2
E. Version E w a cross section of three long parallel wires, each of The current in wires A and C is directed out of the e B is directed into the page. If the distance R = 5.0 mm, de of the net magnetic force on a 1.4-m length of wire ? 2. (1 point) The figure below shows a cross section o which carries a current of 1.5 A. The current in wires page and the current...
Figure (a) shows, in cross section, two long, parallel wires carrying current and separated by distance...
Figure (a) shows, in cross section, two long, parallel wires carrying current and separated by distance L. The ratio i_1/i_2 of their currents is 5.10; the directions of the currents are not indicated. Figure (b) shows the y component B_y of their net magnetic field along the x axis to the right of wire 2. The vertical scale is set by B_ys = 5.8 nT, and the horizontal scale is set by x_s = 20.6 cm. At what value x...
1.Two long parallel wires, each carrying a current of 9 A, lie a distance 23 cm...
1.Two long parallel wires, each carrying a current of 9 A, lie a distance 23 cm from each other. (a) What is the magnetic force per unit length exerted by one wire on the other? 2.OTwo long parallel wires, each carrying a current of 2 A, lie a distance 19 cm from each other. If the distance between the wires is doubled, (a) by what multiplicative factor is the force per unit length changed? 3. Two long parallel wires, each...
Three parallel current-carrying wires are shown in the figure below. The currents in each wire are...
Three parallel current-carrying
wires are shown in the figure below. The currents in each wire are
I1 = 0.460 A, I2 = 0.710 A, and I3 = 0.260 A. If the wires are
separated by distances r1 = 0.185 m and r2 = 0.290 m, find the net
magnetic force per unit length on the middle wire due to the other
wires. (Express your answer in vector form.)
The figure below shows two very long straight wires (in cross section) that each carry a...
The figure below shows two very long straight wires (in cross section) that each carry a current of 4.86 A directly out of the page. Distance d1 = 6.00 m and distance d2 = 5.00 m, what is the magnitude of the net magnetic field at point P, which lies on a perpendicular bisector to the wires? Number Units In the figure, a long straight wire carries a current 22.8 A and a rectangular loop carries current 2 25.9 A....
The figure below shows two very long straight wires (in cross section) that each carry a...
The figure below shows two very long straight wires (in cross section) that each carry a current of 4.50 A directly out of the page. Distance d_1 = 8.00 m and distance d_2 = 6.00 m. What is the magnitude of the net magnetic field at point P, which lies on a perpendicular bisector to the wires? Number units
The figure below shows two very long straight wires (in cross section) that each carry a current of 4.62 A directly out...
The figure below shows two very long straight wires (in cross section) that each carry a current of 4.62 A directly out of the page. Distance dı = 9.00 m and distance d2 = 6.50 m. What is the magnitude of the net magnetic field at point P, which lies on a perpendicular bisector to the wires? 19 Number Units <>
The figure below shows two long, parallel wires incross-section, and the currents they carry are...
The figure below shows two long, parallel wires in
cross-section, and the currents they carry are directed out of the
page. The left wire carries a current ofI1 = 2.96 A,and the right carries a current ofI2 = 3.45 A.The two wires are a distanced = 20.0 cmapart. Point P is the same distance d above
the right wire.Assume the +x-direction is to the right, and the
+y-direction is upward.A cross-sectional end view of two parallel wires carrying
current out...
7. The figure shows a cross section of three parallel wires each carrying a current of 15 A. The currents in wires A and B are out of the paper, while that in wire C is into the paper. If the distance R = 5.0 mm, what is the magnitude of the force on a 4.0-m length of wire A? (8 points) (-x ) R2,005 R R/2 F Il BV 76 RR-005C.00025 REE.005 +.00025 € s.25xło?? +1584.0) (1 Pet Shelgen...
shows a cross section of three parallel wires each carrying a current of 15 A. The s in wires A and C are out of the paper, while that in wire B is into the paper. The figure Q5: What is the direction of the magnetic force by A on C? a. A does not exert force on C. d. out of the page g. downward b. rightward e. into the page h. none of these c. leftward f. upward...
2
E. Version E w a cross section of three long parallel wires, each of The current in wires A and C is directed out of the e B is directed into the page. If the distance R = 5.0 mm, de of the net magnetic force on a 1.4-m length of wire ? 2. (1 point) The figure below shows a cross section o which carries a current of 1.5 A. The current in wires page and the current...
Figure (a) shows, in cross section, two long, parallel wires carrying current and separated by distance L. The ratio i_1/i_2 of their currents is 5.10; the directions of the currents are not indicated. Figure (b) shows the y component B_y of their net magnetic field along the x axis to the right of wire 2. The vertical scale is set by B_ys = 5.8 nT, and the horizontal scale is set by x_s = 20.6 cm. At what value x...
1.Two long parallel wires, each carrying a current of 9 A, lie a distance 23 cm from each other. (a) What is the magnetic force per unit length exerted by one wire on the other? 2.OTwo long parallel wires, each carrying a current of 2 A, lie a distance 19 cm from each other. If the distance between the wires is doubled, (a) by what multiplicative factor is the force per unit length changed? 3. Two long parallel wires, each...
Three parallel current-carrying
wires are shown in the figure below. The currents in each wire are
I1 = 0.460 A, I2 = 0.710 A, and I3 = 0.260 A. If the wires are
separated by distances r1 = 0.185 m and r2 = 0.290 m, find the net
magnetic force per unit length on the middle wire due to the other
wires. (Express your answer in vector form.)
The figure below shows two very long straight wires (in cross section) that each carry a current of 4.86 A directly out of the page. Distance d1 = 6.00 m and distance d2 = 5.00 m, what is the magnitude of the net magnetic field at point P, which lies on a perpendicular bisector to the wires? Number Units In the figure, a long straight wire carries a current 22.8 A and a rectangular loop carries current 2 25.9 A....
The figure below shows two very long straight wires (in cross section) that each carry a current of 4.50 A directly out of the page. Distance d_1 = 8.00 m and distance d_2 = 6.00 m. What is the magnitude of the net magnetic field at point P, which lies on a perpendicular bisector to the wires? Number units
The figure below shows two very long straight wires (in cross section) that each carry a current of 4.62 A directly out of the page. Distance dı = 9.00 m and distance d2 = 6.50 m. What is the magnitude of the net magnetic field at point P, which lies on a perpendicular bisector to the wires? 19 Number Units <>
The figure below shows two long, parallel wires in
cross-section, and the currents they carry are directed out of the
page. The left wire carries a current ofI1 = 2.96 A,and the right carries a current ofI2 = 3.45 A.The two wires are a distanced = 20.0 cmapart. Point P is the same distance d above
the right wire.Assume the +x-direction is to the right, and the
+y-direction is upward.A cross-sectional end view of two parallel wires carrying
current out...
