A 1500 hp gas turbine is used to power a helicopter shaft. For the following conditions...
A 1500 hp gas turbine is used to power a helicopter shaft.
For the following conditions
Air inlet temperature of 27 C
Compressor exit temperature of 320 C
Combustor exit temperature of 1000 C
Exhaust gas temperature of 550 C
Inlet Pressure of 100 kPa
Combustor Pressure of 800 kPa
Using the Cold Air Standard Assumptions. Calculate the thermal efficiency of the gas turbine (in percent).

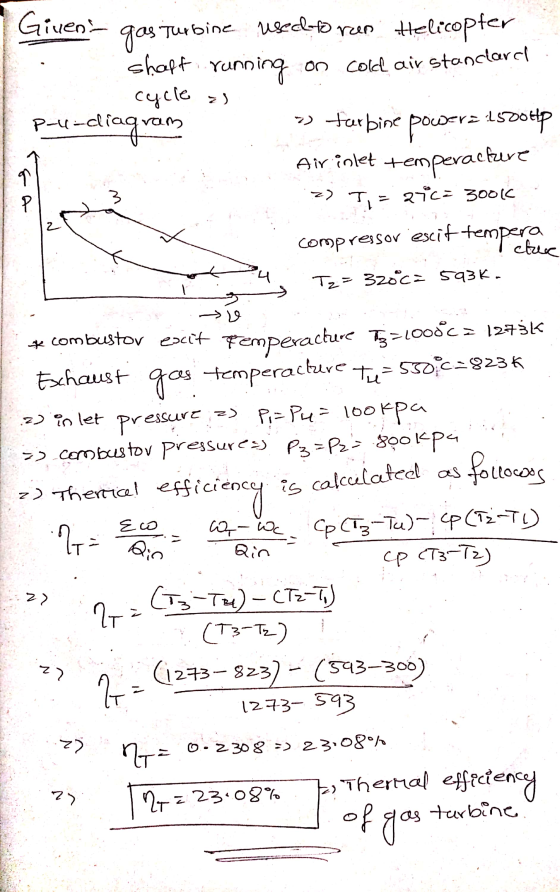

Homework Answers
Add Answer to:
A 1500 hp gas turbine is used to power a helicopter shaft.
For the following conditions...
A 1500 hp gas turbine is used to power a helicopter shaft. For the following conditions...
A 1500 hp gas turbine is used to power a helicopter shaft. For the following conditions Air inlet temperature of 27 C Compressor exit temperature of 320 C Combustor exit temperature of 1000 C Exhaust gas temperature of 550 C Inlet Pressure of 100 kPa Combustor Pressure of 800 kPa Using the Cold Air Standard Assumptions. Calculate the thermal efficiency of the gas turbine (in percent).
1. A combustion turbine possesses the following characteristics: Compressor 97 kPa and 30。C inlet conditions Pressure...
1. A combustion turbine possesses the following characteristics: Compressor 97 kPa and 30。C inlet conditions Pressure ratio: 5.5 Isentropic compression efficiency: 0.84 Combustor Outlet temperature: 1000 °C Pressure loss: 3 percent Fuel: natural gas Turbine Exit pressure: 100 kPa Isentropic expansion efficiency: 0.88 Generator Generator efficiency: 0.98 Determine the overall thermal efficiency, the heat rate, and the fuel-to-air ratio
A combined cycle gas turbine/vapor power plant uses the turbine exhaust as the energy source for...
A combined cycle gas turbine/vapor power plant uses the turbine exhaust as the energy source for the boiler. Each power system uses a single turbine. The gas power system is modeled as an ideal air-standard Brayton cycle. The vapor power system is modeled as an ideal Rankine cycle. Given specific operating conditions determine the temperature and pressure at each state, the rate of heat transfer in the boiler, the power output of each turbine, and the overall efficiency. --Given Values--...
A combined cycle gas turbine / vapor power plant uses the turbine exhaust as the energy...
A combined cycle gas turbine / vapor power plant uses the turbine exhaust as the energy source for the boiler. Each power system uses a single turbine. The gas power system is modeled as an ideal air-standard Brayton cycle. The vapor power system is modeled as an ideal Rankine cycle. Given specific operating conditions determine the temperature and pressure at each state, the rate of heat transfer in the boiler, the power output of each turbine, and the overall efficiency....
1. (10 points) A combined gas turbine-vapor power plant has a net power output of 45...
1. (10 points) A combined gas turbine-vapor power plant has a net power output of 45 MW. Air enters the compressor of the gas turbine at 100 kPa, 300 K, and is compressed to 1200 kPa. The isentropic efficiency of the compressor is 84%. The condition at the inlet to the turbine is 1200 kPa, 1400 K. Air expands through the turbine, which has an isentropic efficiency of 88%, to a pressure of 100 kPa. The air then passes through...
A gas-turbine power plant operating on an ideal Brayton cycle has a pressure ratio of 9....
A gas-turbine power plant operating on an ideal Brayton cycle has a pressure ratio of 9. The gas temperature is 438 K at the compressor inlet and 1582 K at the turbine inlet. Utilizing the air-standard assumptions (A-17 tables), determine (1) The gas temperature at the exit of the compressor K (2) The gas temperature at the exit of the turbine K (3) Work input to the compressor kJ/kg (4) Work output of the turbine kJ/kg (5) Total heat input...
A combined gas-steam power plant uses a simple gas turbine for the topping cycle and a...
A combined gas-steam power plant uses a simple gas turbine for
the topping cycle and a simple Rankine cycle for the bottoming
cycle. Atmospheric air enters the compressor at 101 kPa and 20 °C,
and the maximum gas cycle temperature is 1100 °C. The
compressor pressure ratio is 8. The gas stream leaves the heat
exchanger at the saturation temperature of the steam flowing
through the heat exchanger. Steam enters the heat exchanger at a
pressure of 6 MPa and...
Question B (15 marks) You are to analyze a combined cycle that consists of a gas (air) turbine cy...
Energy Convertion
hello, please help me quickly please please
thank you
Question B (15 marks) You are to analyze a combined cycle that consists of a gas (air) turbine cycle (top) ttom). The gas cycle has the following operating conditions: inlet pressure to compressor one bar inlet temperature-300 K operating pressure ratio-12 Maxmum allowable temperature 1150 °C adiabatic efficiency for compressor 0.83 adiabatic efficiency for turbine-0.87 - - The exhaust leaves stack at 120 °C after vaporizing water in the...
A stationary gas turbine has compressor and turbine efficiencies of 0.88 and 0.92, respectively, and a...
A stationary gas turbine has compressor and turbine efficiencies of 0.88 and 0.92, respectively, and a compressor pressure ratio of 18. The inlet temperature is 20oC and the turbine inlet temperature is 1200oC. (a) Determine the work of the compressor and the turbine, the net work, the turbine exit temperature, and the thermal efficiency. (b) What is the heat rate? (c) What is the heat rate of an air standard Brayton cycle with the same compression ratio?
A turboprop engine consists of a diffuser, compressor, combustor, turbine, and nozzle. The turbine drives a...
A turboprop engine consists of a diffuser, compressor, combustor, turbine, and nozzle. The turbine drives a propeller as well as the compressor. Air enters the diffuser with a volumetric flow rate of 63.7 m3/s at 40 kPa, 240 K, and a velocity of 180 m/s, and decelerates essentially to zero velocity. The compressor pressure ratio is 9 and the compressor has an isentropic efficiency of 85%. The turbine inlet temperature is 1240 K, and its isentropic efficiency is 85%. The...
1. A combustion turbine possesses the following characteristics: Compressor 97 kPa and 30。C inlet conditions Pressure ratio: 5.5 Isentropic compression efficiency: 0.84 Combustor Outlet temperature: 1000 °C Pressure loss: 3 percent Fuel: natural gas Turbine Exit pressure: 100 kPa Isentropic expansion efficiency: 0.88 Generator Generator efficiency: 0.98 Determine the overall thermal efficiency, the heat rate, and the fuel-to-air ratio
1. (10 points) A combined gas turbine-vapor power plant has a net power output of 45 MW. Air enters the compressor of the gas turbine at 100 kPa, 300 K, and is compressed to 1200 kPa. The isentropic efficiency of the compressor is 84%. The condition at the inlet to the turbine is 1200 kPa, 1400 K. Air expands through the turbine, which has an isentropic efficiency of 88%, to a pressure of 100 kPa. The air then passes through...
A combined gas-steam power plant uses a simple gas turbine for
the topping cycle and a simple Rankine cycle for the bottoming
cycle. Atmospheric air enters the compressor at 101 kPa and 20 °C,
and the maximum gas cycle temperature is 1100 °C. The
compressor pressure ratio is 8. The gas stream leaves the heat
exchanger at the saturation temperature of the steam flowing
through the heat exchanger. Steam enters the heat exchanger at a
pressure of 6 MPa and...
Energy Convertion
hello, please help me quickly please please
thank you
Question B (15 marks) You are to analyze a combined cycle that consists of a gas (air) turbine cycle (top) ttom). The gas cycle has the following operating conditions: inlet pressure to compressor one bar inlet temperature-300 K operating pressure ratio-12 Maxmum allowable temperature 1150 °C adiabatic efficiency for compressor 0.83 adiabatic efficiency for turbine-0.87 - - The exhaust leaves stack at 120 °C after vaporizing water in the...
