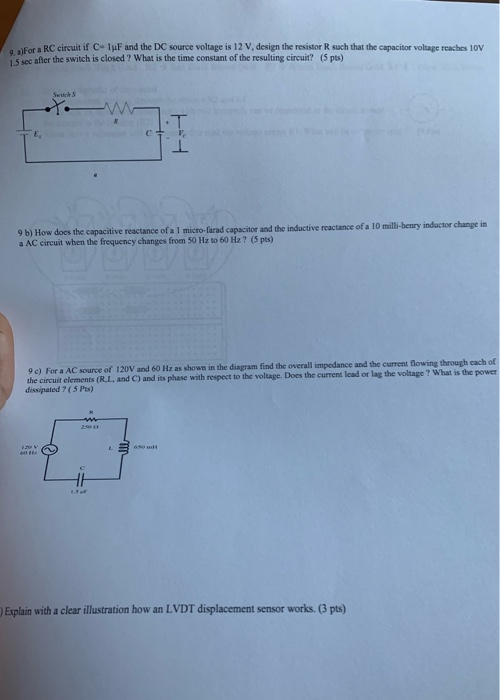

For a RC circuit if C- 1uF and the DC source voltage is 12 V, design...
In the circuit shown in the figure, the 60-Hz ac source has a rms voltage amplitude...
In the circuit shown in the figure, the 60-Hz ac source has a rms voltage amplitude of 120 V, the capacitive reactance is 600 2 the inductive reactance is 150 2 and the resistance is 450 12 a) What is the inductance Lof the inductor? (2 pts) b) What is the capacitance C of the capacitor? (2 pts) c) What is the impedance of the circuit? (1 pts) 60 Hz R
1) What is the power outlet for an rms voltage of a standard 220 V? 2)...
1) What is the power outlet for an rms voltage of a standard 220 V? 2) Consider a driven RLC series AC circuit. At frequency f1 the capacitive reactance is twice the inductive reactance. Determine frequency f2 as a function of f1 so that the inductive reactance is twice the capacitive reactance. 3) A standard 120V ac source, connecting wires, and two ideal identical transformers are available. Each transformer has a different number of turns in the two coils. How...
Question 11 1 pts The peak voltage of an AC source is 200. V. What is...
Question 11 1 pts The peak voltage of an AC source is 200. V. What is the rms voltage? O 200 V O 282 V O 141 V O 100V 1 pts Question 12 In the typical household AC voltage of 120 V, calculate the peak voltage: O 240 V O 120 V O 170 V O 85 V 1 pts Question 13 In an AC series circuit the inductive reactance is 50 and the frequency is 100 Hz. What...
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency...
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz, 180 ohm resistor, 200mH inductor, and a 900 micro-F capacitor, all wired in series. A) What is inductive reactance of the circuit? B) What is the capacitive reactance of the circuit?C) What is the impedance of the circuit? D)What is RMS current in the circuit?E) If the frequency is adjustable what frequency should you use to maximize the current in the circuit?
An AC source with an output rms voltage of 36 V at a frequency of 60...
An AC source with an output rms voltage of 36 V at a frequency of 60 Hz is connected across a 12 µF capacitor. Find (a) the capacitive reactance, (b) the rms current, and (c) the maximum current in the circuit.
HELP PLEASE?? THANK YOU ;)) Question 16 (5 points) In the circuit shown in the figure,...
HELP PLEASE?? THANK YOU ;))
Question 16 (5 points) In the circuit shown in the figure, the 60-Hz ac source has a rms voltage amplitude of 120 V, the capacitive reactance is 600 the inductive reactance is 150 and the resistance is 4502 a) What is the inductance L of the inductor? (2 pts) b) What is the capacitance C of the capacitor? (2 pts) c) What is the impedance of the circuit? (1 pts) 60 H 200- L
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz, a 180 Ohm resistor a 200 ml inductor, and a 900 micro-F capacitor, all wired in series. a) What is the inductive reactance of the circuit? b) What is the capacitive reactance of the circuit? c) What is the Impedance of the circuit? d) What is the RMS current in the circuit? e) of the frequency is adjustable, what frequency should you use to maximize the current...
QUESTION 29 An RLC circuit consists of an alternating voltage source with RMS voltage 130 V...
QUESTION 29 An RLC circuit consists of an alternating voltage source with RMS voltage 130 V and frequency 65 Hz, a 90 Ohm resistor, a 130 mH inductor, and a 200 micro-F capacitor, all wired in series. a) What is the inductive reactance of the circuit? b) What is the capacitive reactance of the circuit? c) What is the impedance of the circuit? d) What is the RMS current in the circuit? e) If the frequency is adjustable, what frequency...
a. An AC source of amplitude 10 Vmax and 500 Hz frequency is connected in series...
a. An AC source of amplitude 10 Vmax and 500 Hz frequency is connected in series with a 3 Kohm resistor and a 15 micro Farad capacitor. Draw the circuit. Determine the total current and the voltage drops across the resistor and the capacitor, respectively. b. An AC source of amplitude 10 Vmax and 5000 Hz frequency is connected in series with a 2 Kohm resistor and a 10 mH (milli Henry) inductor. Draw the circuit. Determine the total current...
A continuous AC voltage with peak voltage of 6 V and frequency f=732398 Hz is connected...
A continuous AC voltage with peak voltage of 6 V and frequency f=732398 Hz is connected with a resistor (R-220 Ω), a capacitor with C-0.1 μΕ and an an inductor with L=680 nH. What is the capacitive reactance? What is the inductive reactance? What is the impedance when all three components are connected in SERIES? What is the current when all three components are connected in SERIES? What is the impedance of the circuit when all three components are connected...
In the circuit shown in the figure, the 60-Hz ac source has a rms voltage amplitude of 120 V, the capacitive reactance is 600 2 the inductive reactance is 150 2 and the resistance is 450 12 a) What is the inductance Lof the inductor? (2 pts) b) What is the capacitance C of the capacitor? (2 pts) c) What is the impedance of the circuit? (1 pts) 60 Hz R
Question 11 1 pts The peak voltage of an AC source is 200. V. What is the rms voltage? O 200 V O 282 V O 141 V O 100V 1 pts Question 12 In the typical household AC voltage of 120 V, calculate the peak voltage: O 240 V O 120 V O 170 V O 85 V 1 pts Question 13 In an AC series circuit the inductive reactance is 50 and the frequency is 100 Hz. What...
HELP PLEASE?? THANK YOU ;))
Question 16 (5 points) In the circuit shown in the figure, the 60-Hz ac source has a rms voltage amplitude of 120 V, the capacitive reactance is 600 the inductive reactance is 150 and the resistance is 4502 a) What is the inductance L of the inductor? (2 pts) b) What is the capacitance C of the capacitor? (2 pts) c) What is the impedance of the circuit? (1 pts) 60 H 200- L
QUESTION 29 An RLC circuit consists of an alternating voltage source with RMS voltage 130 V and frequency 65 Hz, a 90 Ohm resistor, a 130 mH inductor, and a 200 micro-F capacitor, all wired in series. a) What is the inductive reactance of the circuit? b) What is the capacitive reactance of the circuit? c) What is the impedance of the circuit? d) What is the RMS current in the circuit? e) If the frequency is adjustable, what frequency...
A continuous AC voltage with peak voltage of 6 V and frequency f=732398 Hz is connected with a resistor (R-220 Ω), a capacitor with C-0.1 μΕ and an an inductor with L=680 nH. What is the capacitive reactance? What is the inductive reactance? What is the impedance when all three components are connected in SERIES? What is the current when all three components are connected in SERIES? What is the impedance of the circuit when all three components are connected...
