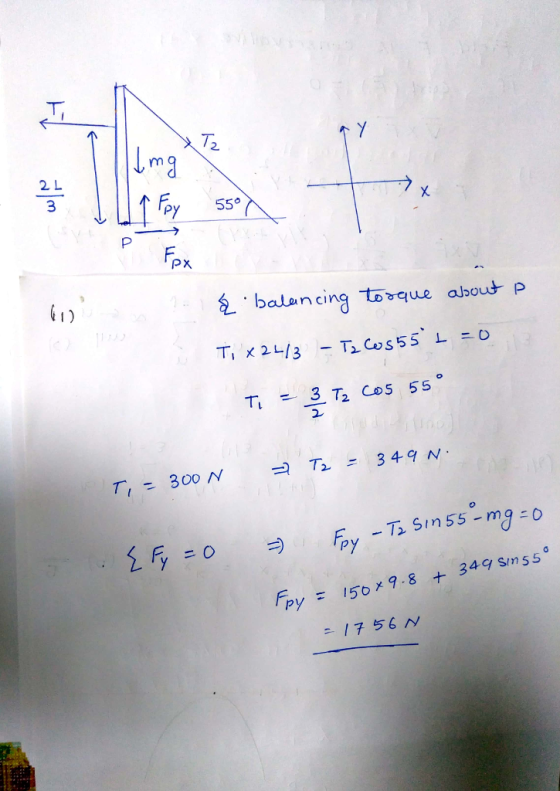

The answers are:
a. 349 N
b. 1756 N
Please show me the procedures.
Homework Answers
Add Answer to:
The answers are:
a. 349 N
b. 1756 N
Please show me the procedures.

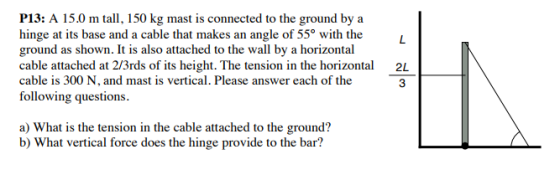

P13: A...
