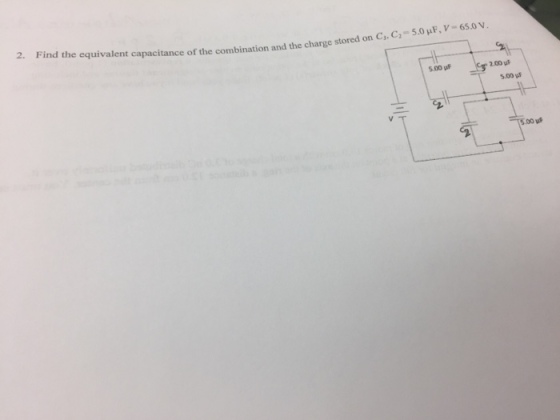

Find the equivalent capacitance of the combination and the charge stored on C_3. C_2 = 5.0...

Question

Question

science physics

Answer 1

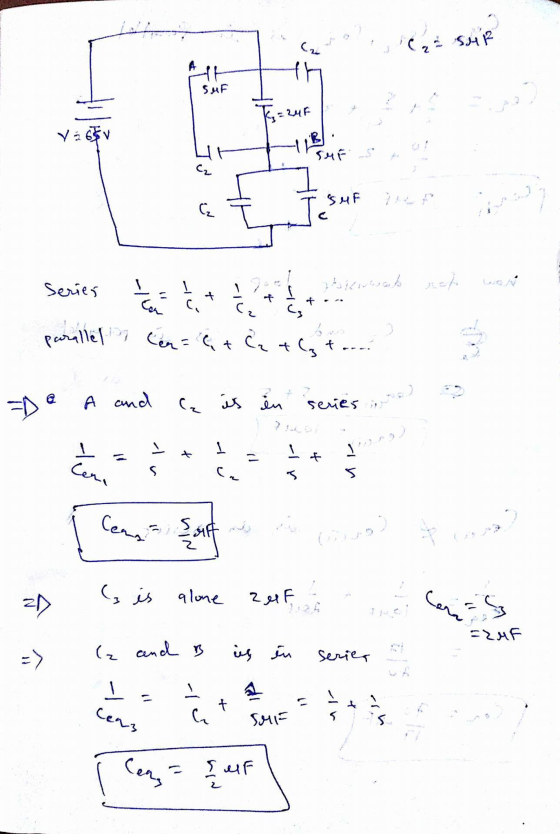

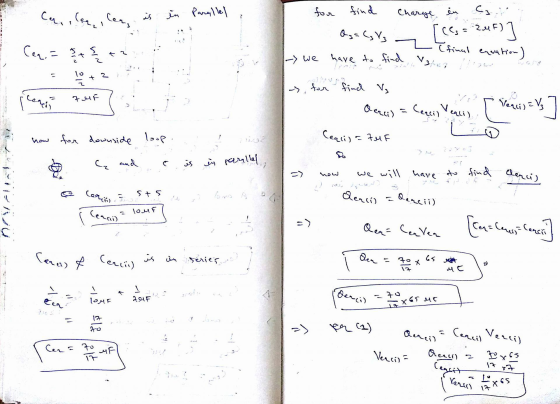

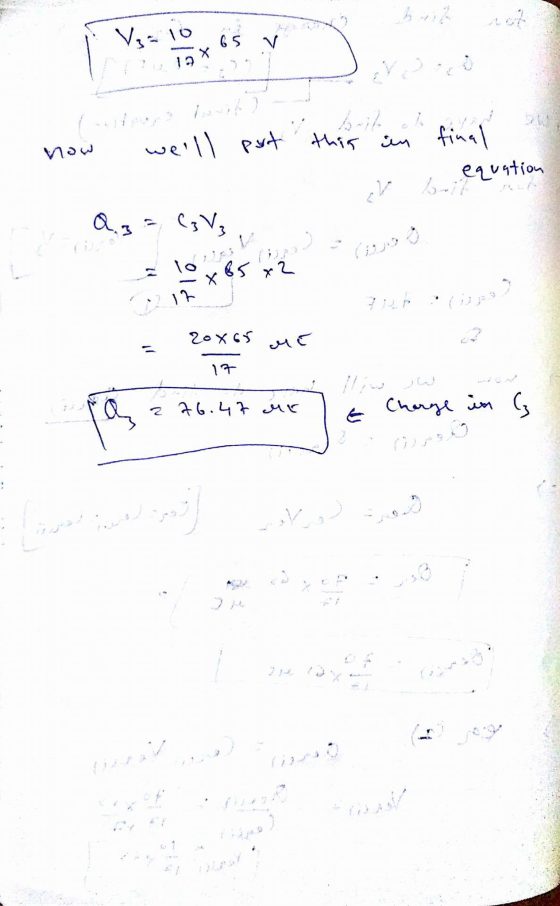

Answer #1

Answer 2

Similar Homework Help Questions

Capacitors C_1 = 128 mu F, C_2 = 318 mu F and C_3 = 366 mu...

Capacitors C_1 = 128 mu F, C_2 = 318 mu F and C_3 = 366 mu F, are placed in series with a 4.02 V batter. Find: - the equivalent capacitance of the circuit: C_TOT = mu F -the total charge absorbed by the circuit: q_TOT = mu C Capacitors C_1 = 128 mu F, C_2 = 318 F and C_3 = 366 mu F, are placed in parallel with a 4.02 V battery. Find: =the equivalent capacitance of the...
In the figure find the equivalent capacitance of the combination. Assume that C_1 = 7.53 mu...

In the figure find the equivalent capacitance of the combination. Assume that C_1 = 7.53 mu F, C_2 = 7.37 mu F, and C_3 = 4.57 mu F.
In the figure find the equivalent capacitance of the combination. Assume that C_1 = 10.7 mu...

In the figure find the equivalent capacitance of the combination. Assume that C_1 = 10.7 mu F C_2 = 7.08 mu F, and C_3 = 5.47 mu F Number _____ Units mu F

Consider the following figure. C2 Find the equivalent capacitance between points a and b for the...

Consider the following figure. C2 Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in the figure if C_1 = 6.00 mu F, C_2 = 10.0 mu F, and C_3 = 3.00 mu F. 420 Your response differs significantly from the correct answer. Rework your solution from the beginning and check each step carefully. mu F If the potential between points a and b is 60.0 V, what charge is stored on...
Find the charge stored on each capacitor in Figure 18.24 (C_1 = 28.0 mu F, C_2...

Find the charge stored on each capacitor in Figure 18.24 (C_1 = 28.0 mu F, C_2 = 7.50 mu F) when a 1.42 V battery is connected to the combination. C_1 C_2 0.300 mu F capacitor What energy is stored in each capacitor? C_1 C_2 0.300 mu F capacitor
Find the equivalent capacitance for Fig.3. If C_1 = 5 uC, C_2 = 2 uC, C_3...

Find the equivalent capacitance for Fig.3. If C_1 = 5 uC, C_2 = 2 uC, C_3 = 10 uC, C_4 = 10 uC, C_5 = 20 uc and C_4 = 2 uC.

Find the charge stored on each capacitor in Figure 18.24 (C_1 = 10.0 mu F, C_2...

Find the charge stored on each capacitor in Figure 18.24 (C_1 = 10.0 mu F, C_2 = 6.00 mu F) when a 1.54 V battery is connected to the combination. What energy is stored in each capactitor? What total energy is stored in the capacitors in Figure 18.25 (C_1 = 0.600mu F, C_2 = 22 0 mu F) if 1.80 Times 10^-4 J is stored in the 2.50 mu F capacitor?
Four capacitors C_1 = C, C_2 = 2C, C_3 = 3C, and C_4 = 4C with...

Four capacitors C_1 = C, C_2 = 2C, C_3 = 3C, and C_4 = 4C with C = 1.0 mu F are connected as shown in the figure. What is the equivalent capacitance? A) 0.1 mu F B) 0.9 mu F C) 1.1 mu F D) 7.7 mu F E) 10 mu F
Consider the system of capacitors depicted below, where C_1 = C_ (a) Calculate the equivalent capacitance...

Consider the system of capacitors depicted below, where C_1 = C_ (a) Calculate the equivalent capacitance of the system. (b) If C_2 stores a charge of Q_2 = 110 mu C, what is the potential difference between a and b? (c) How much energy is stored in C_3? (d) Suppose you now insert a slab of graphite (dielectric constant of K = 10) into C_3 while maintaining the potential difference V_ab. Calculate the potential difference across C_1 now.

Help Pleaseee! Thanks! Please show work. In the figure below, if C_1 = C_2 = 2C_3...

Help Pleaseee! Thanks! Please show work. In the figure below, if C_1 = C_2 = 2C_3 = 20.4 mu F, how much charge is stored on each capacitor when V = 45.0 V? C_1 .918E-3 C C_2 1.8E-4 C C_3 3.6E-3 C
