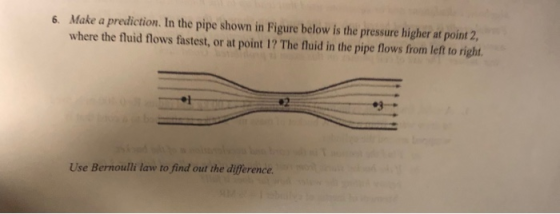

use Bernoulli law to find the difference 6. Make a prediction. In the pipe shown in...

Question

Question

use Bernoulli law to find the difference

science physics

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

16. In the pipe shown, is the pressure higher at point 2, where the fluid flows...

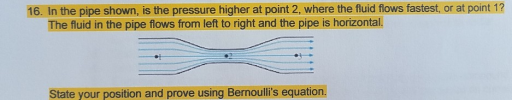

16. In the pipe shown, is the pressure higher at point 2, where the fluid flows fastest, or at point 1? The fluid in the pipe flows from left to right and the pipe is horizontal. State your position and prove using Bernoulli's equation.
Water moves through a constricted pipe in steady, ideal flow. At the lower point shown in...

Water moves through a constricted pipe in steady, ideal flow. At the lower point shown in the figure below, the pressure is 1.85 ✕ 105 Pa and the pipe radius is 2.50 cm. At the higher point located at y = 2.50 m, the pressure is 1.30 ✕ 105 Pa and the pipe radius is 1.20 cm. A pipe is open at both its left and right ends. The pipe starts at the left end, extends horizontally to the right,...
Water moves through a constricted pipe in steady, ideal flow. At the lower point shown in...

Water moves through a constricted pipe in steady, ideal flow. At the lower point shown in the figure below, the pressure is 1.70 ✕ 105 Pa and the pipe radius is 2.70 cm. At the higher point located at y = 2.50 m, the pressure is 1.30 ✕ 105 Pa and the pipe radius is 1.60 cm. A pipe is open at both its left and right ends. The pipe starts at the left end, extends horizontally to the right,...

Bernoulli equation 7. Bernoulli?s Equation. Water flows through a pipe reducer as is shown the figure....

Bernoulli equation 7. Bernoulli?s Equation. Water flows through a pipe reducer as is shown the figure. The static pressures at (1) and (2) are measured by the inverted U-tube manometer containing oil of specific gravity, SG, less than one. Determine the manometer reading, h.
3. Oil flows in the pipe shown. The orifice in the pipe has a coefficient of...

3. Oil flows in the pipe shown. The orifice in the pipe has a coefficient of discharge of 0.64. Compute the discharge of the oil in the pipe CE311 Fluid Mechanics Winter 2019, Assignment 5, Due March 1 4. Water flows steadily through the funnel shown in the figure below. Throughout most of the funnel the flow is approximately radial (along rays from O) with a velocity of V- cr where r is the radial coordinate and c is a...
QUUESTION1 Water flows through a pipe as shown in Figure 1. The losses in the pipe can be express...

QUUESTION1 Water flows through a pipe as shown in Figure 1. The losses in the pipe can be expressed as 0.025 V2 per meter length of pipe, where V is the velocity in the pipe. The length AB is 6 m and BC is 11 m, determine the discharge and the pressure at B 2m 3m 5m 20mm diameter Figure 1: Schematic of water flowing from a tank through the pipe. QUUESTION1 Water flows through a pipe as shown in...

help Fluid enters to the section of the pipe as shown in the figure below. Density...

help Fluid enters to the section of the pipe as shown in the figure below. Density and dynamic viscosity of the fluid are 1000 kg/mº and 8.90 x 10-4 Pa's respectively. A pressure of the fluid at point A is 30 kPa and diameter of the pipe is 100 mm. Find the volumetric flow rate of the fluid at B. Flow is laminar and viscous, consider the pressure loss. 4 m B 100 mm
Water flows through a pipe as shown in the figure. The pressure at points 1 and...

Water flows through a pipe as shown in the figure. The pressure at points 1 and 2 respectively is 1.80 x 105 Pa and 1.20 x 105 Pa. The radius of the pipe at points 1 and 2 respectively is 3.50 cm and 1.20 cm. If the vertical distance between points 1 and 2 is 2.75 m, determine the following. (a) speed of flow at point 1 m/s (b) speed of flow at point 2 cm/s (c) volume flow rate...
Problem 3. Consider a pipe containing a steadily flowing inviscid fluid. It has one inlet and branches into two arms so...

Problem 3. Consider a pipe containing a steadily flowing inviscid fluid. It has one inlet and branches into two arms so that there are two outlets (see Fig. 1). Flow can be considered uniform and parallel to the walls when entering and exiting the pipe Inlet Pi Outlet ρ2 A2 p, Outlet Figure 1: Flow of fluid through a "T" -junction in a pipe, shown from above (not to scale) Part A (a) The Continuity equation, as given on the...

Water moves through a constricted pipe in steady, ideal flow. At the lower point shown in...

Water moves through a constricted pipe in steady, ideal flow. At the lower point shown in the figure below, the pressure is 1.65 ✕ 105 Pa and the pipe radius is 2.50 cm. At the higher point located at y = 2.50 m, the pressure is 1.22 ✕ 105 Pa and the pipe radius is 1.20 cm (a) Find the speed of flow in the lower section. (b) Find the speed of flow in the upper section. (c) Find the...
