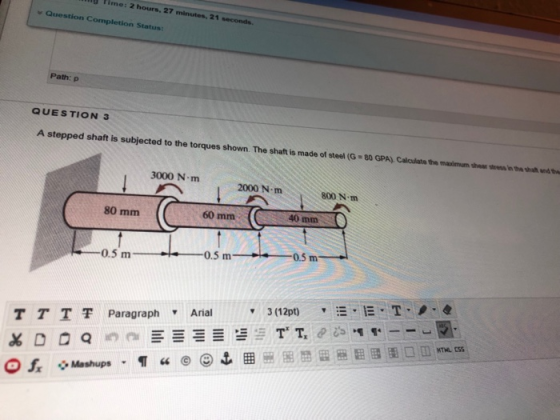

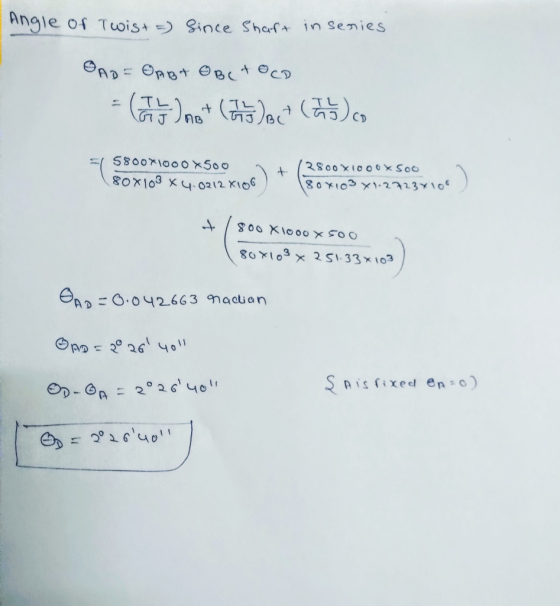

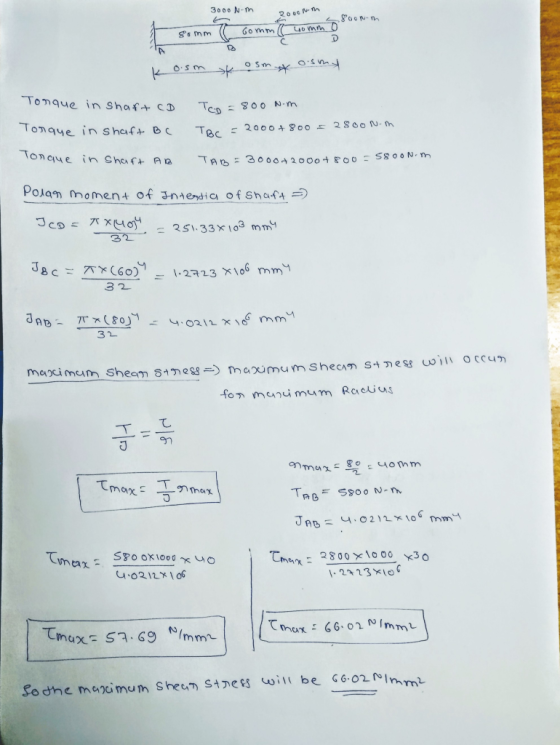

D Time: 2 hours, 27 21 Question Completion Status: Path: p QUESTION 3 A stepped shaft...
5. A stepped, circular shaft is fixed at A and subjected to torques at B, D...
5. A stepped, circular shaft is fixed at A and subjected to torques at B, D and E in the direction:s shown. The segment AB is solid with a radius of 40 mm. The segment CE is hollow with an outside radius of 30 mm and inside radius of 20 mm. LAB 0.5 m, LBc-0.5 m, LcD-0.9 m, LD 0.6 m. 1I3 a) If To equals 6 N-m, TB - 14 N-m, and the magnitude of To is three times...
The gears attached to the fixed-end steel shaft are subjected to the torques shown in the figure. If the shear modulus of elasticity is 150 GPa a determine the following: nd the shaft has a d...
The gears attached to the fixed-end steel shaft are subjected to the torques shown in the figure. If the shear modulus of elasticity is 150 GPa a determine the following: nd the shaft has a diameter of 14 mm, a. Sketch the torque diagram along the steel shaft. b. Determine the maximum shear stress at Tmax and specify location. c. Sketch the shear stress distribution along the radial line at location specified in (b). d. Determine the displacement of the...
Question: "Consider the shaft in problem 10-37. Calculate the effective internal torques resulting from the applied...
Question: "Consider the shaft in problem 10-37.
Calculate the effective internal torques resulting from the applied
torques. Your answer should feature a value for section AC, CD, and
DB."
PoF RusselLC_Hibbeler_Statics.a anics.pdf Open with ▼ 0.5 m Prob. 10-38 Prob. 10-36 10-39. The 60-mm-diameter shaft is made of 6061-T6 aluminum having an allowable shear stress of Tlow 80 MPa Determine the maximum allowable torque T. Also, find the 10-37. The splined ends and gears attached to the A992 corresponding angle...
A compound shaft drives several pulleys, as shown in Figure P6.18. Segments (1) and (2) of...
A compound shaft drives several pulleys, as shown in Figure P6.18. Segments (1) and (2) of the compound shaft are FI = 28 GPa] tubes, which have an outside diameter of 75 mm and a wall thickness of 3 mm. Segments (3) and (4) are solid 40 mm diameter steel [G = 80 GPa] shafts. The shaft lengths are a = 2.0 m, b = 0.8 m, c = 1.4 m, and d = 1.4 m. The following torques are...
this is a multi-parts question. I need all A, B, C, D. Only answer if you...
this is a multi-parts
question. I need all A, B, C, D. Only answer if you know them all.
Thx and Will ThumbUp!
Problem 3 (10 points) The stepped shaft made of a material having a shear modulus of elasticity G = 40 GPa is fixed at A and loaded by two torques T = 60 N.m and T2= 80 N.m as shown below. The shaft BC has solid circular cross-section with diameter of 50 mm and the shaft AB...
Question 21 2 pointsSave Answer State the steps of the typical processing sequence to fabricate a discrete part in the correct order. TT! 쫓 Paragraph수 Arial ;-·-·T 수 3 (12pt) Words:0 Path: p...
Question 21 2 pointsSave Answer State the steps of the typical processing sequence to fabricate a discrete part in the correct order. TT! 쫓 Paragraph수 Arial ;-·-·T 수 3 (12pt) Words:0 Path: p
Question 21 2 pointsSave Answer State the steps of the typical processing sequence to fabricate a discrete part in the correct order. TT! 쫓 Paragraph수 Arial ;-·-·T 수 3 (12pt) Words:0 Path: p
Remaining Time: 1 hour, 09 minutes, 24 seconds Question Completion Status: Path: p span QUESTION 9...
Remaining Time: 1 hour, 09 minutes, 24 seconds Question Completion Status: Path: p span QUESTION 9 Given the following declaration and assignment: declfre x How much is x.q1.2.1.2? What are the expressions related to x that will display e, g3, and 3? T T T Arial # 3(12pt) #1 T. :-,- Path: p
Question Complédon Status > Click Submit to complete this assessment. Question 2 A shaft, 49 mm...
Question Complédon Status > Click Submit to complete this assessment. Question 2 A shaft, 49 mm in diameter, is made of steel Syt - 563 MPa. It is subjected to Bending Moment 1,807 N-m and steady Torsional Moment of 195 N-m. Calculate the factor of Safety based on Maximum Shear Stress theory > Click Submit to complete this assessment.
aining Time: 2 hours, 21 minutes, 49 seconds. astion Completion Status: QUESTION 24 Consider the circuit...
aining Time: 2 hours, 21 minutes, 49 seconds. astion Completion Status: QUESTION 24 Consider the circuit below and answer the following questions. In this sketch, V=8V, RI-200, R2-300, and R3-4000 ww a) What is the equivalent resistance of the circuit? b) How much current is drawn from the battery? How much power is dissipated by R3? Please write your answers in the space below and email your work TTTT Paragraph Arial - 3120 • E- E - T-... XD09 T'...
Remaining Time: 2 hours, 47 minutes, 15 seconds. Question Completion Status: Path:p QUESTION 25 Consider the...
Remaining Time: 2 hours, 47 minutes, 15 seconds. Question Completion Status: Path:p QUESTION 25 Consider the circuit below and answer the following questions. In this sketch, V=6 V, R=3000, and C=10 micro-F. C a) What is the maximum charge the capacitor can store in this circuit? b) How much energy will the capacitor store when it holds the maximum charge? c) How long will it take to charge the capacitor to half its maximum charge? Assume it starts with no...
5. A stepped, circular shaft is fixed at A and subjected to torques at B, D and E in the direction:s shown. The segment AB is solid with a radius of 40 mm. The segment CE is hollow with an outside radius of 30 mm and inside radius of 20 mm. LAB 0.5 m, LBc-0.5 m, LcD-0.9 m, LD 0.6 m. 1I3 a) If To equals 6 N-m, TB - 14 N-m, and the magnitude of To is three times...
The gears attached to the fixed-end steel shaft are subjected to the torques shown in the figure. If the shear modulus of elasticity is 150 GPa a determine the following: nd the shaft has a diameter of 14 mm, a. Sketch the torque diagram along the steel shaft. b. Determine the maximum shear stress at Tmax and specify location. c. Sketch the shear stress distribution along the radial line at location specified in (b). d. Determine the displacement of the...
Question: "Consider the shaft in problem 10-37.
Calculate the effective internal torques resulting from the applied
torques. Your answer should feature a value for section AC, CD, and
DB."
PoF RusselLC_Hibbeler_Statics.a anics.pdf Open with ▼ 0.5 m Prob. 10-38 Prob. 10-36 10-39. The 60-mm-diameter shaft is made of 6061-T6 aluminum having an allowable shear stress of Tlow 80 MPa Determine the maximum allowable torque T. Also, find the 10-37. The splined ends and gears attached to the A992 corresponding angle...
this is a multi-parts
question. I need all A, B, C, D. Only answer if you know them all.
Thx and Will ThumbUp!
Problem 3 (10 points) The stepped shaft made of a material having a shear modulus of elasticity G = 40 GPa is fixed at A and loaded by two torques T = 60 N.m and T2= 80 N.m as shown below. The shaft BC has solid circular cross-section with diameter of 50 mm and the shaft AB...
Question 21 2 pointsSave Answer State the steps of the typical processing sequence to fabricate a discrete part in the correct order. TT! 쫓 Paragraph수 Arial ;-·-·T 수 3 (12pt) Words:0 Path: p
Question 21 2 pointsSave Answer State the steps of the typical processing sequence to fabricate a discrete part in the correct order. TT! 쫓 Paragraph수 Arial ;-·-·T 수 3 (12pt) Words:0 Path: p
Remaining Time: 1 hour, 09 minutes, 24 seconds Question Completion Status: Path: p span QUESTION 9 Given the following declaration and assignment: declfre x How much is x.q1.2.1.2? What are the expressions related to x that will display e, g3, and 3? T T T Arial # 3(12pt) #1 T. :-,- Path: p
Question Complédon Status > Click Submit to complete this assessment. Question 2 A shaft, 49 mm in diameter, is made of steel Syt - 563 MPa. It is subjected to Bending Moment 1,807 N-m and steady Torsional Moment of 195 N-m. Calculate the factor of Safety based on Maximum Shear Stress theory > Click Submit to complete this assessment.
aining Time: 2 hours, 21 minutes, 49 seconds. astion Completion Status: QUESTION 24 Consider the circuit below and answer the following questions. In this sketch, V=8V, RI-200, R2-300, and R3-4000 ww a) What is the equivalent resistance of the circuit? b) How much current is drawn from the battery? How much power is dissipated by R3? Please write your answers in the space below and email your work TTTT Paragraph Arial - 3120 • E- E - T-... XD09 T'...
Remaining Time: 2 hours, 47 minutes, 15 seconds. Question Completion Status: Path:p QUESTION 25 Consider the circuit below and answer the following questions. In this sketch, V=6 V, R=3000, and C=10 micro-F. C a) What is the maximum charge the capacitor can store in this circuit? b) How much energy will the capacitor store when it holds the maximum charge? c) How long will it take to charge the capacitor to half its maximum charge? Assume it starts with no...
