PLEASE ANSWER ALL PARTS OF THE QUESTION

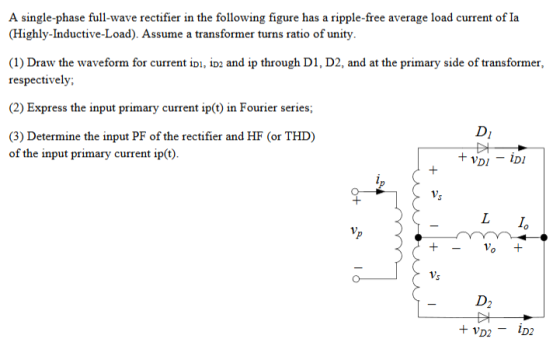

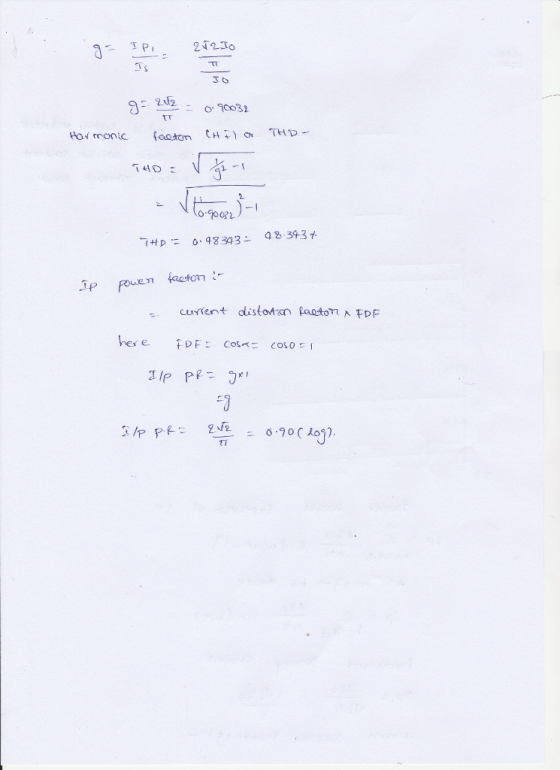

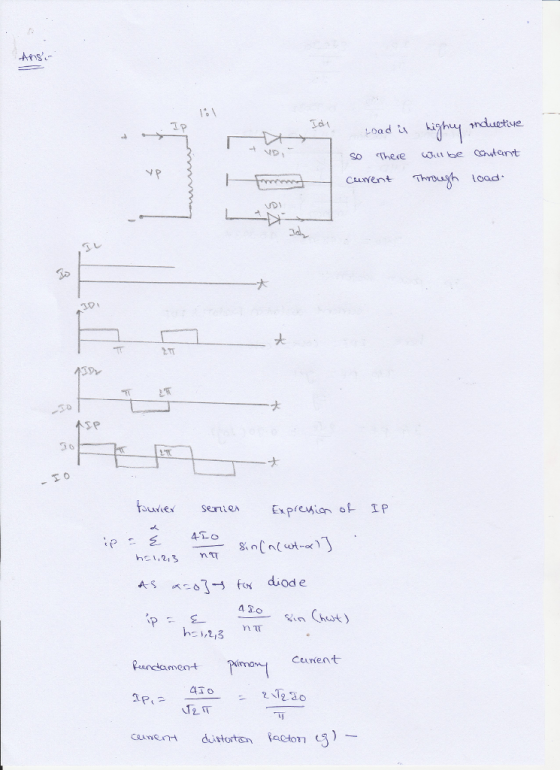

PLEASE ANSWER ALL PARTS OF THE QUESTION A single-phase full-wave rectifier in the following figure has...
a) Explain the working of the given full wave rectifier in positive and negative half cycle. (1 Mark) 50:10 D1 K Vp(RMS)-110 V OV a 00000 elle IH D2 b) Draw the input and output waveform of the given Full wave rectifier assuming D1 and D2 are germanium diodes. (2 Marks) c) Find DC load Voltage. (1 Mark) d) Find the DC load current if load resistance is 50012. (1 Mark) e) Find Vr(RMS). (1 Mark) f) Find ripple factor....
Problem 3 (40 points): A single-phase half-wave rectifier shown in the following figure has a pure resistive load of RL112. Assume Vm 311V, f- 60Hz. (1) Determine the efficiency, the FF, the RF, the TUF, the PIV of the diode, the CF of the input currernt and the input PF (2) Design a C-filter so that the ripple factor of the output voltage is less than 5%; (3) With the value of capacitor C determined from (2), calculate the average...
Consider the single-phase full-wave rectifier circuit shown below with a sinusoidal input vs 120 Vrms at 60 Hz and a load R= 250 TiD DAZ 40 AD AD ww D (a) (b) Consider adding a filter capacitor to the full-wave rectifier in Problem 3 to reduce the output ripple (a) Calculate the minimum value of capacitance required to reduce the output voltage ripple to 1 % of the average value (b) Calculate the average output current (c) Calculate the average...
can you calculate and explain why? thanks
A single-phase thyristor rectifier as 50 Hz source. The rectifier delivers a DC voltage of 150 V to a highly inductive depicted in Figure 1 is fed from a 220 V rms, 1. load with a resistive value of 10 Q. SCR, T SCR2 + is Vo SCR3 SCR T Figure 1 (a) for a delay angle component indicating its phase shift with respect to the input voltage v, Sketch the net rectifier...
i want the answer with detales
Single-Phase Controlled Rectifier Exercise Derive the expressions of the average load voltage and current in single-phase half-wave controlled rectifiers and resistive load. Draw the waveforms of supply voltage. output voltage, output current, thyristor voltage and thyristor current Exercise In a single-phase half-wave controlled rectifier and resistive kad, it is desired to get an average load voltage of 80 V. Determine the firing angle if the ac supply voltage is 230 V. If the load...
A full-wave diode rectifier supplies a 30Ω resistive load from a 400Hz, 110V single-phase AC supply. A capacitor is connected in parallel with the load. Calculate the capacitance required if the maximum peak-to-peak voltage ripple across the resistor is to be restricted to 10V. You may assume that the RC product of the resistance and capacitance will be significantly greater than the period of the AC waveform. State any other assumptions made.
Design a FULL WAVE BRIDGE RECTIFIER circuit that will:
Take 120volts ac, 60 hz, sinusoidal waveform and convert
it to a “regulated “dc value
giving 12 volts +, - 1 volt across a 2000-ohm output
load resistor with no more than 2%
ripple voltage.
You may assume:
a. An ideal power transformer as discussed in class.
b. For hand computations, you must assume a diode given by
Figure 4.8 page 185.
c. A filter capacitor sized per the textbook equation...
1. (10 PT) A three-phase bridge rectifier circuit shown in the figure phase voltage of 220 volts rms. A load of 100 Ω is connected across is supplied by a rectifier. Both the primary and secondary windings of transfor Assume the transformer has a turns ratio of unity mer are Y-connected a) 3 PTI On the top of voltage plot on next page indicate the diodes that will be conducting during different intervals of time. b) 17 PT] Plot the...
3. A full wave rectifier bridge has a input voltage of 120Cos(1207nt) and the output of the rectifier is given by |120Cos(120nt)|. Suppose this rectifier output is connected to a series and L 7.95 mH.Then, find the Fourier series of the output current 6. Also, tabulate the rms RL load with R 4 waveform up to n = phasor voltage, impedance and rms phasor current for frequency values of 0, 120 ,240, and 360 Hz
Inggris In order to fabricate a single-phase bridge type rectifier, we try to determine necessary specifications through simulation 1) Install the power model of the half wave rectification on the previous page to V1 (220V) 2) Design the transformer model to be able to output 12V The internal resistances of the primary and secondary sides are 3 Ohm, the primary inductance is 100mH, and the leakage inductance is 100 H 3) Select a capacitor with the appropriate value and measure...
