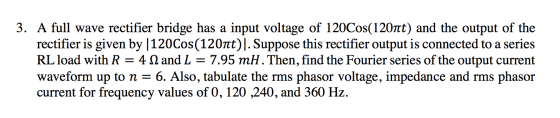

3. A full wave rectifier bridge has a input voltage of 120Cos(1207nt) and the output of...
3. For the regulated power supply shown in Figure 5-3, which is a full-wave bridge rectifier...
3. For the regulated power supply shown in Figure 5-3, which is a full-wave bridge rectifier containing ter combined with a Zener diode voltage regulator, determine the load voltage VI, load current Ir, source current Is, Zener current Iz and the ripple voltage at the input and output of the regulator, and r(p-p)y respectively, and the ripple frequency fr a fil- VL Ir. Is Iz=. (d-4)1a Ur(p-P) Is V' 1N4002GP Vout = VL + Iz IL 100 V2 120 V...
D Question 2 10 pts A three phase full-bridge rectifier draws 12-kW from a power supply that has 150-V phase-to-phase voltage. The power factor is 0.77. What is the maximum (peak) value of the cur...
D Question 2 10 pts A three phase full-bridge rectifier draws 12-kW from a power supply that has 150-V phase-to-phase voltage. The power factor is 0.77. What is the maximum (peak) value of the current delivered by the supply? 10 pts DI Question 3 A full bridge, square wave inverter supplies an RL load with R-7-Ohm and L-58-mH. The DC voltage is 90-V and the output waveform frequency is 60-Hz. What is the magnitude of the third harmonic of the...
!!!URGENT!!! 1. The full-wave controlled bridge rectifier shown has an ac input of 220 V rms...
!!!URGENT!!!
1. The full-wave controlled bridge rectifier shown has an ac input of 220 V rms at 50 Hz and a 92 load resistor. The delay angle is 45º. Determine the average current in the load, the power absorbed by the load and the source voltamperes. sino
1.Using LTSpice, design a full-wave rectifier (see your textbook) for an input voltage of 120 Vrms...
1.Using LTSpice, design a full-wave rectifier (see your textbook) for an input voltage of 120 Vrms (AC) and an output voltage of 20 V DC. Its design must include a transformer, a diode bridge (4 diodes 1N4001), a load RL = 510 Ω and a capacitor (filter) of 470 μF in parallel with the load. 2.Graph the voltages vL and vD (in LTSpice0, and determine the variation (“ripple”).
Q4. Most electronic systems need a dc voltage to work properly. The AC-to-DC power supply system ...
part g
Q4. Most electronic systems need a dc voltage to work properly. The AC-to-DC power supply system is including a transformer, a rectifier and a capacitor input filter. The AC input voltage is 110 Vrms at 60 Hz. (a) Draw the full wave bridge rectifier circuit with transformer which steps down voltage to safer and lower levels that are more suitable for use with diodes (b) Show how the capacitor input filter connects to the rectifier output in the...
In a full wave bridge rectifier, input voltage is 110sin(2pi60t) V, Vd=0.7V. The transformer turn ratio...
In a full wave bridge rectifier, input voltage is 110sin(2pi60t) V, Vd=0.7V. The transformer turn ratio is 10:1. What is the amplitude of output voltage? What is the maximum voltage across diode which is off? For load of 5kohm, calculate C for Vr of 1V.
3. Consider the full-wave bridge rectifier circuit shown below. The full-wave bridge is made using silicon...
3. Consider the full-wave bridge rectifier circuit shown below. The full-wave bridge is made using silicon diodes. 120V 15V 120 V(ms) n 60 Hz 752 Vout a. Find the maximum value of VoUT, and the voltage rating for the capacitor assuming a 50% margin of safety. b. Choose the capacitance of the filter capacitor for a peak-to-peak ripple of 1V, and determine the corresponding peak diode current. What is the frequency of the ripple voltage? c. Now suppose the filter...
2. Consider the full-wave rectifier circuit in below. The output resistance is R - 125 12,...
2. Consider the full-wave rectifier circuit in below. The output resistance is R - 125 12, each diode cut-in voltage is V, -0.7 V, and the frequency of the input signal is 60 Hz. If a filter capacitor will be connected in parallel with R. The magnitude of the peak output voltage is to be 15 V and the ripple voltage is to be no more than 0.35 V. (a) Determine the rms value of vs and (b) the required...
please show steps and list the electronic component with thier values please thank you in advance In this project an uncontrolled full-wave bridge rectifier with RL-Source load will be designed....
please show steps and list the electronic component with thier
values please
thank you in advance
In this project an uncontrolled full-wave bridge rectifier with RL-Source load will be designed. The load current is continuous and the ac source is given to be Vm 240 V at 50 Hz. Design rectifier circuit, which has the following constraints: a5) Design the circuit and calculate the parameters of the rectifier for Vde 40 Volt power absorbed by the resistor is 350 W....
a) Explain the working of the given full wave rectifier in positive and negative half cycle....
a) Explain the working of the given full wave rectifier in positive and negative half cycle. (1 Mark) 50:10 D1 K Vp(RMS)-110 V OV a 00000 elle IH D2 b) Draw the input and output waveform of the given Full wave rectifier assuming D1 and D2 are germanium diodes. (2 Marks) c) Find DC load Voltage. (1 Mark) d) Find the DC load current if load resistance is 50012. (1 Mark) e) Find Vr(RMS). (1 Mark) f) Find ripple factor....
3. For the regulated power supply shown in Figure 5-3, which is a full-wave bridge rectifier containing ter combined with a Zener diode voltage regulator, determine the load voltage VI, load current Ir, source current Is, Zener current Iz and the ripple voltage at the input and output of the regulator, and r(p-p)y respectively, and the ripple frequency fr a fil- VL Ir. Is Iz=. (d-4)1a Ur(p-P) Is V' 1N4002GP Vout = VL + Iz IL 100 V2 120 V...
D Question 2 10 pts A three phase full-bridge rectifier draws 12-kW from a power supply that has 150-V phase-to-phase voltage. The power factor is 0.77. What is the maximum (peak) value of the current delivered by the supply? 10 pts DI Question 3 A full bridge, square wave inverter supplies an RL load with R-7-Ohm and L-58-mH. The DC voltage is 90-V and the output waveform frequency is 60-Hz. What is the magnitude of the third harmonic of the...
!!!URGENT!!!
1. The full-wave controlled bridge rectifier shown has an ac input of 220 V rms at 50 Hz and a 92 load resistor. The delay angle is 45º. Determine the average current in the load, the power absorbed by the load and the source voltamperes. sino
part g
Q4. Most electronic systems need a dc voltage to work properly. The AC-to-DC power supply system is including a transformer, a rectifier and a capacitor input filter. The AC input voltage is 110 Vrms at 60 Hz. (a) Draw the full wave bridge rectifier circuit with transformer which steps down voltage to safer and lower levels that are more suitable for use with diodes (b) Show how the capacitor input filter connects to the rectifier output in the...
3. Consider the full-wave bridge rectifier circuit shown below. The full-wave bridge is made using silicon diodes. 120V 15V 120 V(ms) n 60 Hz 752 Vout a. Find the maximum value of VoUT, and the voltage rating for the capacitor assuming a 50% margin of safety. b. Choose the capacitance of the filter capacitor for a peak-to-peak ripple of 1V, and determine the corresponding peak diode current. What is the frequency of the ripple voltage? c. Now suppose the filter...
2. Consider the full-wave rectifier circuit in below. The output resistance is R - 125 12, each diode cut-in voltage is V, -0.7 V, and the frequency of the input signal is 60 Hz. If a filter capacitor will be connected in parallel with R. The magnitude of the peak output voltage is to be 15 V and the ripple voltage is to be no more than 0.35 V. (a) Determine the rms value of vs and (b) the required...
please show steps and list the electronic component with thier
values please
thank you in advance
In this project an uncontrolled full-wave bridge rectifier with RL-Source load will be designed. The load current is continuous and the ac source is given to be Vm 240 V at 50 Hz. Design rectifier circuit, which has the following constraints: a5) Design the circuit and calculate the parameters of the rectifier for Vde 40 Volt power absorbed by the resistor is 350 W....
a) Explain the working of the given full wave rectifier in positive and negative half cycle. (1 Mark) 50:10 D1 K Vp(RMS)-110 V OV a 00000 elle IH D2 b) Draw the input and output waveform of the given Full wave rectifier assuming D1 and D2 are germanium diodes. (2 Marks) c) Find DC load Voltage. (1 Mark) d) Find the DC load current if load resistance is 50012. (1 Mark) e) Find Vr(RMS). (1 Mark) f) Find ripple factor....
