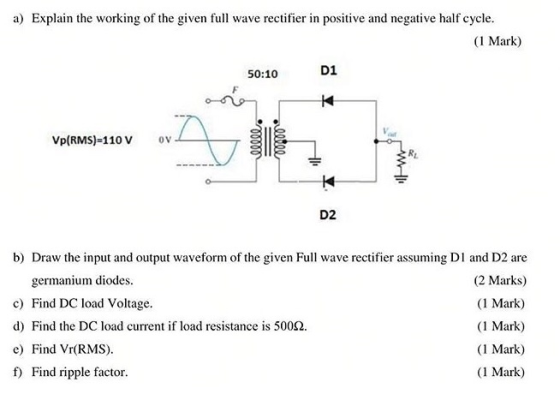

a) Explain the working of the given full wave rectifier in positive and negative half cycle. (1 Mark) 50:10 D1 K Vp(RMS)-110
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

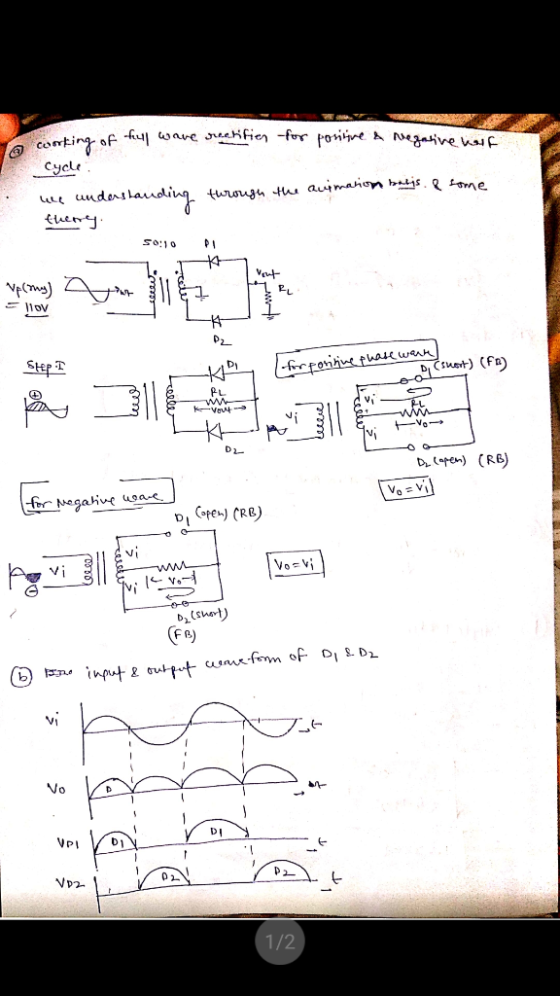

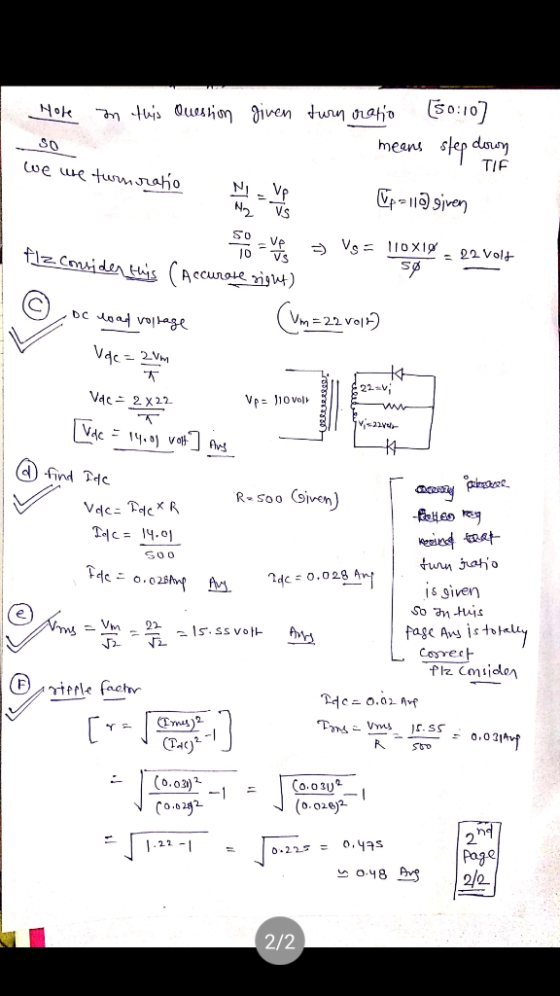

Cycle To working of full ware rectifier for positive & negative half we understanding through the animations bags & some therNoe in this Question given turn oratio (50:10] means step down TIE 30 we ure turnratio Upallo given flz consider this (AccuraDear student , i have solved all question..if u want theory of full wave rectifier working than plz do comment .i will give provide written page ..but i have showing through the animation how work of full wave rectifier in positive wave & also negative wave .if any confustion than do comments. Best of luck

0 0
Add a comment
Know the answer?
Add Answer to:
a) Explain the working of the given full wave rectifier in positive and negative half cycle....
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • unfiltered full wave rectifier Find average DC output voltage supplied to the load Find ripple factor...

    unfiltered full wave rectifier Find average DC output voltage supplied to the load Find ripple factor Find average VDC output voltage supplied to the load er. D1 T1 VPR Load 120V D2 120V: 36 VCT er. D1 T1 VPR Load 120V D2 120V: 36 VCT

  • PLEASE ANSWER ALL PARTS OF THE QUESTION A single-phase full-wave rectifier in the following figure has...

    PLEASE ANSWER ALL PARTS OF THE QUESTION A single-phase full-wave rectifier in the following figure has a ripple-free average load current of Ia (Highly-Inductive-Load). Assume a transformer turns ratio of unity. (1) Draw the waveform for current ipi, io2 and ip through D1, D2, and at the primary side of transformer, respectively; (2) Express the input primary current ip() in Fourier series (3) Determine the input PF of the rectifier and HF (or THD) of the input primary current ip(t)....

  • Consider the full-wave rectifier circuit below. Use a constant voltage drop model for the diodes with...

    Consider the full-wave rectifier circuit below. Use a constant voltage drop model for the diodes with VD 1. 0.7 V. Let v": 10 sin(2n(2000 and RI-100Q. (6 pt) Calelae the average vales of oun uinege D1 D4 V1 R1 with respect to time or angle. out b. (2+3 pts) A capacitor is placed across RI to reduce the ripple to D3 D2 20 mVp-p. Find the capacitor value. (2+3 pts) Calculate the approximate average Vout value assuming a 20 m...

  • Q5) Half-wave rectifier given below has an operating frequency of 120 Hz, while the transformer o...

    Q5) Half-wave rectifier given below has an operating frequency of 120 Hz, while the transformer output voltage is 7.2 Vrms a) What is the rms value of the output voltage (V_OUT), if diode has an ON voltage of 1V? b) Minimum value of C to maintain the ripple voltage less than 0.35V, when R is 1 ohm? c) Draw thews and VOUT voltage waveform assuming vs_Ypsinωt D1 V S V OUT Q5) Half-wave rectifier given below has an operating frequency...

  • Question addressed that I need to choose a value for the capacitor. THANKS 2) Diode full-wave...

    Question addressed that I need to choose a value for the capacitor. THANKS 2) Diode full-wave rectifier Vpeak T/2 T A) when placed in parallel with the 10 kn load resistor, will result in a peak-to-peak ripple voltage that is less than 5% of the DC output voltage (SEE eqn. 4.33). What ripple percentage do you expect with this capacitor? Sketch the output waveform D1 Part2 D1N4148 R1 10k 120Vrms60Hz 12.6 Vms D1N4148 D2 +

  • Q4. Most electronic systems need a dc voltage to work properly. The AC-to-DC power supply system ...

    part g Q4. Most electronic systems need a dc voltage to work properly. The AC-to-DC power supply system is including a transformer, a rectifier and a capacitor input filter. The AC input voltage is 110 Vrms at 60 Hz. (a) Draw the full wave bridge rectifier circuit with transformer which steps down voltage to safer and lower levels that are more suitable for use with diodes (b) Show how the capacitor input filter connects to the rectifier output in the...

  • 1. Power supply (ac to dc) design. [10 pts.] Design a full-wave bridge rectifier circuit to deliv...

    1. Power supply (ac to dc) design. [10 pts.] Design a full-wave bridge rectifier circuit to deliver 10 volts dc with less than 0.1 volt (peak to peak) ripple into a load drawing up to 10 mA. (a) Choose the appropriate ac input voltage from the transformer secondary assuming the usual voltage drops for silicon diodes. (b) Determine the correct capacitor value to ensure the specified ripple in your calculation (c) What fuse value should you select for the primary...

  • 3. A full wave rectifier bridge has a input voltage of 120Cos(1207nt) and the output of...

    3. A full wave rectifier bridge has a input voltage of 120Cos(1207nt) and the output of the rectifier is given by |120Cos(120nt)|. Suppose this rectifier output is connected to a series and L 7.95 mH.Then, find the Fourier series of the output current 6. Also, tabulate the rms RL load with R 4 waveform up to n = phasor voltage, impedance and rms phasor current for frequency values of 0, 120 ,240, and 360 Hz

  • 1.Using LTSpice, design a full-wave rectifier (see your textbook) for an input voltage of 120 Vrms...

    1.Using LTSpice, design a full-wave rectifier (see your textbook) for an input voltage of 120 Vrms (AC) and an output voltage of 20 V DC. Its design must include a transformer, a diode bridge (4 diodes 1N4001), a load RL = 510 Ω and a capacitor (filter) of 470 μF in parallel with the load. 2.Graph the voltages vL and vD (in LTSpice0, and determine the variation (“ripple”).

  • Design a FULL WAVE BRIDGE RECTIFIER circuit that will: Take 120volts ac, 60 hz, sinusoidal waveform...

    Design a FULL WAVE BRIDGE RECTIFIER circuit that will: Take 120volts ac, 60 hz, sinusoidal waveform and convert it to a “regulated “dc value giving 12 volts +, - 1 volt across a 2000-ohm output load resistor with no more than 2% ripple voltage. You may assume: a. An ideal power transformer as discussed in class. b. For hand computations, you must assume a diode given by Figure 4.8 page 185. c. A filter capacitor sized per the textbook equation...
