Homework Answers
Add Answer to:

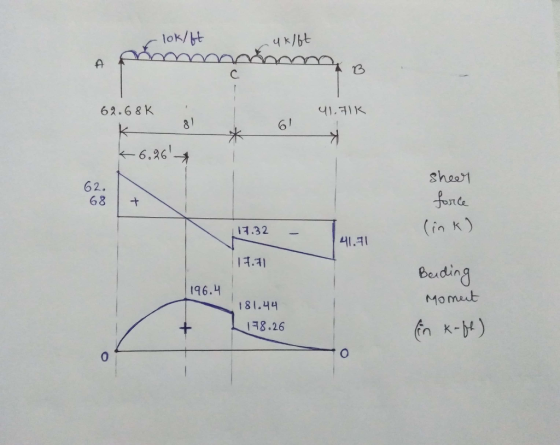

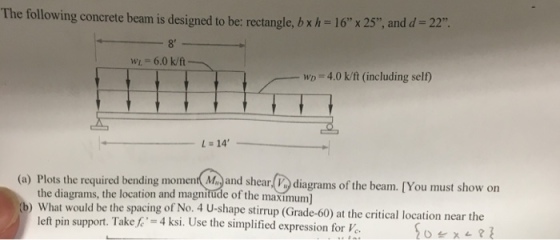

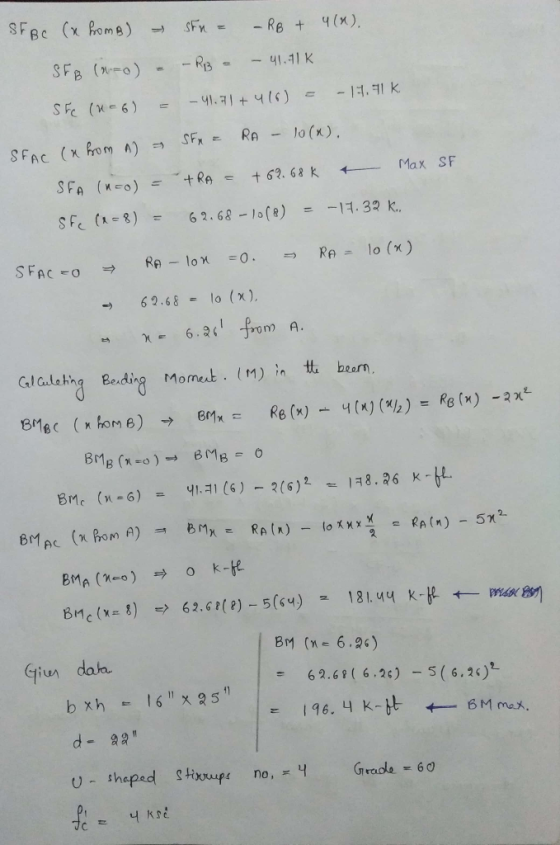

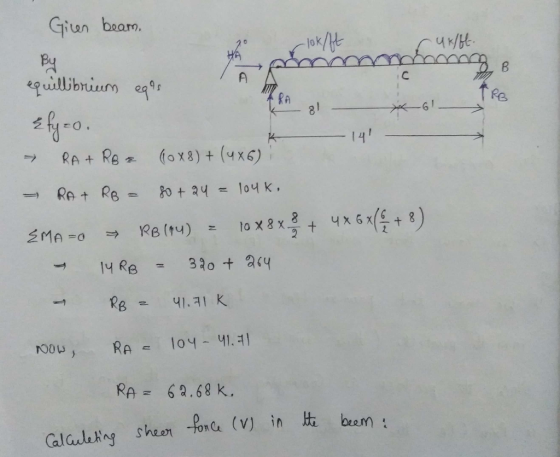

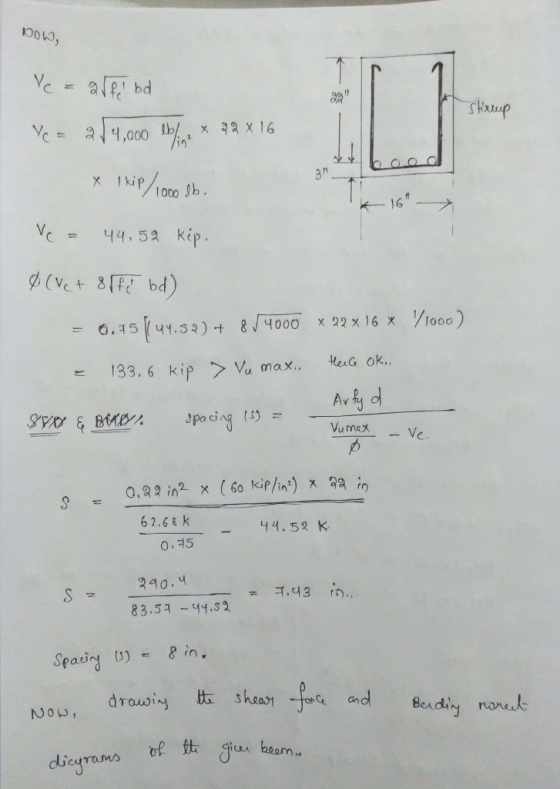

The following concrete beam is designed to be: rectangle, b x h 16" x 25" and...
Problem 2 (25 points) A rectangular reinforced concrete beam has a width b-15 inches and effecti...
Problem 2 (25 points) A rectangular reinforced concrete beam has a width b-15 inches and effecti Concrete com ve depth d-24 inches. orcement fy- 60 ksi. imate load - 6 k/R pressive strength fe -4,000 psi and yield stress of steel reinf The beam is simply supported and subjected to a uniformly distributed ulti that includes the weight of the beam. Span is 28 feet. Assume interior exposure. s and show the proposed shear reinforcement Design the beam for shear...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips at mid-point of the beam and a uniformly-distributed load of 4 kips/ft over the entire span. Given: (a) The breadth of the beam is 18 inches. (b) Concrete compressive strength, fc, is 3500 psi. (c) Rebar is Grade 40 steel i) Determine the maximum moment and maximum shear acting on the beam. ii) Determine the minimum effective depth 'd' of the beam section (rounded...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips at mid-point of the beam and a uniformly-distributed load of 4 kips/ft over the entire span. Given: (a) The breadth of the beam is 18 inches. (b) Concrete compressive strength, f 'c, is 3500 psi. (c) Rebar is Grade 40 steel i) Determine the maximum moment and maximum shear acting on the beam. ii) Determine the minimum effective depth 'd' of the beam section...
Design a reinforced concrete beam that has a rectangular cross section with a width b =...
Design a reinforced concrete beam that has a rectangular cross section with a width b = 24 in. The depth h is limited by architectural reasons to 16 in. It has to carry a factored moment Mu = 360 kip- ft. including the self-weight. The design should satisfy ACI 318 for tension controlled members. Use Grade 60 steel and a specified concrete compressive strength = 4,000 psi. Determine the flexural reinforcement for the beam, and use compression steel if needed....
4) A 100 foot long simply-supported bridge girder supports the unfactored loads shown in the figure....
4) A 100 foot long simply-supported bridge girder supports the unfactored loads shown in the figure. The uniformly distributed dead load, wD, includes the self weight of the girder, and is constant along the full beam length. Concentrated live loads, PL, are applied as shown in the figure. a) Draw factored shear force and factored bending moment diagrams in the spaces provided. Show magnitudes at locations A, B, C, D and E on each diagram.(8) PL = 50k PL-50k WD-2.5...
Reinforced concrete Problem #1 (40 points): A beam with x-section shown in the figure is made...
Reinforced concrete
Problem #1 (40 points): A beam with x-section shown in the figure is made out of concrete with compressive strength fc = 4000 psi and the steel reinfrocemnt is of Grade 60 (fy 60000psi). Determine 1 The maximum compressive stress in the concrete f and the tensils stress in the steel , if the section is subjected to a bending moment of 130 ft-k (assume n 8) N.A._ 23" 23-х 4 #10 (5.06 in. 3" 18"
15 points 9. A rectangular concrete beam of width b=24 in. is limited by architectural considerations...
15 points 9. A rectangular concrete beam of width b=24 in. is limited by architectural considerations to a maximum total depth h=16 in. It must carry a total factored load moment Mu 400 k-ft. Design the flexural reinforcement for this member, using compression steel if necessary. Allow 3-in, to the center of the bars from the compression or tension face of the beam. Material strengths are fy=60 ksi and fc=4 ksi. Select reinforcement to provide the needed areas, complete necessary...
STANDARD VIEW PRINTER VERSION BACK P8.037 GO Multipart The beam shown in Figure P8.37 will be...
STANDARD VIEW PRINTER VERSION BACK P8.037 GO Multipart The beam shown in Figure P8.37 will be constructed from a standard steel w shape using an allowable bending stress of 22 ksi. Assume Po=8.0 kips, Pc-13.5 kips, Po 4.0 kips and a-5 ft (a) Develop a list of five acceptable shapes that could be used for this beam. On this list, include the most economical W10, w12, w14, W16, and W18 shapes (b) Select the most economical W shape for this...
3. A 16-foot-long single overhang steel beam is loaded as shown. Assuming a W8 x 35...
3. A 16-foot-long single overhang steel beam is loaded as shown. Assuming a W8 x 35 section, determine the maximum bending stress developed. (A992 steel, Fb-30 ksi) (25 points) Gk INSTRUCTIONS For PROBLEM do the following steps: 1. Show ALL your work 2. Draw appropriately labeled FBDs 3. Use appropriate segments to develop expressions for the shear force and bending moment. diagrams in a standard format the required stresses in the critical points in the 4. Draw the shear force...
Please answer question 3 parts a,b,c thank you Reinforced Concrete HW 3. (40 pts) Analyze the...
Please answer question 3 parts a,b,c thank you
Reinforced Concrete HW
3. (40 pts) Analyze the following statically determinate frame by hand and clearly draw the shear force, axial force, and bending moment diagrams indicating relevant (maximum and minimum) values for each of the following load cases: a) Uniform dead load (qo) applied on the beam – must add beam self-weight (concrete) to this value. b) Uniform live load (q) applied on the beam. c) Horizontal wind force (H). H=...
Problem 2 (25 points) A rectangular reinforced concrete beam has a width b-15 inches and effecti Concrete com ve depth d-24 inches. orcement fy- 60 ksi. imate load - 6 k/R pressive strength fe -4,000 psi and yield stress of steel reinf The beam is simply supported and subjected to a uniformly distributed ulti that includes the weight of the beam. Span is 28 feet. Assume interior exposure. s and show the proposed shear reinforcement Design the beam for shear...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips at mid-point of the beam and a uniformly-distributed load of 4 kips/ft over the entire span. Given: (a) The breadth of the beam is 18 inches. (b) Concrete compressive strength, fc, is 3500 psi. (c) Rebar is Grade 40 steel i) Determine the maximum moment and maximum shear acting on the beam. ii) Determine the minimum effective depth 'd' of the beam section (rounded...
4) A 100 foot long simply-supported bridge girder supports the unfactored loads shown in the figure. The uniformly distributed dead load, wD, includes the self weight of the girder, and is constant along the full beam length. Concentrated live loads, PL, are applied as shown in the figure. a) Draw factored shear force and factored bending moment diagrams in the spaces provided. Show magnitudes at locations A, B, C, D and E on each diagram.(8) PL = 50k PL-50k WD-2.5...
Reinforced concrete
Problem #1 (40 points): A beam with x-section shown in the figure is made out of concrete with compressive strength fc = 4000 psi and the steel reinfrocemnt is of Grade 60 (fy 60000psi). Determine 1 The maximum compressive stress in the concrete f and the tensils stress in the steel , if the section is subjected to a bending moment of 130 ft-k (assume n 8) N.A._ 23" 23-х 4 #10 (5.06 in. 3" 18"
15 points 9. A rectangular concrete beam of width b=24 in. is limited by architectural considerations to a maximum total depth h=16 in. It must carry a total factored load moment Mu 400 k-ft. Design the flexural reinforcement for this member, using compression steel if necessary. Allow 3-in, to the center of the bars from the compression or tension face of the beam. Material strengths are fy=60 ksi and fc=4 ksi. Select reinforcement to provide the needed areas, complete necessary...
STANDARD VIEW PRINTER VERSION BACK P8.037 GO Multipart The beam shown in Figure P8.37 will be constructed from a standard steel w shape using an allowable bending stress of 22 ksi. Assume Po=8.0 kips, Pc-13.5 kips, Po 4.0 kips and a-5 ft (a) Develop a list of five acceptable shapes that could be used for this beam. On this list, include the most economical W10, w12, w14, W16, and W18 shapes (b) Select the most economical W shape for this...
3. A 16-foot-long single overhang steel beam is loaded as shown. Assuming a W8 x 35 section, determine the maximum bending stress developed. (A992 steel, Fb-30 ksi) (25 points) Gk INSTRUCTIONS For PROBLEM do the following steps: 1. Show ALL your work 2. Draw appropriately labeled FBDs 3. Use appropriate segments to develop expressions for the shear force and bending moment. diagrams in a standard format the required stresses in the critical points in the 4. Draw the shear force...
Please answer question 3 parts a,b,c thank you
Reinforced Concrete HW
3. (40 pts) Analyze the following statically determinate frame by hand and clearly draw the shear force, axial force, and bending moment diagrams indicating relevant (maximum and minimum) values for each of the following load cases: a) Uniform dead load (qo) applied on the beam – must add beam self-weight (concrete) to this value. b) Uniform live load (q) applied on the beam. c) Horizontal wind force (H). H=...
