Use MATLAB to build a simulation of Quiz 2.3. Simulate the transmission of 10000 packets, each containing 100 bits. Count the

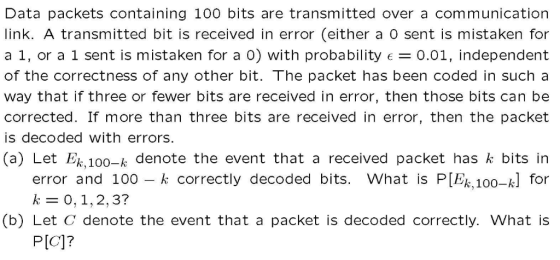

QUIZ 2.3

Data packets containing 100 bits are transmitted over a communication link. A transmitted bit is received in error (either a

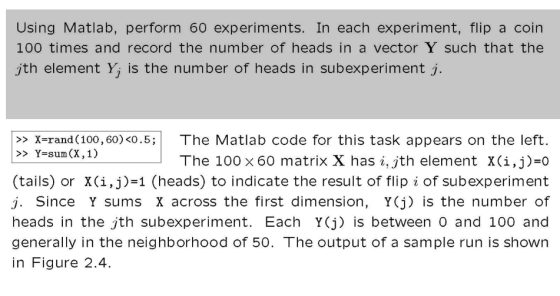

EXAMPLE 2.25

Using Matlab, perform 60 experiments. In each experiment, flip a coin 100 times and record the number of heads in a vector Y

Please help me build the MATLAB code

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

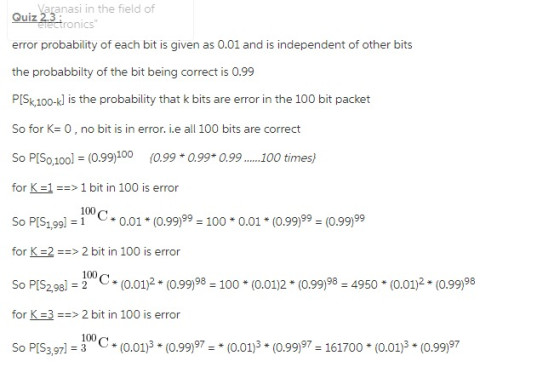

of Quiz 2asi in the field error probability of each bit is given as 0.01 and is independent of other bits the probabbilty ofb) PIC) is the evnt the packet is decoded correctly ie k is less than equal to 3 So PIC] PISo,100l PIS1,991 PIS29al+ PIS3971

0 0
