Question

We want to create a program which prints off what letter grade an individual receives based upon whether or not their grade obeys the following condition: grade>= 90 and grade = 80 and grade<89, we will print off “You made a B”, so on and so forth. In this program, we can assume that we are asking the user to enter whatever grade they recieved as a numeric input.

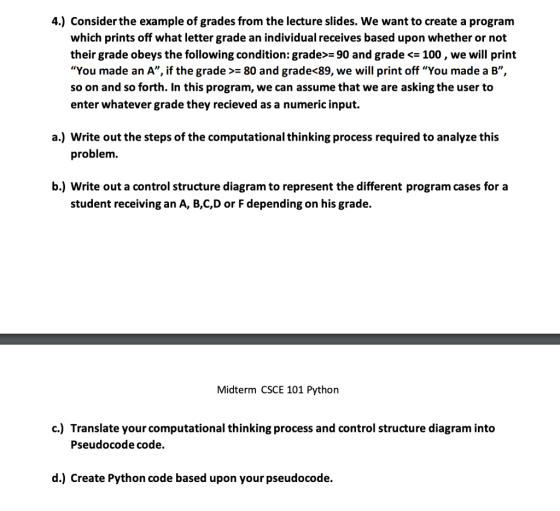

4.) Consider the example of grades from the lecture slides. We want to create a program which prints off what letter grade an individual receives based upon whether or not their grade obeys the following condition: grade>= 90 and grade <= 100, we will print "You made an A”, if the grade >= 80 and grade<89, we will print off "You made a B”, so on and so forth. In this program, we can assume that we are asking the user to enter whatever grade they recieved as a numeric input. a.) Write out the steps of the computational thinking process required to analyze this problem. b.) Write out a control structure diagram to represent the different program cases for a student receiving an A, B,C,D or F depending on his grade. Midterm CSCE 101 Python c.) Translate your computational thinking process and control structure diagram into Pseudocode code. d.) Create Python code based upon your pseudocode.

NEED HELP WITH ALL PARTS!

Answer 1

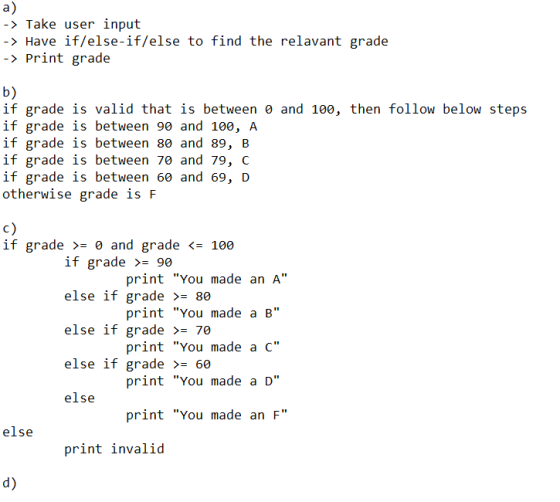

a) -> Take user input -> Have if/else-if/else to find the relavant grade -> Print grade b) if grade is valid that is between 0 and 100, then follow below steps if grade is between 90 and 100, A if grade is between 80 and 89, B if grade is between 70 and 79, C if grade is between 60 and 69, D otherwise grade is F if grade >= 0 and grade <= 100 if grade >= 90 print "You made an A" else if grade >= 80 print "You made a B" else if grade >= 70 print "You made a c" else if grade >= 60 print "You made a D" else print "You made an F" else print invalid

1 2 # taking user input grade - int(input("Enter your grade: \n")) 4 # finilizing grade and printing it 5. if grade >= 0 and grade <= 100: if grade >= 90: print("You made an A") elif grade >= 80: print("You made a B") elif grade >= 70: print("You made a C") elif grade >= 60: print("You made a D") else: print("You made an F") 16 else: 17 print("Invalid grade") 15

Result executed in 2.182 sec(s) Enter your grade: 98 You made an A

Result executed in 5.466 sec(s) Enter your grade: 19 You made an F

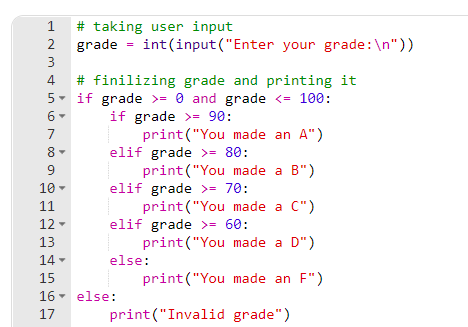

# taking user input
grade = int(input("Enter your grade:\n"))

# finilizing grade and printing it
if grade >= 0 and grade <= 100:
if grade >= 90:
print("You made an A")
elif grade >= 80:
print("You made a B")
elif grade >= 70:
print("You made a C")
elif grade >= 60:
print("You made a D")
else:
print("You made an F")
else:
print("Invalid grade")



# Please up vote.
