Consider the truss shown in the diagram. The applied forces are P1=570 N and P2=430 N...

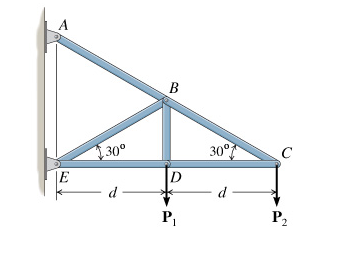

Consider the truss shown in the diagram. The applied forces are P1=570 N and P2=430 N and the distance is d=2.25 m.

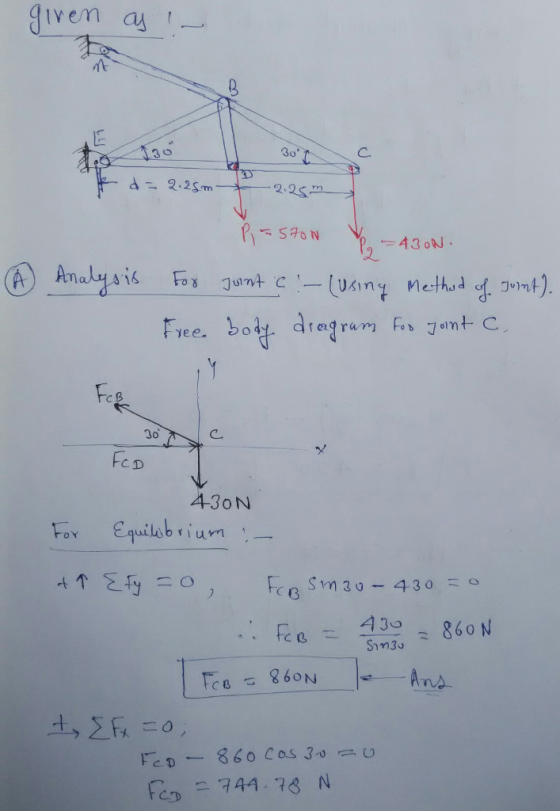

A) What are the forces in the two members CB and CD? Express the magnitudes of the forces to three significant figures. Separate your answers with a comma.

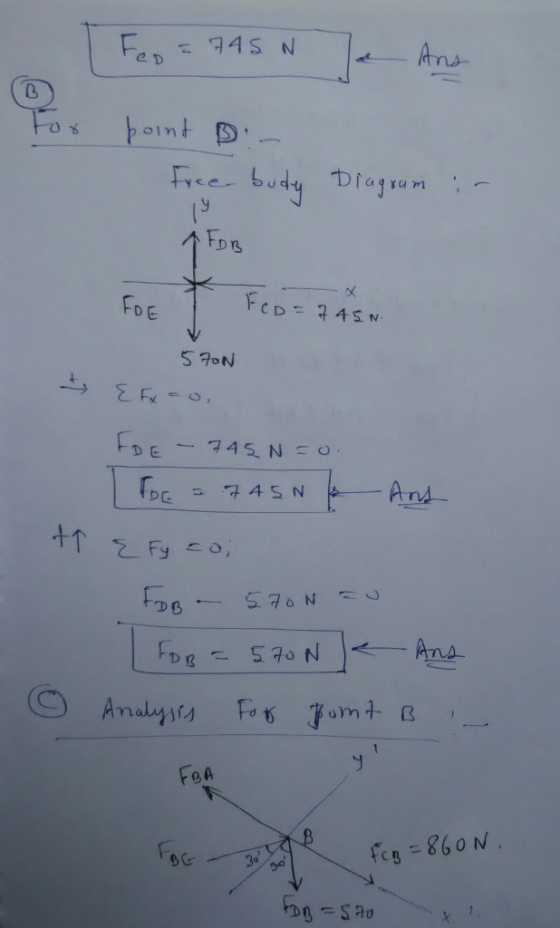

B) Having found FCD in the analysis of joint C, there are now only two unknown forces acting on joint D. Determine the two unknown forces on joint D.Express the magnitudes of the forces to three significant figures. Separate your answers with a comma.

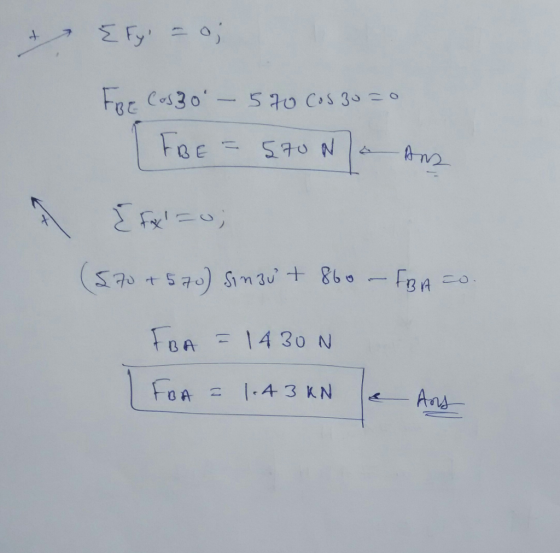

C) Having found FCD in the analysis of joint C and FDB in the analysis of joint D, there are now only two unknown forces acting on joint B. Determine the two unknown forces on joint B.Express the magnitudes of the forces to three significant figures. Separate your answers with a comma.
Homework Answers
Add Answer to:
Consider the truss shown in the diagram. The applied forces are
P1=570 N and P2=430 N...
Determine the forces acting in all the members of the truss shown in Fig. 6–9a ....
Determine the forces acting in all the members of the truss
shown in Fig. 6–9a
.
I need help understanding the bold parts below of
the solution. Please explain the methods/math involved with
steps:
Joint C
.Fx=0;
- FCD cos 30 + FCB sin 45=0
Fy=0;
1.5 kN + FCD sin 30 - FCB cos 45=0
These two equations must be solved simultaneously for
each of the two unknowns. Note, however, that a direct solution for
one of the unknown...
As shown, a truss is loaded by the forces P1 = 490 lb and P2 =...
As shown, a truss is loaded by the forces P1 = 490 lb and P2 = 192 lb and has the dimension a = 9.00 ft. y P X G H P2 E B > a с D > 7 a/2 a/2 Determine Fcg and Fgh, the magnitudes of the forces in members CG and GH, respectively, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of...
As shown, a truss is loaded by the forces P1= 497lb and P2 = 196lb and has the dimension a =...
Determine FCG and FGH in (lb), the magnitudes of the forces in members CG and GH, respectively, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of each force that you obtain by applying this assumption.Express your answers numerically in pounds to three significant figures separated by a comma.
Part A - Determining the forces in three specified members of the truss Determine the forces...
Part A - Determining the forces in three
specified members of the truss
Determine the forces in members CD, DH, and
GH.
Express the magnitudes of the forces in pounds to three
significant figures. Separate your answers with commas.
Part B - The Sense of the Forces
State if the members considered in part A are in tension or
compression.
Complete each sentenc
e by dragging the appropriate word into the blank. The words can
be used more than once....
Please answer it correctly Part A As shown, a truss is loaded with forces Pi =...
Please answer it correctly
Part A As shown, a truss is loaded with forces Pi = 475 N and P2 = 875 N and has the dimension a = 1.00 m L. B u D Determine A, and Ay, joint A's reaction forces' magnitudes in the x and y directions, respectively, and Cy, joint C's reaction force's magnitude in the y direction. Express your answers numerically in newtons to three significant figures separated by commas. ► View Available Hint(s) ΟΙ...
As shown, a truss is loaded with forcesP_1 = 208 lb and P_2 = 410 lb...
As shown, a truss is loaded with forcesP_1 = 208 lb and P_2 =
410 lb and has the dimension a = 4.00 ft .
Learning Goal: To apply the method of joints to find the forces in a buss's members. For a truss, the method of joints is used to determine the forces in the members. To find cach member's foroc, the equilibriuin of individual jaints is considered. The member forces becainc external forces in a joint's frec-bacly diagram...
Part B As shown, the truss is loaded by the forces Pi = 475 N and...
Part B As shown, the truss is loaded by the forces Pi = 475 N and P2 = 875 N and has the dimension a = 1.00 m P B D P Using the method of joints, determine FAB, FBC, and FBD, the magnitude of the force in each of the members connected to joint B. Assume for your calculations that each member is in tension, and include in your response the sign of each force that you obtain by...
Consider the following bowstring truss: Forces: P, = 3 kip P2 =13.5 kip Dimensions: b =...
Consider the following bowstring truss: Forces: P, = 3 kip P2 =13.5 kip Dimensions: b = 3 ft h = 10 ft Pa = 18 kip ha = 1 ft P4 =20 kip = 03 ft Part A Determine the forces in all the members of the truss and state if each is in tension or compression. Please note the symmetry of the truss Express your answers to three significant figures and include the appropriate units. You must show all...
Part A As shown, a truss is loaded by the forces I 499 lb and P2...
Part A As shown, a truss is loaded by the forces I 499 lb and P2 209 lb and has the dimension a 10.5 ft P2 Ca cl a/2 a/2 Determine FBc the magnitude of the force in member BC, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of each force that you obtain by applying this assumption Express your answer numerically in pounds to three...
9. [1pt] Two forces are applied to the truss as shown, F1 = 176 N and...
9. [1pt] Two forces are applied to the truss as shown, F1 = 176 N and F2 = 158 N. The truss is supported by a roller at A and a pin joint at E. Assume L = 1.50 m. Indicate whether the member DE is in compression (C) or in tension (T). You only have 1 try! Correct, computer gets: T 10. [1pt] Calculate the value of the force in member DE. Enter a negative value if the member...
Determine the forces acting in all the members of the truss
shown in Fig. 6–9a
.
I need help understanding the bold parts below of
the solution. Please explain the methods/math involved with
steps:
Joint C
.Fx=0;
- FCD cos 30 + FCB sin 45=0
Fy=0;
1.5 kN + FCD sin 30 - FCB cos 45=0
These two equations must be solved simultaneously for
each of the two unknowns. Note, however, that a direct solution for
one of the unknown...
As shown, a truss is loaded by the forces P1 = 490 lb and P2 = 192 lb and has the dimension a = 9.00 ft. y P X G H P2 E B > a с D > 7 a/2 a/2 Determine Fcg and Fgh, the magnitudes of the forces in members CG and GH, respectively, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of...
Part A - Determining the forces in three
specified members of the truss
Determine the forces in members CD, DH, and
GH.
Express the magnitudes of the forces in pounds to three
significant figures. Separate your answers with commas.
Part B - The Sense of the Forces
State if the members considered in part A are in tension or
compression.
Complete each sentenc
e by dragging the appropriate word into the blank. The words can
be used more than once....
Please answer it correctly
Part A As shown, a truss is loaded with forces Pi = 475 N and P2 = 875 N and has the dimension a = 1.00 m L. B u D Determine A, and Ay, joint A's reaction forces' magnitudes in the x and y directions, respectively, and Cy, joint C's reaction force's magnitude in the y direction. Express your answers numerically in newtons to three significant figures separated by commas. ► View Available Hint(s) ΟΙ...
As shown, a truss is loaded with forcesP_1 = 208 lb and P_2 =
410 lb and has the dimension a = 4.00 ft .
Learning Goal: To apply the method of joints to find the forces in a buss's members. For a truss, the method of joints is used to determine the forces in the members. To find cach member's foroc, the equilibriuin of individual jaints is considered. The member forces becainc external forces in a joint's frec-bacly diagram...
Part B As shown, the truss is loaded by the forces Pi = 475 N and P2 = 875 N and has the dimension a = 1.00 m P B D P Using the method of joints, determine FAB, FBC, and FBD, the magnitude of the force in each of the members connected to joint B. Assume for your calculations that each member is in tension, and include in your response the sign of each force that you obtain by...
Consider the following bowstring truss: Forces: P, = 3 kip P2 =13.5 kip Dimensions: b = 3 ft h = 10 ft Pa = 18 kip ha = 1 ft P4 =20 kip = 03 ft Part A Determine the forces in all the members of the truss and state if each is in tension or compression. Please note the symmetry of the truss Express your answers to three significant figures and include the appropriate units. You must show all...
Part A As shown, a truss is loaded by the forces I 499 lb and P2 209 lb and has the dimension a 10.5 ft P2 Ca cl a/2 a/2 Determine FBc the magnitude of the force in member BC, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of each force that you obtain by applying this assumption Express your answer numerically in pounds to three...
