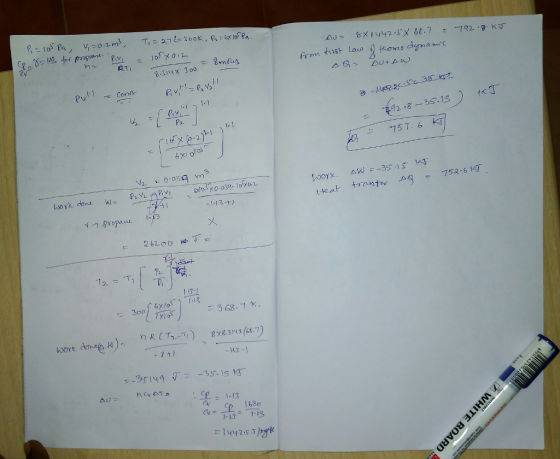

A piston-cylinder assembly contains propane, initially at 27 °C,
1 bar, and a volume of 0.2 m3 . The propane undergoes a process to
a final pressure of 6 bar, during which the pressure-volume
relationship is pV1.1 = constant. For the propane, evaluate the
work and heat transfer, each in kJ. Kinetic and potential energy
effects can be ignored.
Homework Answers
Add Answer to:
A piston-cylinder assembly contains propane, initially at 27 °C,
1 bar, and a volume of 0.2...
3.83 A piston-cylinder assembly contains propane, initially at 27°C, 1 bar, and a volume of 0.2...
3.83 A piston-cylinder assembly contains propane, initially at 27°C, 1 bar, and a volume of 0.2 mº. The propane undergoes a process to a final pressure of 4 bar, during which the pressure-volume relationship is pl.1 = constant. For the propane, evaluate the work and heat transfer, each in kJ. Kinetic and potential energy effects can be ignored.
Question 1 A piston-cylinder assembly contains 3.2 kg of water at 211.9oC and 3 bar. The...
Question 1 A piston-cylinder assembly contains 3.2 kg of water at 211.9oC and 3 bar. The water is compressed to a saturated vapor state where the pressure is 51.5 bar. During compression, there is a heat transfer of energy from the water to its surroundings having a magnitude of 230 kJ. Neglecting changes in kinetic energy and potential energy, determine the work, in kJ, for the process of the water. Question 2 Water, initially saturated vapor at 10.2 bar, fills...
Five kg of water is contained in a piston–cylinder assembly, initially at 5 bar and 200°C....
Five kg of water is contained in a piston–cylinder assembly, initially at 5 bar and 200°C. The water is slowly heated at constant pressure to a final state. The heat transfer for the process is 3260 kJ and kinetic and potential energy effects are negligible. Determine the final volume, in m3, and the work for the process, in kJ.
Five kg of water is contained in a piston–cylinder assembly, initially at 5 bar and 360°C....
Five kg of water is contained in a piston–cylinder assembly, initially at 5 bar and 360°C. The water is slowly heated at constant pressure to a final state. The heat transfer for the process is 2960 kJ and kinetic and potential energy effects are negligible. Determine the final volume, in m3, and the work for the process, in kJ.
Air contained in a piston-cylinder assembly, initially at 2 bar, 200 K, and a volume of 1 L, unde...
Air contained in a piston-cylinder assembly, initially at 2 bar, 200 K, and a volume of 1 L, undergoes a process to a final state where the pressure is 8 bar and the volume is 2 L During the process, the pressure-volume relationship is linear. Assuming the ideal gas model for the air, determine the work and heat transfer, each in kJ. 4.
Air contained in a piston-cylinder assembly, initially at 2 bar, 200 K, and a volume of 1...
As shown in the figure below, a gas contained within a piston-cylinder assembly, initially at a...
As shown in the figure below, a gas contained within a piston-cylinder assembly, initially at a volume of 0.1 m3, undergoes a constant-pressure expansion at p 2 bar to a final volume of V2 0.2 m3, while being slowly heated through the base. The change in internal energy of the gas is 0.25 kJ. The piston and cylinder walls are fabricated from heat-resistant material, and the piston moves smoothly in the cylinder. The local atmospheric pressure is 1 bar. Piston-...
Refrigerant 22 undergoes a constant-pressure process within a piston–cylinder assembly from saturated vapor at 3.5 bar...
Refrigerant 22 undergoes a constant-pressure process within a piston–cylinder assembly from saturated vapor at 3.5 bar to a final temperature of 25°C. Kinetic and potential energy effects are negligible. Evaluate the work and the heat transfer, each in kJ per kg of refrigerant.
Refrigerant 22 undergoes a constant-pressure process within a piston–cylinder assembly from saturated vapor at 3.0 bar...
Refrigerant 22 undergoes a constant-pressure process within a piston–cylinder assembly from saturated vapor at 3.0 bar to a final temperature of 30°C. Kinetic and potential energy effects are negligible. Evaluate the work and the heat transfer, each in kJ per kg of refrigerant.
3.111 Air contained in a piston-cylinder assembly contains air, initially at 2 bar, 300 K and...
3.111 Air contained in a piston-cylinder assembly contains air, initially at 2 bar, 300 K and a volume of 2 m^3. The air undergoes a process to a state where pressure is 1 bar, during which the pressure-volume relationship is PV=constant. Assuming ideal gas behavior for air, determine the mass of the air, in kg and the work and heat transfer, each in KJ.
1.Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 277°C from a pressure...
1.Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 277°C from a pressure of 5.1 bar to a pressure of 2.7 bar. Evaluate the work, in kJ/kg. 2.Nitrogen (N2) contained in a piston–cylinder arrangement, initially at 9.3 bar and 437 K, undergoes an expansion to a final temperature of 300 K, during which the pressure–volume relationship is pV1.1 = constant. Assuming the ideal gas model for the N2, determine the heat transfer in kJ/kg. 3.Argon contained in...
3.83 A piston-cylinder assembly contains propane, initially at 27°C, 1 bar, and a volume of 0.2 mº. The propane undergoes a process to a final pressure of 4 bar, during which the pressure-volume relationship is pl.1 = constant. For the propane, evaluate the work and heat transfer, each in kJ. Kinetic and potential energy effects can be ignored.
Air contained in a piston-cylinder assembly, initially at 2 bar, 200 K, and a volume of 1 L, undergoes a process to a final state where the pressure is 8 bar and the volume is 2 L During the process, the pressure-volume relationship is linear. Assuming the ideal gas model for the air, determine the work and heat transfer, each in kJ. 4.
Air contained in a piston-cylinder assembly, initially at 2 bar, 200 K, and a volume of 1...
As shown in the figure below, a gas contained within a piston-cylinder assembly, initially at a volume of 0.1 m3, undergoes a constant-pressure expansion at p 2 bar to a final volume of V2 0.2 m3, while being slowly heated through the base. The change in internal energy of the gas is 0.25 kJ. The piston and cylinder walls are fabricated from heat-resistant material, and the piston moves smoothly in the cylinder. The local atmospheric pressure is 1 bar. Piston-...
