Five kg of water is contained in a piston–cylinder assembly, initially at 5 bar and 200°C....

Five kg of water is contained in a piston–cylinder assembly, initially at 5 bar and 200°C. The water is slowly heated at constant pressure to a final state. The heat transfer for the process is 3260 kJ and kinetic and potential energy effects are negligible. Determine the final volume, in m3, and the work for the process, in kJ.

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

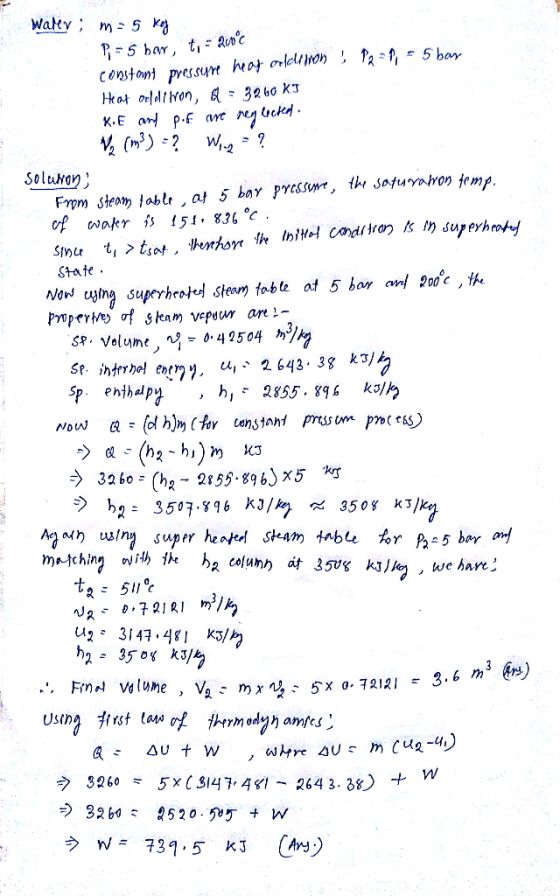

Answer #1


0 0
