Complete the timing diagram given below for the 74'107 JK flip-flop. J=K=1. Assume Q = O...

Question

Question

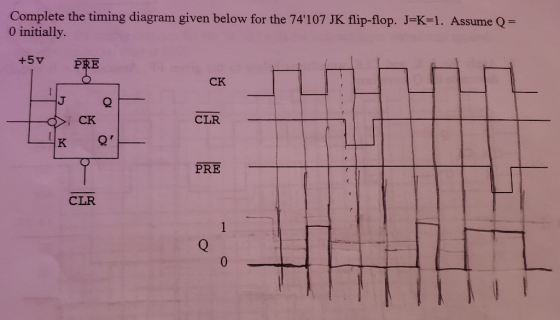

Complete the timing diagram given below for the 74107 JK flip-flop. J=K=1. Assume Q = O initially. +5V PRE CK CK CLR PRE CLR

engineering Electrical-Engineering

Answer 1

Answer #1

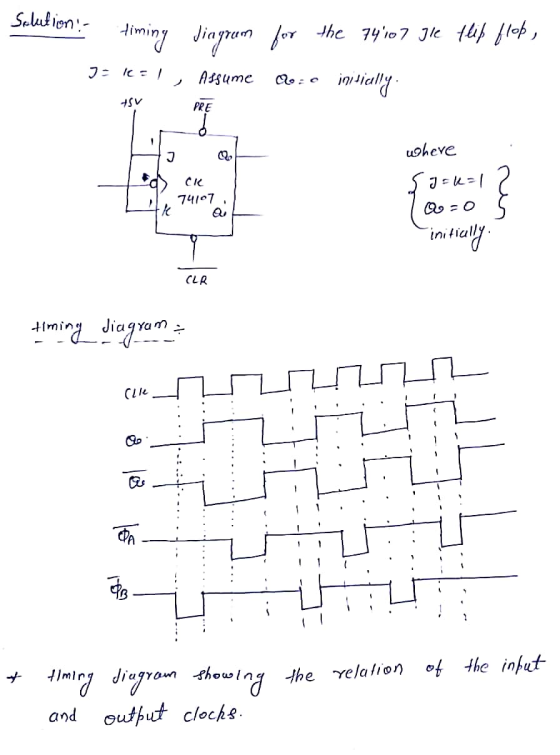

for the 74 107 gle flip flop, Solution - timing diagram Jok=1, Assume 0 :0 initially where {j=0=1 ? @=0 $ initially CLR timin

Answer 2

Similar Homework Help Questions

For the input shown below, draw the timing diagrams for the flip flop output Q (assume...

For the input shown below, draw the timing diagrams for the flip flop output Q (assume negative edge triggered flip flops) 1 CLOCK D or T CLR PRE 1.1 Assume a D flip-flop without a clear or preset 1.2 Assume a D flip-flop with active low clear CLR' 1.3 Assume a D flip-flop with active low clear CLR' and preset PRE 1.4 Assume a T flip-flop without a clear or preset (Q is initially 1) 1.5 Assume a T flip-flop...
Please give me explanation. The JK flip-flop 1. The figure below is a timing diagram for...

Please give me explanation. The JK flip-flop 1. The figure below is a timing diagram for the J, K, and clock inputs of a positive edge-triggered JK-flip-flop. Draw the corresponding Q and Q' outputs. (4 points) clockoUU Q'
Problem 04: JK Flip-Flop Timing Diagrams (A) Compete the timing diagram shown in Figure 3 for a J...

Problem 04: JK Flip-Flop Timing Diagrams (A) Compete the timing diagram shown in Figure 3 for a JK Flip Flop. Assume that the flip lop outpat starts in the low position outpat starts in the low position outpat starts in the low position. (B) Complete the timing dingram shown in Figure 4 for a JK Flip Flop. Assume that the lip Blop (C) Complete the timing dingram shown in Figure 5 for a JK Flip-Flop. Asume that the flip-flop Figure...

All flip flops are positive-edge triggered. Assume each flip flop starts at 0.

All flip flops are positive-edge triggered. Assume each flip flop starts at 0. Problem 11: (8 pts) For the following circuit, complete the timing diagram for the state of each flip flop and the output, where shown. All flip flops are positive-edge triggered. Assume each flip flop starts at 0. J-K FF TFF CLK PRE CLR PRE CLR CLR回 Clock CLR Problem 11: (8 pts) For the following circuit, complete the timing diagram for the state of each flip flop...
e Q and Q output waveforms of the flip-flop in Figure 6-18 for the D and...

e Q and Q output waveforms of the flip-flop in Figure 6-18 for the D and CLK inpusts in Figure 6-19.(a). Assume that the positive edge-triggered flip-flop is initially RESEI CLK 4. For the positive edge-triggered J-K flip-flop with preset and clear inputs in Figure 6-27, determine the Q output for the inputs shown in the timing diagram in part (a) if Q is initially LOW CLK 几几几几几几 PRE PRE CLR CLR 5. Use a K-map to reduce the following...
please show all work JK Flip-Flop S R Flip-Flop From(Q) To (Q+) S 0 0 R...

please show all work JK Flip-Flop S R Flip-Flop From(Q) To (Q+) S 0 0 R T Flip-Flop From(Q) To(Q+) 0 0 JK From(Q 0 To (Q+) 0 -- - c) Complete the timing diagram below. Assume that both of flip-flops are edge triggered. (10 pts) Clock

Question 19 8 pts Complete the following timing diagram for a J_K flip-flop. Note that the...

Question 19 8 pts Complete the following timing diagram for a J_K flip-flop. Note that the CK inputs on the two flip-flops are different. CIN Qi e CLR Clock 0 0 CLR CK D CIN CKD Clock HTML Editore BIVA-A- IE 3 1 1 XX, EE DITTK 12pt Paragraph
Question 3. [20 marks a) Convert a JK - Flip Flop into a D- Flip Flop...

Question 3. [20 marks a) Convert a JK - Flip Flop into a D- Flip Flop [10 marks] b) Given the following JK - Flip Flop Preset dCLK K Clear Clearo Preset J K C CLK 1 Figure 2. Timing Diagram Sketch the output waveform Q in Figure 2. [10 marks C
For the T Flip-flop timing diagram below, determine the value of the flip-flop output Q for...

For the T Flip-flop timing diagram below, determine the value of the flip-flop output Q for each labeled point in time (A-H) assuming that Q is zero at time 0 and the clock is positive edge triggered. (Also assume all setup and hold times are zero.) For the T Flip-flop timing diagram below, determine the value of the flip-flop output Q for each labeled point in time (A-H) assuming that Q is zero at time 0 and the clock is...

4.16 The circuit of Fig. P4.16a contains a JK flip-flop and a D flip-flop. Complete the...

4.16 The circuit of Fig. P4.16a contains a JK flip-flop and a D flip-flop. Complete the timing diagram of Fig. P4.16b by drawing the waveforms of signals and Q. oc Lep roc Clock bs Clock__ CRU 2 Figure P4.16: a. Logic diagram. B. Timing diagram.
