Homework Answers

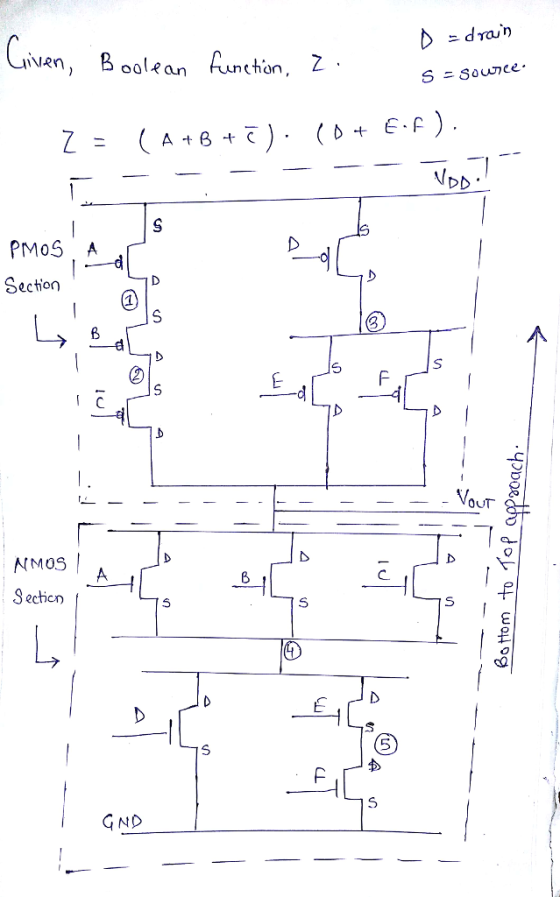

Following image is the circuit representation for the given
boolean function
from above representation

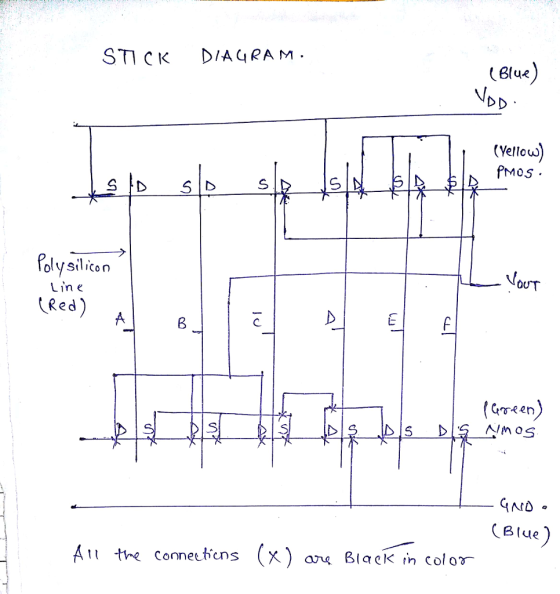

foloowing image is the stick diagram for given problem
Add Answer to:

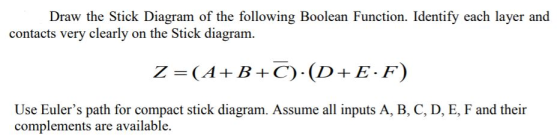

Draw the Stick Diagram of the following Boolean Function. Identify each layer and contacts very clearly...
with details and explanations 3. Consider the logic function Z-((A + B).D). (C.(E+F)) (5 Marks) Realize the above Boolean function using CMOS transistors. a. btain a common Euler path for both nMO...
with details and explanations
3. Consider the logic function Z-((A + B).D). (C.(E+F)) (5 Marks) Realize the above Boolean function using CMOS transistors. a. btain a common Euler path for both nMOS and pMOS transistors and hence draw the optimized stick diagram layout. b. O (30 Marks)
3. Consider the logic function Z-((A + B).D). (C.(E+F)) (5 Marks) Realize the above Boolean function using CMOS transistors. a. btain a common Euler path for both nMOS and pMOS transistors and hence...
About logic diagram, boolean algebra, computer organization Draw the logic diagram for function F as a...
About logic diagram, boolean algebra, computer organization
Draw the logic diagram for function F as a 2‐level AND‐OR
circuit.
Background
F(a,b,c) --> F output 1 if abc is interpreted as 3-bit
unsigned integer is a prime number. Output is 0 for other
numbers.
The Simplified SOP Expression of F = a'b +
ac
F (a, b, c) =
m (2, 3, 5, 7)
Note:
i) complemented inputs (a', b', c') are not available;
ii) Use a fan‐in of 2 only....
7. (20pt) For the following Stick Diagram: • (a) Draw the Circuit Diagram. • (b) Which...
7. (20pt) For the following Stick Diagram: • (a) Draw the Circuit Diagram. • (b) Which two transistors have shared diffusion? • (c) Write the Boolean Function Equation for OUT. (d) Draw the Logic Diagram using NAND, NOR, INV. (e) Which important items and layers may be missing in the below stick diagram? E D A B C Vdd P+ Active Out N* Active Gnd Metal Poly
Consider the logic function Zr((A+B). D. (CKE+F))) 3. Realize the sbove Boolean function using CMos transtors. b. Obtain a common Euler path for both DMOS and pMOS transistors and hence draw the opti...
Consider the logic function Zr((A+B). D. (CKE+F))) 3. Realize the sbove Boolean function using CMos transtors. b. Obtain a common Euler path for both DMOS and pMOS transistors and hence draw the optimized stick diagram layout.
Consider the logic function Zr((A+B). D. (CKE+F))) 3. Realize the sbove Boolean function using CMos transtors. b. Obtain a common Euler path for both DMOS and pMOS transistors and hence draw the optimized stick diagram layout.
6. Implement (draw logic diagram) the following Boolean function F = ab/c + a'd' + ab...
6. Implement (draw logic diagram) the following Boolean function F = ab/c + a'd' + ab (a) With AND and inverter gates (b) With OR and inverter gates
Draw a logic diagram using only two-input NOR gates to implement the following function. Show your...
Draw a logic diagram using only two-input NOR gates to implement the following function. Show your work. You must use only NOR gates for this solution, no other gates. You may assume that the inverted inputs are available. Example: if you need A’ as a circuit input, just write A’ as an input name. (15 points) F(A, B, C, D) = (A B)’ (C D) a. Show your work, using Boolean algebra to expand the function to its...
a. Sketch a transistor layout, and Euler path, and a stick diagram for each of the...
a. Sketch a transistor layout, and Euler path, and a stick diagram for each of the following Boolean functions. You may assume that you have literals and inverted literals available as input to your gates. i. Y=AB + C ii. Y=(AB + C + DE) ii Y - ((A+B+C)(D+E)F) iv. Y- BD+ BC+ABC vi. Y- AB+BC +AC Our process (roughly speaking) is a 0.6μ process meaning the minimum channel length is 0.6μ. The gate oxidethickness is around 135A, and廿io mobility...
Write the Boolean expression and draw the gate logic diagram and typical PLC ladder logic dia- gr...
Write the Boolean expression and draw the gate logic diagram and typical PLC ladder logic dia- gram for a control system wherein a fan is to run only when all of the following conditions are met: . Input A is OFF . Input B is ON or input C is ON, or both B and C 5. are ON Inputs D and E are both ON One or more of inputs F, G, or H are ON 4. Express each...
Design a full adder from scratch. (a) Identify inputs and outputs (b) Draw a block diagram...
Design a full adder from scratch. (a) Identify inputs and outputs (b) Draw a block diagram (c) Show the truth tables (d) Determine a minimized Boolean expression for the carry output (e) Draw an AND-OR circuit for the carry output (f) Derive a minimized product-of-sums expression for the carry output of the system
L ILLLL LLLLLLL LO LLO (7) Boolean Algebra 7 marks (7a) Simplify the following logic function...
L ILLLL LLLLLLL LO LLO (7) Boolean Algebra 7 marks (7a) Simplify the following logic function as a sum of products. You may use K-map. 3 marks F = Ā B D + A B D + B C D + C D + ĀB C D (76) 1 mark Implement the simplified logic function F of (7a) as a sum of products with AND and OR gates. Show your steps. You may assume complements of the literals are available....
with details and explanations
3. Consider the logic function Z-((A + B).D). (C.(E+F)) (5 Marks) Realize the above Boolean function using CMOS transistors. a. btain a common Euler path for both nMOS and pMOS transistors and hence draw the optimized stick diagram layout. b. O (30 Marks)
3. Consider the logic function Z-((A + B).D). (C.(E+F)) (5 Marks) Realize the above Boolean function using CMOS transistors. a. btain a common Euler path for both nMOS and pMOS transistors and hence...
About logic diagram, boolean algebra, computer organization
Draw the logic diagram for function F as a 2‐level AND‐OR
circuit.
Background
F(a,b,c) --> F output 1 if abc is interpreted as 3-bit
unsigned integer is a prime number. Output is 0 for other
numbers.
The Simplified SOP Expression of F = a'b +
ac
F (a, b, c) =
m (2, 3, 5, 7)
Note:
i) complemented inputs (a', b', c') are not available;
ii) Use a fan‐in of 2 only....
7. (20pt) For the following Stick Diagram: • (a) Draw the Circuit Diagram. • (b) Which two transistors have shared diffusion? • (c) Write the Boolean Function Equation for OUT. (d) Draw the Logic Diagram using NAND, NOR, INV. (e) Which important items and layers may be missing in the below stick diagram? E D A B C Vdd P+ Active Out N* Active Gnd Metal Poly
Consider the logic function Zr((A+B). D. (CKE+F))) 3. Realize the sbove Boolean function using CMos transtors. b. Obtain a common Euler path for both DMOS and pMOS transistors and hence draw the optimized stick diagram layout.
Consider the logic function Zr((A+B). D. (CKE+F))) 3. Realize the sbove Boolean function using CMos transtors. b. Obtain a common Euler path for both DMOS and pMOS transistors and hence draw the optimized stick diagram layout.
6. Implement (draw logic diagram) the following Boolean function F = ab/c + a'd' + ab (a) With AND and inverter gates (b) With OR and inverter gates
a. Sketch a transistor layout, and Euler path, and a stick diagram for each of the following Boolean functions. You may assume that you have literals and inverted literals available as input to your gates. i. Y=AB + C ii. Y=(AB + C + DE) ii Y - ((A+B+C)(D+E)F) iv. Y- BD+ BC+ABC vi. Y- AB+BC +AC Our process (roughly speaking) is a 0.6μ process meaning the minimum channel length is 0.6μ. The gate oxidethickness is around 135A, and廿io mobility...
Write the Boolean expression and draw the gate logic diagram and typical PLC ladder logic dia- gram for a control system wherein a fan is to run only when all of the following conditions are met: . Input A is OFF . Input B is ON or input C is ON, or both B and C 5. are ON Inputs D and E are both ON One or more of inputs F, G, or H are ON 4. Express each...
L ILLLL LLLLLLL LO LLO (7) Boolean Algebra 7 marks (7a) Simplify the following logic function as a sum of products. You may use K-map. 3 marks F = Ā B D + A B D + B C D + C D + ĀB C D (76) 1 mark Implement the simplified logic function F of (7a) as a sum of products with AND and OR gates. Show your steps. You may assume complements of the literals are available....
