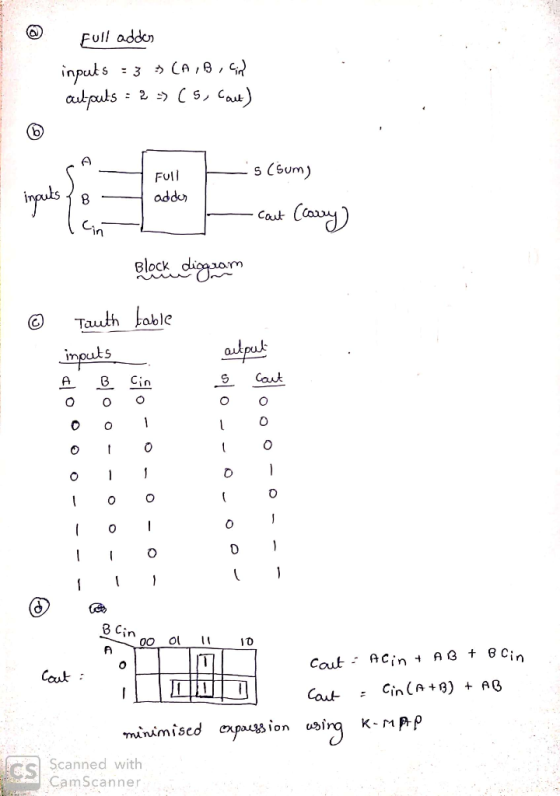

Design a full adder from scratch.
(a) Identify inputs and outputs
(b) Draw a block diagram
(c) Show the truth tables
(d) Determine a minimized Boolean expression for the carry
output

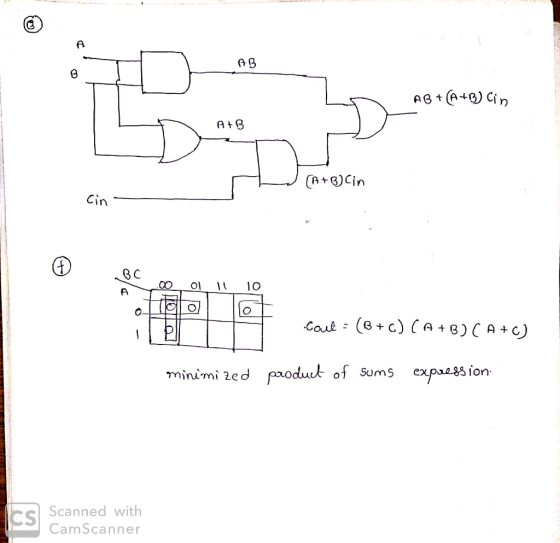

(e) Draw an AND-OR circuit for the carry output
(f) Derive a minimized product-of-sums expression for the carry
output of the system
