Homework Answers
Add Answer to:

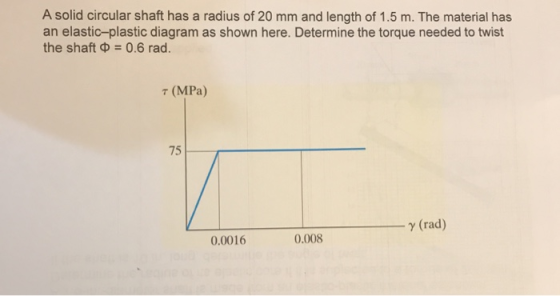

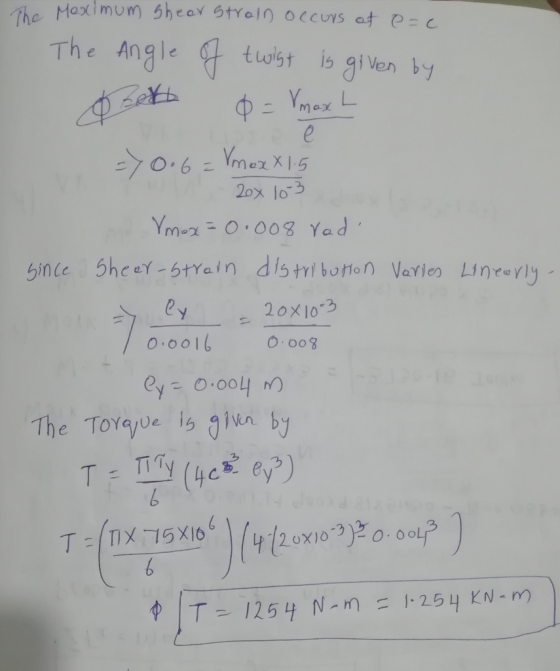

A solid circular shaft has a radius of 20 mm and length of 1.5 m. The...
180 mm 160 mm -1.2 m- -0.9 m A shaft of solid circular cross section consisting...
180 mm 160 mm -1.2 m- -0.9 m A shaft of solid circular cross section consisting of two segments is shown in the first part of the figure. The left-hand segment has diameter 80 mm and length 1.2 m; the right-hand segment has diameter 60 mm and length 0.9 m. Shown in the second part of the figure is a hollow shaft made of the same material and having the same length. The thickness t of the hollow shaft is...
160 mm 10 mm A hollow cylindrical steel shaft is 1.5 m long and has inner...
160 mm 10 mm A hollow cylindrical steel shaft is 1.5 m long and has inner and outer diameters respectively equal to 40 and 60 mm. The allowable shearing stress is 120 MPa with a modulus of rigidity (shear modulus) G-77 GPa, assuming fully elastic deformation. (a) What is the largest torque that can be applied to the shaft? (5 points) (b) What is the corresponding minimum value of the shearing stress in the shaft? (5 points) (c) What are...
The power loading on a uniform shaft of 20 mm diameter solid circular cross section is...
The power loading on a uniform shaft of 20 mm diameter solid circular cross section is shown in Figure 2. The speed of the shaft is 1200 rpm. The shear modulus (G) of steel may be taken as 80 GPa C (a) Sketch the torque diagram; (b) Determine the maximum shear stress in the shaft (c) Calculate the angle of twist between the two ends of the shaft 1.2 m 1.8 m 6 kW 11 kW A Тв TA Tc...
Segment AB is a solid steel shaft that is 2 m in length, 0.1 m in...
Segment AB is a solid steel shaft that is 2 m in length, 0.1 m
in diameter, and has an applied torque of 5,000 N∙m in the
clockwise direction. Segment BC is a solid steel shaft that is 1.5
meters in length, 0.2 meters in diameter, and has an applied torque
of 15,000 N∙m in the counter clockwise direction.
a.) Determine the maximum shear stress, in
MPa, in the shaft
b.) Determine the angle of twist, in degrees, in section...
A ships solid circular drive shaft... A ships solid circular drive shaft is of diameter, d...
A ships solid circular drive shaft...
A ships solid circular drive shaft is of diameter, d 53 mm, and is subjected to a torque, T= 1512 Nm and an axial force, F-134 kN as shown. The shaft is made of steel with a yield stress of 350 MPa. Determine the Factor of Safety (accurate to two decimal places), according to Tresca's maximum shear stress failure theory. (Hint: Based on the state of stress in a surface element, consider Mohr's circle...
A solid steel bar of circular cross section has diameter d = 40 mm, length L...
A solid steel bar of circular cross section has diameter d = 40 mm, length L = 1.3 m and shear modulus of elasticity G = 80 GPa. The bar is subjected to torques T acting at the ends. If the torques have magnitude T = 340 Nm, what is the maximum shear stress in the bar? What is the angle of twist between the ends? If the allowable shear stress is 42 MPa and the allowable angle of twist...
sructural mechanics Q2. A solid circular shaft has to transmit a power Pat w rpm without...
sructural mechanics
Q2. A solid circular shaft has to transmit a power Pat w rpm without exceeding the shearing stress of t and angle of twist of e degree in a length of 26 times the diameter. How much should be the diameter of this shaft if the modulus of elasticity of shaft material is E and poisson's ratio is v. Assume that the material remains clastic. P=14(MW) W = 1800(rpm) T= 35 (MPa) - 2 v=0.3 E=CMPa) Page 4...
75 mm 1.5 m T = 48 N·m 2 m 150 mm Two solid steel 20-mm-diameter...
75 mm 1.5 m T = 48 N·m 2 m 150 mm Two solid steel 20-mm-diameter shafts are coupled together using the perfectly meshed gears shown. Shaft DC is fixed to the wall at D and supported with a frictionless journal bearing. Shaft EF is supported with two frictionless journal bearings. The modulus of rigidity of steel is 80 GPa. Before the torque is applied, the angle of twist in each shaft is zero, and the angle of rotation of...
A solid circular shaft 125 mm diameter rotates in bearings at 30 rad/s. Transverse loadings produce...
A solid circular shaft 125 mm diameter rotates in bearings at 30 rad/s. Transverse loadings produce a maximum bending moment of 10 kNm. Given the tensile yield stress of the shaft material as 300 MPa, find the power this shaft can transmit according to the Tresca and von Mises yield criteria.
L-A solid circular shaft of varying diameters is subjected to three torques with magnitudes equal...
L-A solid circular shaft of varying diameters is subjected to three torques with magnitudes equal to: T, = 600 Ibin, T2 -500 Ib-in and T3 200 Ib-in, as shown in the figure. The thicker segment has a diameter of di 2.83 in, and the other segment has diameter equal to d2 2.38 in. The length of each segment, in inches, is shown in the figure. The shaft is made of steel with G- 3.15 ksi. (a) Draw the torsion diagram...
180 mm 160 mm -1.2 m- -0.9 m A shaft of solid circular cross section consisting of two segments is shown in the first part of the figure. The left-hand segment has diameter 80 mm and length 1.2 m; the right-hand segment has diameter 60 mm and length 0.9 m. Shown in the second part of the figure is a hollow shaft made of the same material and having the same length. The thickness t of the hollow shaft is...
160 mm 10 mm A hollow cylindrical steel shaft is 1.5 m long and has inner and outer diameters respectively equal to 40 and 60 mm. The allowable shearing stress is 120 MPa with a modulus of rigidity (shear modulus) G-77 GPa, assuming fully elastic deformation. (a) What is the largest torque that can be applied to the shaft? (5 points) (b) What is the corresponding minimum value of the shearing stress in the shaft? (5 points) (c) What are...
The power loading on a uniform shaft of 20 mm diameter solid circular cross section is shown in Figure 2. The speed of the shaft is 1200 rpm. The shear modulus (G) of steel may be taken as 80 GPa C (a) Sketch the torque diagram; (b) Determine the maximum shear stress in the shaft (c) Calculate the angle of twist between the two ends of the shaft 1.2 m 1.8 m 6 kW 11 kW A Тв TA Tc...
Segment AB is a solid steel shaft that is 2 m in length, 0.1 m
in diameter, and has an applied torque of 5,000 N∙m in the
clockwise direction. Segment BC is a solid steel shaft that is 1.5
meters in length, 0.2 meters in diameter, and has an applied torque
of 15,000 N∙m in the counter clockwise direction.
a.) Determine the maximum shear stress, in
MPa, in the shaft
b.) Determine the angle of twist, in degrees, in section...
A ships solid circular drive shaft...
A ships solid circular drive shaft is of diameter, d 53 mm, and is subjected to a torque, T= 1512 Nm and an axial force, F-134 kN as shown. The shaft is made of steel with a yield stress of 350 MPa. Determine the Factor of Safety (accurate to two decimal places), according to Tresca's maximum shear stress failure theory. (Hint: Based on the state of stress in a surface element, consider Mohr's circle...
sructural mechanics
Q2. A solid circular shaft has to transmit a power Pat w rpm without exceeding the shearing stress of t and angle of twist of e degree in a length of 26 times the diameter. How much should be the diameter of this shaft if the modulus of elasticity of shaft material is E and poisson's ratio is v. Assume that the material remains clastic. P=14(MW) W = 1800(rpm) T= 35 (MPa) - 2 v=0.3 E=CMPa) Page 4...
75 mm 1.5 m T = 48 N·m 2 m 150 mm Two solid steel 20-mm-diameter shafts are coupled together using the perfectly meshed gears shown. Shaft DC is fixed to the wall at D and supported with a frictionless journal bearing. Shaft EF is supported with two frictionless journal bearings. The modulus of rigidity of steel is 80 GPa. Before the torque is applied, the angle of twist in each shaft is zero, and the angle of rotation of...
L-A solid circular shaft of varying diameters is subjected to three torques with magnitudes equal to: T, = 600 Ibin, T2 -500 Ib-in and T3 200 Ib-in, as shown in the figure. The thicker segment has a diameter of di 2.83 in, and the other segment has diameter equal to d2 2.38 in. The length of each segment, in inches, is shown in the figure. The shaft is made of steel with G- 3.15 ksi. (a) Draw the torsion diagram...
