A 70 kg stunt pilot begins pulling out of a dive into a vertical circle. If...

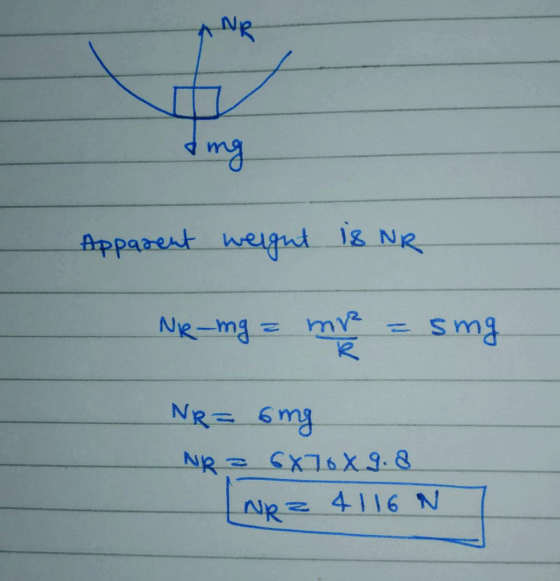

A 70 kg stunt pilot begins pulling out of a dive into a vertical circle. If the plane’s speed at the lowest point of the circle is 80 m/s, what is the apparent weight of the pilot at the lowest point of the pullout? The pilot experiences a force of 5g from the centripetal acceleration at the bottom of the dive.
Homework Answers
Add Answer to:
A 70 kg stunt pilot begins pulling out of a dive into a vertical
circle. If...
A jet pilot performs a vertical loop the loop such that at the lowest point of...
A jet pilot performs a vertical loop the loop such that at the lowest point of the loop, his jet's speed is 924 km/h. a) Calculate the minumum radius of the circle so that the centripetal acceleration at the lowest point does not exceed 13.734 m/s2. b) Calculate the 87 kg pilot's apparent weight at the bottom of the circle. c) Calculate the pilot's apparent weight at the top assuming the jet has a constant speed and that the jet...
A jet pilot takes his aircraft in a vertical loop, as shown. If the jet is...
A jet pilot takes his aircraft in a vertical loop, as
shown.
If the jet is moving at a speed of 1140 km/h
at the lowest point of the loop, determine the minimum radius of
the circle so that the centripetal acceleration at the lowest point
does not exceed 7.0 g's?
Calculate the 69-kg
pilot's effective weight (the force with which the seat pushes up
on him) at the bottom of the circle, and at the top of the circle...
A stunt pilot weighing 0.70 kN performs a vertical circular dive of radius 0.80 km. At...
A stunt pilot weighing 0.70 kN performs a vertical circular dive of radius 0.80 km. At the bottom of the dive, the pilot has a speed of 0.20 km/s which at that instant is not changing. What force does the plane exert on the pilot? 4.3 kN up 5.6 kN down 4.3 kN down 2.3 kN up 5.6 kN up
please help with this question A stunt pilot weighing 0.70 kN performs a vertical circular dive...
please help with this question
A stunt pilot weighing 0.70 kN performs a vertical circular dive of radius 0.80 km. At the bottom of the dive, the pilot has a speed of 0.20 km/s which at that instant is not changing. What force does the plane exert on the pilot? 4.3 kN up 5.6 kN up 2.3 kN up 5.6 kN down 4.3 kN down
The pilot of an airplane executes a constant-speed loop-the-loop maneuver. His path is a vertical circle....
The pilot of an airplane executes a constant-speed loop-the-loop maneuver. His path is a vertical circle. The speed of the airplane is 250 mi/h, and the radius of the circle is 1350 ft. (a) What is the pilot's apparent weight at the lowest point if his true weight is 160 lb? (b) What is his apparent weight at the highest point? (c) What If? Describe how the pilot could experience weightlessness if both the radius and the speed can be...
The pilot of an airplane executes a constant-speed loop-the-loop maneuver. His path is a vertical circle....
The pilot of an airplane executes a constant-speed loop-the-loop maneuver. His path is a vertical circle. The speed of the airplane is 350 mi/h, and the radius of the circle is 1000 ft. (a) What is the pilot's apparent weight at the lowest point if his true weight is 160 lb? lb (b) What is his apparent weight at the highest point? lb (c) What If? Describe how the pilot could experience weightlessness if both the radius and the speed...
A fighter pilot will black out an apparent acceleration above 5 g’s: the normal force of...
A fighter pilot will black out an apparent acceleration above 5 g’s: the normal force of the plane on his body of m*5g. If the pilot wishes to perform vertical circular loops at a constant speed of 300 m/s, what is the smallest possible radius of his loops?
The plot ofan airplane executes constant-speed loop-the-loop maneuver in vertical circle as in the figure below....
The plot ofan airplane executes constant-speed loop-the-loop maneuver in vertical circle as in the figure below. The speed of the airplane is 2.40 × 102 m/s, and the radius of the circle s 3.05 × 103 m. (a) What is the pilot's apparent weight at the lowest point of the circle if his true weight is 740 N? (b) What is his apparent weight at the highest point of the circle? (c) Describe how the pilot could experience weightlessness if...
Problem 3.33: Pilot blackout in a power dive. A jet plane comes in for a downward...
Problem 3.33: Pilot blackout in a power dive. A jet plane comes in for a downward dive as shown in the figure below. The bottom part of the path is a quarter circle having a radius of curvature of 330 m According to medical tests, pilots lose consciousness at an acceleration of 5.5g. (Figure 1) Figure 1 of 1 Part A At what speed (in m/s) will the pilot black out for this dive? Express your answer in meters per...
469) v Q Search 13-55. Determine the maximum constant speed at which the pilot can travel...
469) v Q Search 13-55. Determine the maximum constant speed at which the pilot can travel around the vertical curve having a radius of curvature ρ 800 m, so that he experiences a maximum acceleration a, 8g 78.5 m/s. If he has a mass of 70 kg. determine the normal force he exerts on the seat of the airplane when the plane is traveling at this speed and is at its lowest point. Prob. 13-55
A jet pilot takes his aircraft in a vertical loop, as
shown.
If the jet is moving at a speed of 1140 km/h
at the lowest point of the loop, determine the minimum radius of
the circle so that the centripetal acceleration at the lowest point
does not exceed 7.0 g's?
Calculate the 69-kg
pilot's effective weight (the force with which the seat pushes up
on him) at the bottom of the circle, and at the top of the circle...
A stunt pilot weighing 0.70 kN performs a vertical circular dive of radius 0.80 km. At the bottom of the dive, the pilot has a speed of 0.20 km/s which at that instant is not changing. What force does the plane exert on the pilot? 4.3 kN up 5.6 kN down 4.3 kN down 2.3 kN up 5.6 kN up
please help with this question
A stunt pilot weighing 0.70 kN performs a vertical circular dive of radius 0.80 km. At the bottom of the dive, the pilot has a speed of 0.20 km/s which at that instant is not changing. What force does the plane exert on the pilot? 4.3 kN up 5.6 kN up 2.3 kN up 5.6 kN down 4.3 kN down
The plot ofan airplane executes constant-speed loop-the-loop maneuver in vertical circle as in the figure below. The speed of the airplane is 2.40 × 102 m/s, and the radius of the circle s 3.05 × 103 m. (a) What is the pilot's apparent weight at the lowest point of the circle if his true weight is 740 N? (b) What is his apparent weight at the highest point of the circle? (c) Describe how the pilot could experience weightlessness if...
Problem 3.33: Pilot blackout in a power dive. A jet plane comes in for a downward dive as shown in the figure below. The bottom part of the path is a quarter circle having a radius of curvature of 330 m According to medical tests, pilots lose consciousness at an acceleration of 5.5g. (Figure 1) Figure 1 of 1 Part A At what speed (in m/s) will the pilot black out for this dive? Express your answer in meters per...
469) v Q Search 13-55. Determine the maximum constant speed at which the pilot can travel around the vertical curve having a radius of curvature ρ 800 m, so that he experiences a maximum acceleration a, 8g 78.5 m/s. If he has a mass of 70 kg. determine the normal force he exerts on the seat of the airplane when the plane is traveling at this speed and is at its lowest point. Prob. 13-55
