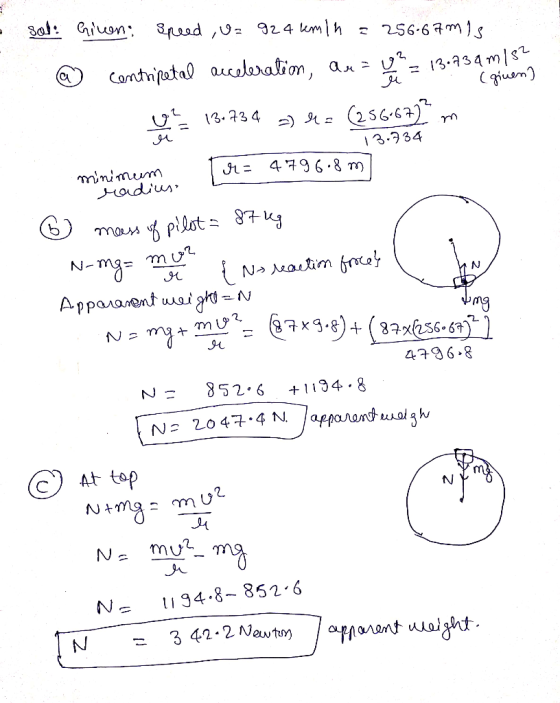

A jet pilot performs a vertical loop the loop such that at the lowest point of...
A jet pilot performs a vertical loop the loop such that at the
lowest point of the loop, his jet's speed is 924 km/h.
a) Calculate the minumum radius of the circle so that the
centripetal acceleration at the lowest point does not exceed 13.734
m/s2.
b) Calculate the 87 kg pilot's apparent weight at the bottom of the circle.
c) Calculate the pilot's apparent weight at the top assuming the
jet has a constant speed and that the jet is inverted, such that
the pilot's head is pointed down.
Homework Answers
Add Answer to:
A jet pilot performs a vertical loop the loop such that at the
lowest point of...
A jet pilot takes his aircraft in a vertical loop, as shown. If the jet is...
A jet pilot takes his aircraft in a vertical loop, as
shown.
If the jet is moving at a speed of 1140 km/h
at the lowest point of the loop, determine the minimum radius of
the circle so that the centripetal acceleration at the lowest point
does not exceed 7.0 g's?
Calculate the 69-kg
pilot's effective weight (the force with which the seat pushes up
on him) at the bottom of the circle, and at the top of the circle...
The pilot of an airplane executes a constant-speed loop-the-loop maneuver. His path is a vertical circle....
The pilot of an airplane executes a constant-speed loop-the-loop maneuver. His path is a vertical circle. The speed of the airplane is 250 mi/h, and the radius of the circle is 1350 ft. (a) What is the pilot's apparent weight at the lowest point if his true weight is 160 lb? (b) What is his apparent weight at the highest point? (c) What If? Describe how the pilot could experience weightlessness if both the radius and the speed can be...
The pilot of an airplane executes a constant-speed loop-the-loop maneuver. His path is a vertical circle....
The pilot of an airplane executes a constant-speed loop-the-loop maneuver. His path is a vertical circle. The speed of the airplane is 350 mi/h, and the radius of the circle is 1000 ft. (a) What is the pilot's apparent weight at the lowest point if his true weight is 160 lb? lb (b) What is his apparent weight at the highest point? lb (c) What If? Describe how the pilot could experience weightlessness if both the radius and the speed...
A 70 kg stunt pilot begins pulling out of a dive into a vertical circle. If...
A 70 kg stunt pilot begins pulling out of a dive into a vertical circle. If the plane’s speed at the lowest point of the circle is 80 m/s, what is the apparent weight of the pilot at the lowest point of the pullout? The pilot experiences a force of 5g from the centripetal acceleration at the bottom of the dive.
The plot ofan airplane executes constant-speed loop-the-loop maneuver in vertical circle as in the figure below....
The plot ofan airplane executes constant-speed loop-the-loop maneuver in vertical circle as in the figure below. The speed of the airplane is 2.40 × 102 m/s, and the radius of the circle s 3.05 × 103 m. (a) What is the pilot's apparent weight at the lowest point of the circle if his true weight is 740 N? (b) What is his apparent weight at the highest point of the circle? (c) Describe how the pilot could experience weightlessness if...
A stunt pilot weighing 0.70 kN performs a vertical circular dive of radius 0.80 km. At...
A stunt pilot weighing 0.70 kN performs a vertical circular dive of radius 0.80 km. At the bottom of the dive, the pilot has a speed of 0.20 km/s which at that instant is not changing. What force does the plane exert on the pilot? 4.3 kN up 5.6 kN down 4.3 kN down 2.3 kN up 5.6 kN up
please help with this question A stunt pilot weighing 0.70 kN performs a vertical circular dive...
please help with this question
A stunt pilot weighing 0.70 kN performs a vertical circular dive of radius 0.80 km. At the bottom of the dive, the pilot has a speed of 0.20 km/s which at that instant is not changing. What force does the plane exert on the pilot? 4.3 kN up 5.6 kN up 2.3 kN up 5.6 kN down 4.3 kN down
A motorbike performs the'' loop the loop' 'stunt where it travels in vertical circular motion. At...
A motorbike performs the'' loop the loop' 'stunt where it travels in vertical circular motion. At the top of the circle the centripetal force is fn+mg=mv^2/r. It must have a minimum speed to stay on the track. The book says to minimise velocity the normal force has to equal zero. My question is how can a normal force be zero if something has to be oppose the static frictional force.
Part A An 20,000 kg stunt plane performs a loop-the-loop, flying in a 260-m-diameter vertical circle....
Part A An 20,000 kg stunt plane performs a loop-the-loop, flying in a 260-m-diameter vertical circle. At the point where the plane is lying straight down, its speed is 55 m/s and it is speeding up at a rate of 12 m/s per second. What is the magnitude of the net force on the plane? You can neglect air resistance Express your answer with the appropriate units. 田因 E31 FrastValue Units net - Submit Incorrect, Try Again; 7 attempts remaining...
A jet pilot takes his aircraft in a vertical loop, as
shown.
If the jet is moving at a speed of 1140 km/h
at the lowest point of the loop, determine the minimum radius of
the circle so that the centripetal acceleration at the lowest point
does not exceed 7.0 g's?
Calculate the 69-kg
pilot's effective weight (the force with which the seat pushes up
on him) at the bottom of the circle, and at the top of the circle...
The plot ofan airplane executes constant-speed loop-the-loop maneuver in vertical circle as in the figure below. The speed of the airplane is 2.40 × 102 m/s, and the radius of the circle s 3.05 × 103 m. (a) What is the pilot's apparent weight at the lowest point of the circle if his true weight is 740 N? (b) What is his apparent weight at the highest point of the circle? (c) Describe how the pilot could experience weightlessness if...
A stunt pilot weighing 0.70 kN performs a vertical circular dive of radius 0.80 km. At the bottom of the dive, the pilot has a speed of 0.20 km/s which at that instant is not changing. What force does the plane exert on the pilot? 4.3 kN up 5.6 kN down 4.3 kN down 2.3 kN up 5.6 kN up
please help with this question
A stunt pilot weighing 0.70 kN performs a vertical circular dive of radius 0.80 km. At the bottom of the dive, the pilot has a speed of 0.20 km/s which at that instant is not changing. What force does the plane exert on the pilot? 4.3 kN up 5.6 kN up 2.3 kN up 5.6 kN down 4.3 kN down
Part A An 20,000 kg stunt plane performs a loop-the-loop, flying in a 260-m-diameter vertical circle. At the point where the plane is lying straight down, its speed is 55 m/s and it is speeding up at a rate of 12 m/s per second. What is the magnitude of the net force on the plane? You can neglect air resistance Express your answer with the appropriate units. 田因 E31 FrastValue Units net - Submit Incorrect, Try Again; 7 attempts remaining...
