Question

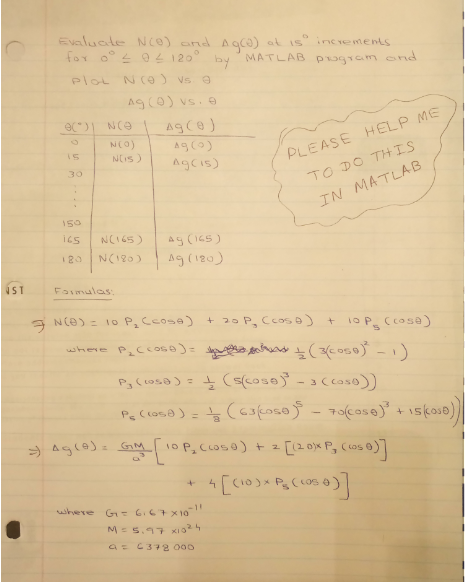

ag(0) vs. NCO) PLEASEHELP ME 30 IN MATLAB 50 Famulas a32 006

Answer 1

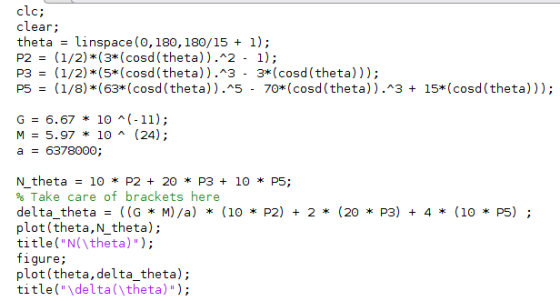

clc; clear; theta linspace (0, 180, 180/15 + 1); P2(1/2)(3*(cosd (theta)).2 - 1); P3(1/2)(5*(cosd (theta)). 3 3*(cosd (theta))); P5(1/8)*(63*(cosd(theta)).5 - 70*(cosd(theta)).3 15*(cosd (theta))) G 6.67 10 (-11); M 5.97 10 (24) N theta-10 * P2 20 * P3 10 * P5; % Take care of brackets here delta_theta((G* M)/a) *(10 P2) 2 * (20 P3) 4 * (10 *P5); plot(theta,N theta); title("N(\theta)") figure; Lot (theta, delta_theta); title("\delta(\theta)");

Code in text format...

clc;
clear;
theta = linspace(0,180,180/15 + 1);
P2 = (1/2)*(3*(cosd(theta)).^2 - 1);
P3 = (1/2)*(5*(cosd(theta)).^3 - 3*(cosd(theta)));
P5 = (1/8)*(63*(cosd(theta)).^5 - 70*(cosd(theta)).^3 + 15*(cosd(theta)));

G = 6.67 * 10 ^(-11);
M = 5.97 * 10 ^ (24);
a = 6378000;

N_theta = 10 * P2 + 20 * P3 + 10 * P5;
% Take care of brackets here
delta_theta = ((G * M)/a) * (10 * P2) + 2 * (20 * P3) + 4 * (10 * P5) ;
plot(theta,N_theta);
title("N(\theta)");
figure;
plot(theta,delta_theta);
title("\delta(\theta)");

Output:-

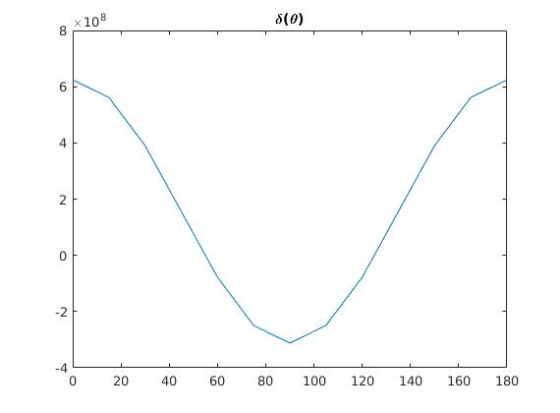

δ(0) x 108 -2 -4 0 20 40 60 80100 120 140 160 180

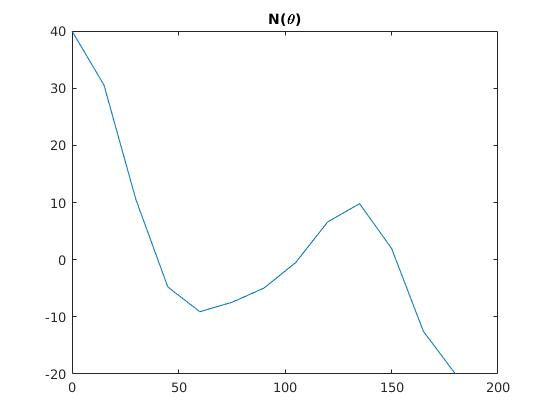

N(0) 40 30 20 10 0 -10 -20 L 0 50 100 150 200

In this equation delta_theta = ((G * M)/a) * (10 * P2) + 2 * (20 * P3) + 4 * (10 * P5) ; Kindly edit the brackets if needed as there is one less bracket in the document uploaded.
