For MATLAB users. Can you please type the answers for the MATLAB sections.
Homework Answers
Add Answer to:

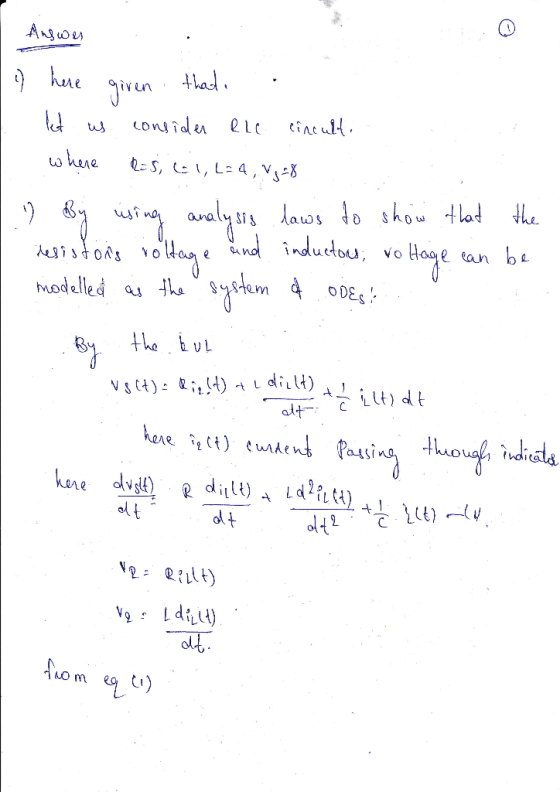

For MATLAB users. Can you please type the answers for the MATLAB sections. Consider the RLC circuit where R - 5, C- 1, L- 4 and Vs - 8 1. Use circuit analysis laws to show that the resistor's vol...
I just need help with question 4 only: Consider the RLC circuit where R = 5, C = 1, L = 4 and Vs = 8. 1. Use circuit analysis laws to show that the resistor's voltage and induc- tor's voltage...
I just need help with question 4 only:

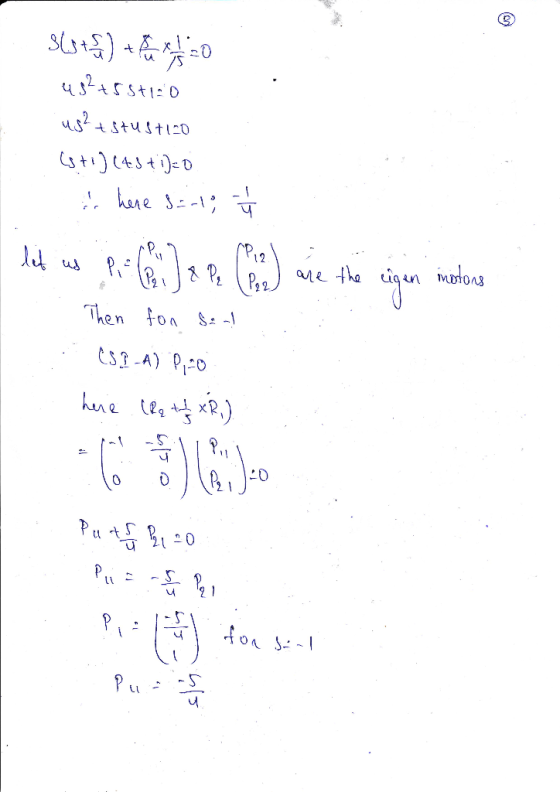

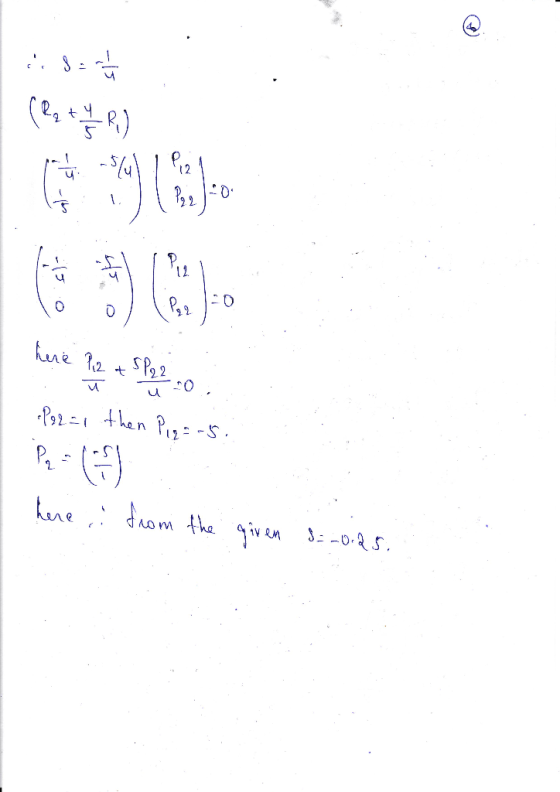

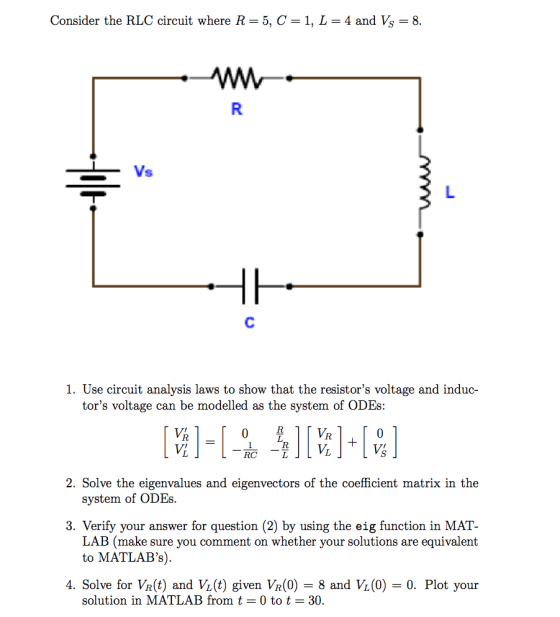

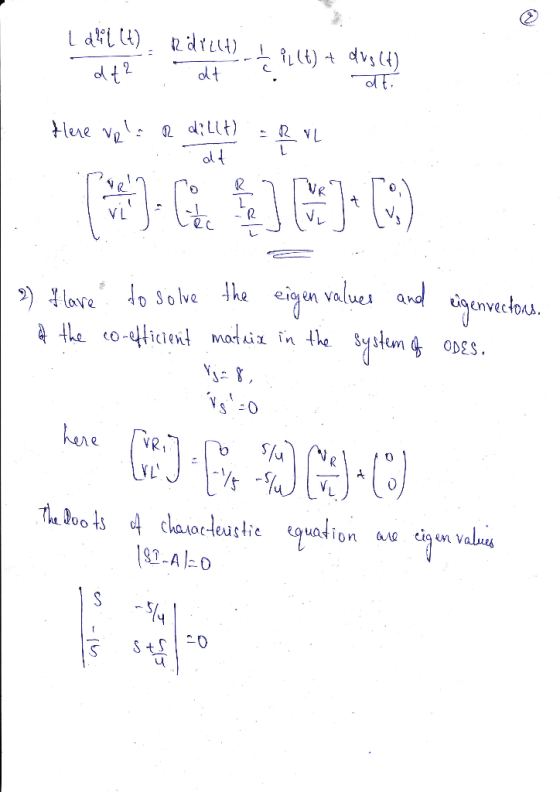

Consider the RLC circuit where R = 5, C = 1, L = 4 and Vs = 8. 1. Use circuit analysis laws to show that the resistor's voltage and induc- tor's voltage can be modelled as the system of ODEs VR 0 R RC L 2. Solve the eigenvalues and eigenvectors of the coefficient matrix in the system of ODEs. 3. Verify your answer for question (2) by using the eig...
Consider the RLC circuit where R = 5, C = 1, L = 4 and V = 8. 1. Use circuit analysis laws to show that the resistor's voltage and induc- tor's voltage can be modelled as the system of ODEs...
Consider the RLC circuit where R = 5, C = 1, L = 4 and V = 8. 1. Use circuit analysis laws to show that the resistor's voltage and induc- tor's voltage can be modelled as the system of ODEs し」L 2. Solve the eigenvalues and eigenvectors of the coefficient matrix in the system of ODEs. 3. Verify your answer for question (2) by using the eig function in MAT- LAB (make sure you comment on whether your solutions...
ONLY NEED SOLUTION TO QUESTION 4 PLEASE, THANK YOU (PLEASE MAKE SURE TO PLOT THE SOLUTION IN MATLAB) Part A (Based off week 7 Workshop content) Consider the RLC circuit where R = 5, C = 1, L = 4 and...
ONLY NEED SOLUTION TO QUESTION 4 PLEASE, THANK
YOU
(PLEASE MAKE SURE TO PLOT THE SOLUTION IN
MATLAB)
Part A (Based off week 7 Workshop content) Consider the RLC circuit where R = 5, C = 1, L = 4 and Vs = 8. 1. Use circuit analysis laws to show that the resistor's voltage and induc tor's voltage can be modelled as the system of ODEs: L RC i the system of ODEs 3. Verify your answer for question...
Part A (Based off week 7 Workshop content) Consider the RLC circuit where R = 5,...
Part A (Based off week 7 Workshop content) Consider the RLC circuit where R = 5, C = 1, L = 4 and VS = 8. 1. Use circuit analysis laws to show that the resistor’s voltage and inductor’s voltage can be modelled as the system of ODEs: V 0 R V 0 L = 0 R L − 1 RC − R L VR VL + 0 V 0 S 2. Solve the eigenvalues and eigenvectors of the coefficient...
Please use MATLAB for the specified parts, I appreciate the help! 1. Complex Numbers and phasor...
Please use MATLAB for the specified parts, I appreciate the
help!
1. Complex Numbers and phasor analysis can be used to solve many problems. For example if we want to determine the currents of each of the voltage sources in the following circuit, VI ov then we can use a technique called mesh analysis to write mesh equations that involve the currents of each source. Let libe the current of the voltage source vl = 2 cos(t), I be the...
I just need help with question 4 only:
Consider the RLC circuit where R = 5, C = 1, L = 4 and Vs = 8. 1. Use circuit analysis laws to show that the resistor's voltage and induc- tor's voltage can be modelled as the system of ODEs VR 0 R RC L 2. Solve the eigenvalues and eigenvectors of the coefficient matrix in the system of ODEs. 3. Verify your answer for question (2) by using the eig...
Consider the RLC circuit where R = 5, C = 1, L = 4 and V = 8. 1. Use circuit analysis laws to show that the resistor's voltage and induc- tor's voltage can be modelled as the system of ODEs し」L 2. Solve the eigenvalues and eigenvectors of the coefficient matrix in the system of ODEs. 3. Verify your answer for question (2) by using the eig function in MAT- LAB (make sure you comment on whether your solutions...
ONLY NEED SOLUTION TO QUESTION 4 PLEASE, THANK
YOU
(PLEASE MAKE SURE TO PLOT THE SOLUTION IN
MATLAB)
Part A (Based off week 7 Workshop content) Consider the RLC circuit where R = 5, C = 1, L = 4 and Vs = 8. 1. Use circuit analysis laws to show that the resistor's voltage and induc tor's voltage can be modelled as the system of ODEs: L RC i the system of ODEs 3. Verify your answer for question...
Please use MATLAB for the specified parts, I appreciate the
help!
1. Complex Numbers and phasor analysis can be used to solve many problems. For example if we want to determine the currents of each of the voltage sources in the following circuit, VI ov then we can use a technique called mesh analysis to write mesh equations that involve the currents of each source. Let libe the current of the voltage source vl = 2 cos(t), I be the...
