ONLY NEED SOLUTION TO QUESTION 4 PLEASE, THANK YOU
(PLEASE MAKE SURE TO PLOT THE SOLUTION IN MATLAB)

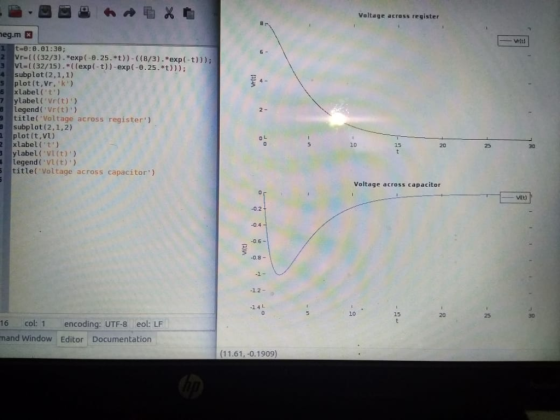

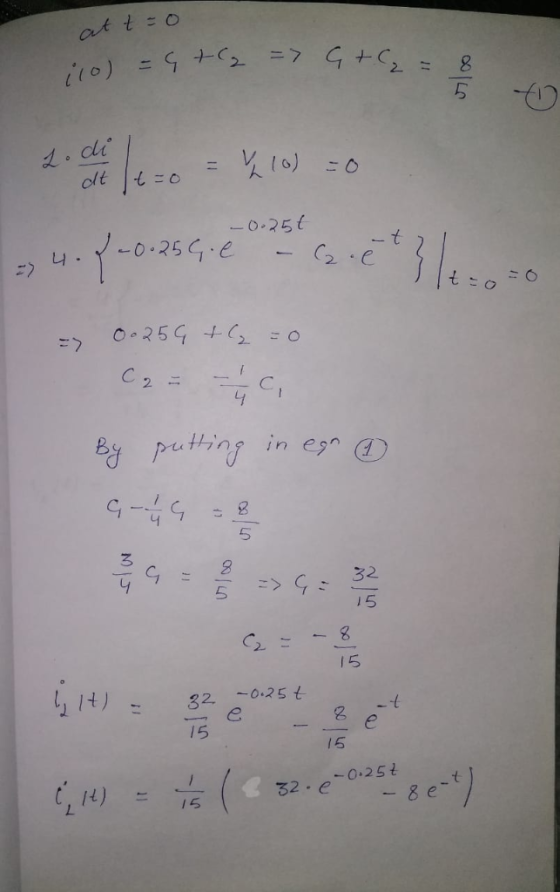

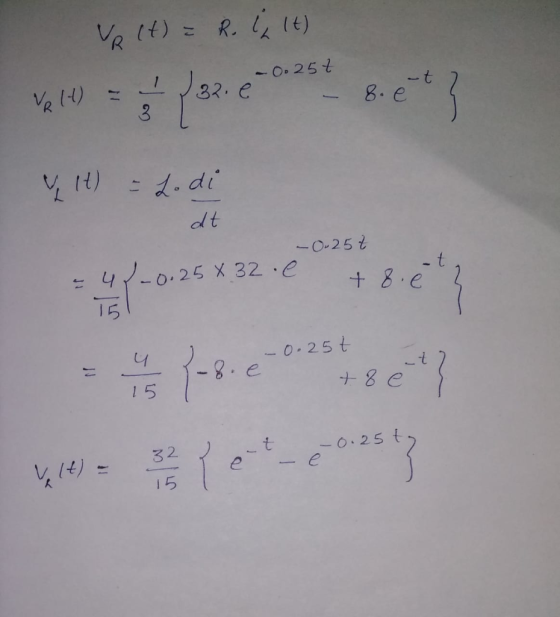

#MATLAB CODE#
t=0:0.01:30;
Vr=(((32/3).*exp(-0.25.*t))-((8/3).*exp(-t)));
Vl=((32/15).*((exp(-t))-exp(-0.25.*t)));
subplot(2,1,1)
plot(t,Vr,'k')
xlabel('t')
ylabel('Vr(t)')
legend('Vr(t)')
title('Voltage across register')
subplot(2,1,2)
plot(t,Vl)
xlabel('t')
ylabel('Vl(t)')
legend('Vl(t)')
title('Voltage across capacitor')
