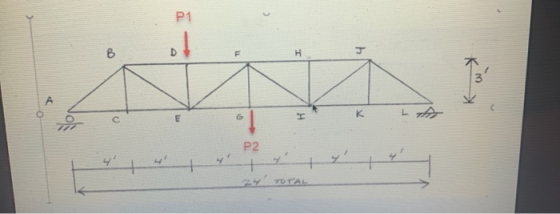

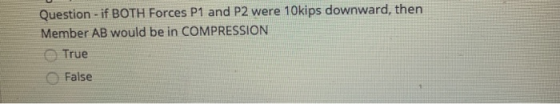

Question - if BOTH Forces P1 and P2 were 10kips downward, then Member AB would be...

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

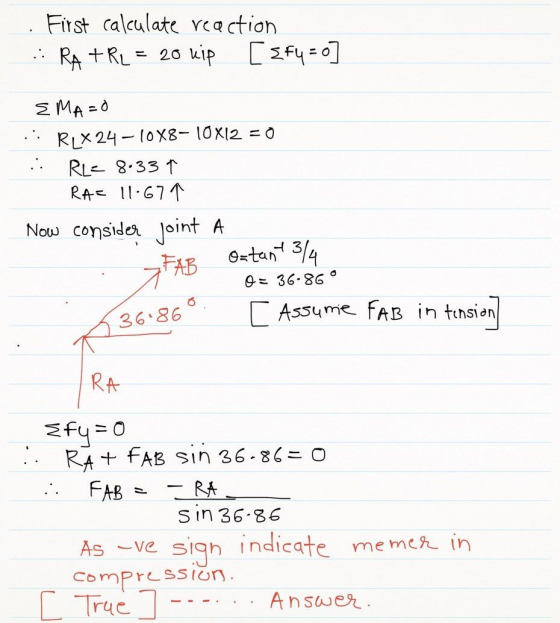

. First calculate reaction RA+ R₂ = 20 kip [ {F4 = 0] EMA=0 .: Rix24-10X8-10X12 = 0 .. RLE 8.33 ↑ RA= 11-67 Now consider Join

Answer 2

Similar Homework Help Questions

Set P1 = 8 kN and P2 = 11 kN . Determine the force in member...

Set P1 = 8 kN and P2 = 11 kN . Determine the force in member AB,AF,BC,BF,CD,CE,DE,EF,and FG and state if the member is in tension or compression. OK - 2m - -1 m
Set P1 = 35 kN and P2 = 14 kN . Determine the force in member...

Set P1 = 35 kN and P2 = 14 kN . Determine the force in member AB, and state if the member is in tension or compression. Determine the force in member AE, and state if the member is in tension or compression. Determine the force in member AF, and state if the member is in tension or compression. Determine the force in member BC, and state if the member is in tension or compression. Determine the force in member...
2) Calculate the internal forces in each member of the truss shown below, and indicate if they ar...

2) Calculate the internal forces in each member of the truss shown below, and indicate if they are in tension (T) or compression (C). P1 4 kN and P2 4 kN 30° 3 m Im P2 2) Calculate the internal forces in each member of the truss shown below, and indicate if they are in tension (T) or compression (C). P1 4 kN and P2 4 kN 30° 3 m Im P2

For the truss shown below, if P1 = 78 N, P2 = 86 N, and P3...

For the truss shown below, if P1 = 78 N, P2 = 86 N, and P3 = 95 N, and if d = 8 m, calculate the force on member FC (positive for compression, negative for tension). For the truss shown below, if P1 = 66 N. P2 = 69 N and P3 = 76 N, and for d = 6 m, calculate the force in member FB. (Use positive numbers for compression forces, and negative numbers for tensile forces)...
Determine the forces in each member Forces: P1= 3 Kip. P2=12 Kip. P3=20 Kip. P4= 18...

Determine the forces in each member Forces: P1= 3 Kip. P2=12 Kip. P3=20 Kip. P4= 18 Kip Dimensions: B= 5 H1= 8 H2=2.25 H3= .25 Need help in solving this problem. Please show work, so I can learn how to do it. Thank you
or question 15 m P2 D 2 m 5: Determine the force in each member of...

or question 15 m P2 D 2 m 5: Determine the force in each member of the truss and state if the members are in tension or compression. Set P1-20 kN, P2 10 kN What is the force in member CD (kN)? What is the force in Is it in Tension or compression? CB (kN)? What is the force in member DB (KN)? Is it in Tension or compression? What s the force in member DA KN Is it in...

13kN A Using "Method of Joints”, determine the forces supported by the member AB, AC and...

13kN A Using "Method of Joints”, determine the forces supported by the member AB, AC and BC of the truss shown in the figure. State whether each member is in tension or compression. 600 600- B C 3 m
Part A Set Pi -6 kN and P2 11 kN. (Figure 1) Determine the force in member AB, and state if the m...

Part A Set Pi -6 kN and P2 11 kN. (Figure 1) Determine the force in member AB, and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive value in the case of tension. kN AB Previous Answers Request Answer Figure XIncorrect; Try Again; 2 attempts remaining Part B Determine the force in member AF, and state if...
1. A Using "Method of Joints", determine the forces supported by the member AB, AC and...

1. A Using "Method of Joints", determine the forces supported by the member AB, AC and BC of the truss shown in the figure. State whether each memberis in tension or compression. P=8 KN. 60° 600 B 3 m

Calculate the internal forces in each member of the truss shown below, and indicate if they are i...

Calculate the internal forces in each member of the truss shown below, and indicate if they are in tension (T) or compression (C). P1 = 600 kN and P2 = 400 45° 45° 4 m 4 m 4 m 45° 45° 4 m 4 m 4 m
