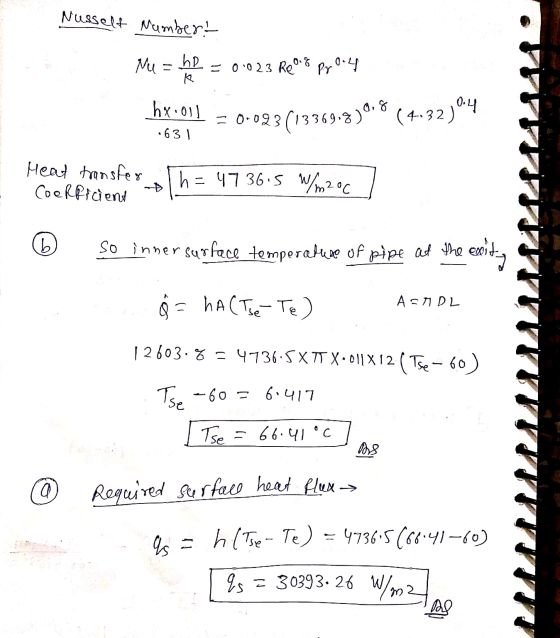

![Nusselt Numbert Mu he R = 0.023 Reorg Pr 0.4 hx.01] .631 = 0.023(13369.870.8 (4.32) 0.4 Heat transfer Coerficient h=473615 W/](http://img.homeworklib.com/questions/005df860-7625-11ec-918b-75e4f25c3cec.png?x-oss-process=image/resize,w_560)
Add Answer to:

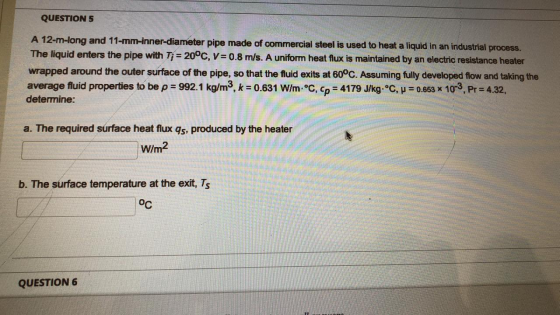

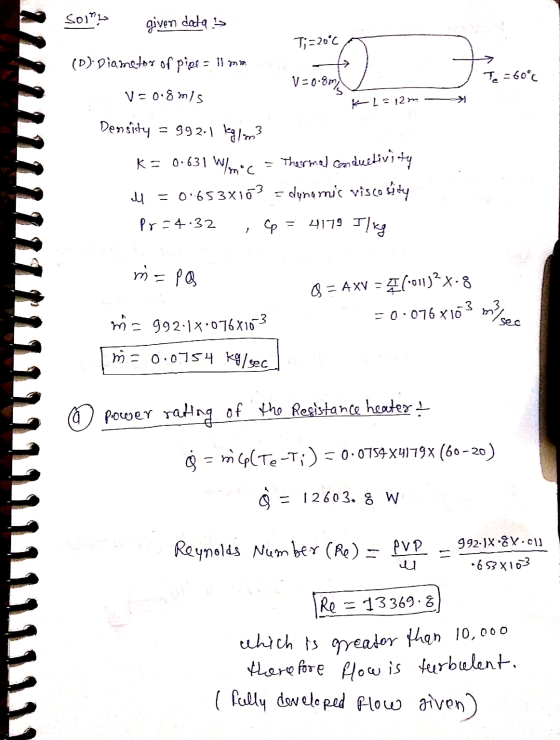

QUESTION 5 A 12-m-long and 11-mm-inner-diameter pipe made of commercial steel is used to heat a...
Heat transfer
A 10 m long and 10 mm inner diameter pipe made of commercial steel (roughness height = 0.046 mm) is used to heat a liquid in an industrial process. The liquid enters the pipe with Tin = 25oC and V = 0.8 m/s. A uniform heat flux is maintained by an electric resistance heater wrapped around the outer surface of the pipe so that the fluid exits at Texit = 75oC. Taking the average fluid properties to be: ρ =...
In the final stages of production, a pharmaceutical is sterilized by heating it from 25 to 75°C a...
In the final stages of production, a pharmaceutical is sterilized by heating it from 25 to 75°C as it moves at 0.22 m/s through a straight thin-walled stainless steel tube of 12.7-mm diameter. A uniform heat flux is maintained by an electric resistance heater wrapped around the outer surface of the tube. If the tube is 10 m long, what is the required heat flux? If fluid enters the tube with a fully developed velocity profile and a uniform temperature...
4. (25 pts) Water is flowing inside a thin wall, smooth pipe of diameter 0.05 m...
4. (25 pts) Water is flowing inside a thin wall, smooth pipe of diameter 0.05 m at a mass flowrate of 0.3 kg/s. The water enters the pipe at a mean temperature Tm,i= 80 °C and exits at Tm,o= 80 °C while the pipe surface temperature is maintained at Ts= 20 °C along its entire length. a. Is the flow turbulent or laminar? b. Calculate the average convection heat transfer coefficient inside the tube. c. Calculate the length of the...
6 Water is heated in a pipe by exchanging heat with a warmer fluid that flows outside the pipe. Inside diameter of the pipe is dn 0.045 m and outside diameter dour0.05 m. Mean velocity of the water i...
6 Water is heated in a pipe by exchanging heat with a warmer fluid that flows outside the pipe. Inside diameter of the pipe is dn 0.045 m and outside diameter dour0.05 m. Mean velocity of the water in the pipe is um-0.31 m/s and the bulk temperature is 323 K (density 988 kg m-3; viscosity 0.00055 kg m' sı. Pr 3.56, thermal conductivity k 0.64 W m1 Kt). The material of the pipe has thermal conductivity k 0.61 W...
A pipe made of stainless steel (k = 45 W / m*K) with an internal diameter...
A pipe made of stainless steel (k = 45 W / m*K) with an internal diameter of 5 cm and an outer diameter of 5.5 cm is carrying a fluid at a temperature of 80 °C. The heat transfer coefficient for the fluid inside the pipe is 1000 W / m2 *K. The heat transfer coefficient of the air is 5 W / m2 *K and the air at a substantial distance from the pipe is at 25 °C. At...
2- (50 pts.) A fluid flow in a circular pipe is heated with a constant heat...
2- (50 pts.) A fluid flow in a circular pipe is heated with a constant heat flux. The pipe diameter is set to D=0.2 m and the length of the pipe to L = 1.0 m. The inlet temperature is 300 K and the inlet velocity is uniform. Use the following air properties: p= 1 kg/m?, u=4x10-5 Pa-s, k=0.03 W/m-K. The Reynolds number is Rep and the Prandtl number to Pr=1. A section of the pipe is heated with a...
Water enters a 5-mm diameter and 13-m long tube at 15 °C with a velocity of...
Water enters a 5-mm diameter and 13-m long tube at 15 °C with a velocity of 0.3 m/s and leaves at 45 °C. The tube is subject to a uniform heat flux of 2000 W/m2. Assume the following properties of water: p = 996 kg/m3, Cp = 4178 J/kg.K, K = 0.615 W/m.K. u = 0.798 x 10-kg/mus. Pe=5.42. (7) What is the average convective heat transfer coefficient considering the entire length of the pipe? (a) 791 W/m2K (b) 681...
Liquid flows in a metal pipe with an inner diameter of D1 = 22 mm and...
Liquid flows in a metal pipe with an inner diameter of D1 = 22 mm and an outer diameter of D2 = 32 mm. The thermal conductivity of the pipe wall is 12 W/m·K. The inner surface of the pipe is coated with thin polyvinylidene chloride (PVDC) lining. Along a length of 1 m, the pipe outer surface is exposed to convection heat transfer with hot gas, at T∞ = 100°C and h = 5 W/m2·K, and thermal radiation with...
Problem 3: In a molten-salt nuclear reactor, radioactive liquid is flowing through a cylindrical pipe of diameter D. Fi...
Problem 3: In a molten-salt nuclear reactor, radioactive liquid is flowing through a cylindrical pipe of diameter D. Fission in the liquid results in a uniform internal heat generation of à W/m3. The pipe wall also has a heater on it that can provide a uniform surface heating rate of q" W/m2. The radioactive liquid has a specific heat capacity of Cp J/kg-K, a mass flowrate of m kg/s, and an inlet temperature of Tm, Conduction in the fluid in...
2. (10 points) A pharmaceutical fluid is sterilized by heating it from 25 to 75 °C...
2. (10 points) A pharmaceutical fluid is sterilized by heating it from 25 to 75 °C as it moves at 0.2 m/s through a straight thin-walled stainless steel tube of 12.7-mm diameter that is 10 m long. A uniform heat flux is maintained by an electric resistance heater wrapped around the outer surface of the straight tube. The pharmaceutical fluid properties may be approximated as: p = 1000 kg/mº, cp = 4 kJ/kg-K, u = 2.102 kg/s-m, k = 1...
In the final stages of production, a pharmaceutical is sterilized by heating it from 25 to 75°C as it moves at 0.22 m/s through a straight thin-walled stainless steel tube of 12.7-mm diameter. A uniform heat flux is maintained by an electric resistance heater wrapped around the outer surface of the tube. If the tube is 10 m long, what is the required heat flux? If fluid enters the tube with a fully developed velocity profile and a uniform temperature...
4. (25 pts) Water is flowing inside a thin wall, smooth pipe of diameter 0.05 m at a mass flowrate of 0.3 kg/s. The water enters the pipe at a mean temperature Tm,i= 80 °C and exits at Tm,o= 80 °C while the pipe surface temperature is maintained at Ts= 20 °C along its entire length. a. Is the flow turbulent or laminar? b. Calculate the average convection heat transfer coefficient inside the tube. c. Calculate the length of the...
6 Water is heated in a pipe by exchanging heat with a warmer fluid that flows outside the pipe. Inside diameter of the pipe is dn 0.045 m and outside diameter dour0.05 m. Mean velocity of the water in the pipe is um-0.31 m/s and the bulk temperature is 323 K (density 988 kg m-3; viscosity 0.00055 kg m' sı. Pr 3.56, thermal conductivity k 0.64 W m1 Kt). The material of the pipe has thermal conductivity k 0.61 W...
2- (50 pts.) A fluid flow in a circular pipe is heated with a constant heat flux. The pipe diameter is set to D=0.2 m and the length of the pipe to L = 1.0 m. The inlet temperature is 300 K and the inlet velocity is uniform. Use the following air properties: p= 1 kg/m?, u=4x10-5 Pa-s, k=0.03 W/m-K. The Reynolds number is Rep and the Prandtl number to Pr=1. A section of the pipe is heated with a...
Water enters a 5-mm diameter and 13-m long tube at 15 °C with a velocity of 0.3 m/s and leaves at 45 °C. The tube is subject to a uniform heat flux of 2000 W/m2. Assume the following properties of water: p = 996 kg/m3, Cp = 4178 J/kg.K, K = 0.615 W/m.K. u = 0.798 x 10-kg/mus. Pe=5.42. (7) What is the average convective heat transfer coefficient considering the entire length of the pipe? (a) 791 W/m2K (b) 681...
Problem 3: In a molten-salt nuclear reactor, radioactive liquid is flowing through a cylindrical pipe of diameter D. Fission in the liquid results in a uniform internal heat generation of à W/m3. The pipe wall also has a heater on it that can provide a uniform surface heating rate of q" W/m2. The radioactive liquid has a specific heat capacity of Cp J/kg-K, a mass flowrate of m kg/s, and an inlet temperature of Tm, Conduction in the fluid in...
2. (10 points) A pharmaceutical fluid is sterilized by heating it from 25 to 75 °C as it moves at 0.2 m/s through a straight thin-walled stainless steel tube of 12.7-mm diameter that is 10 m long. A uniform heat flux is maintained by an electric resistance heater wrapped around the outer surface of the straight tube. The pharmaceutical fluid properties may be approximated as: p = 1000 kg/mº, cp = 4 kJ/kg-K, u = 2.102 kg/s-m, k = 1...
