Please SOLVE NUMBER SIX c' , e SOLVE VING FORCE METHOD 25 5 SOLVE VIINE SLOPE...

Question

Question

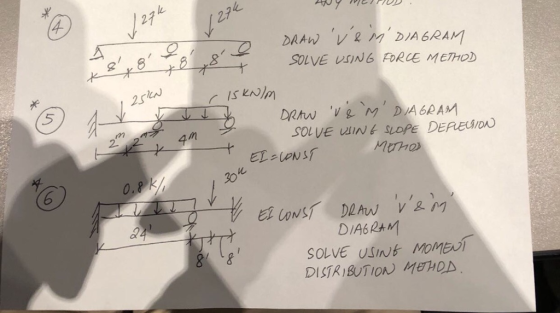

c , e SOLVE VING FORCE METHOD 25 5 SOLVE VIINE SLOPE DEPEUIDA Mirho 2. 2 30C 0.8 SOLVE USINb MOME0) DISTRIBUTIOA MTHOA

Please SOLVE NUMBER SIX

engineering Civil-Engineering

Answer 1

Answer #1

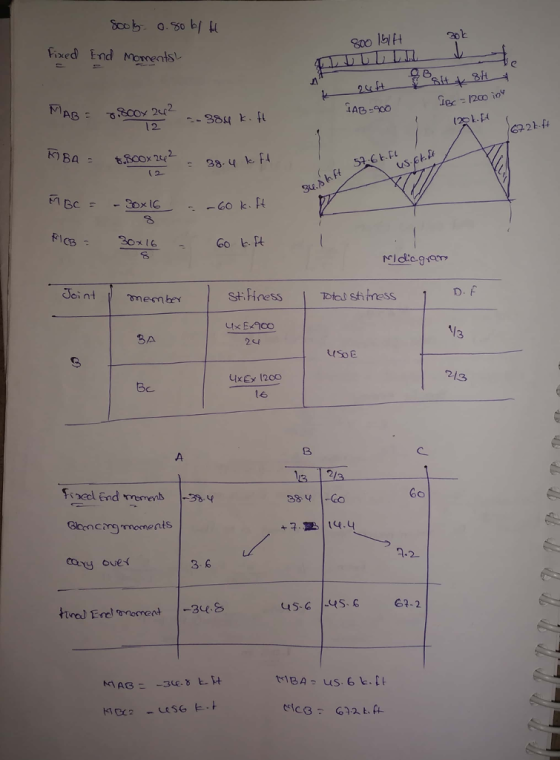

Scob o.so bf Fixed End Moments 38-y . F4 uS 1 2- 3Ox/6 Goヒ.pt - Joi nt membe D. A 113 BA 2니 UsoE 213 IxE 120o 16 Go Boncngmom

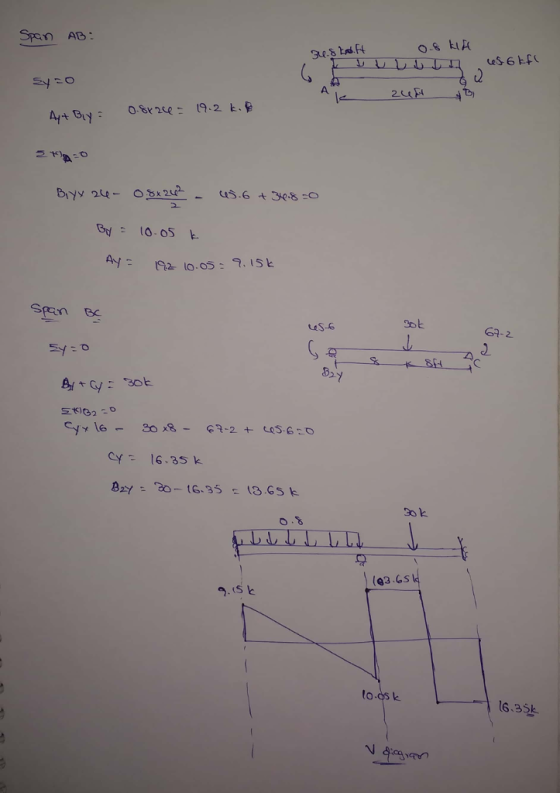

Answer 2

Similar Homework Help Questions

Please solve all unknowns using slope-deflection method, EI is constant. There is a hinge in the...

Please solve all unknowns using slope-deflection method, EI is constant. There is a hinge in the exact middle of member BC, and I'm not sure how this affects the analysis, and the moments. Please provide a written explanation about how to deal with the hinge. Thank you! solve using slope -deflecton method (EE is const rn HINGE 3 m 5
Using the integration method, solve for the deflection and slope at x=2. E is given as...

Using the integration method, solve for the deflection and slope at x=2. E is given as 200 Gpa and I=65*10^6 mm^4 1 10KN X 3m
***PLEASE SOLVE BY METHOD OF SECTIONS IF POSSIBLE******PLEASE SOLVE BY METHOD OF SECTIONS IF POSSIBLE*** 3....

***PLEASE SOLVE BY METHOD OF SECTIONS IF POSSIBLE******PLEASE SOLVE BY METHOD OF SECTIONS IF POSSIBLE*** 3. Determine the force in members EF, EP, and LK of the Baltimore bridge truss and state if the members are in tension or compression. Also, indicate all zero-force members. 2 m PR 2 m ООО D E F G H 2 kN 2 KN 5 kN 3 kN -8 @ 2 m = 16 m

(can be solve by slope deflection ) Using displacement method of analysis: (a) Draw bending moment...

(can be solve by slope deflection ) Using displacement method of analysis: (a) Draw bending moment diagram; (b) Draw shear force diagram; (c) Draw axial force diagram; (d) Find nodal displacements and rotations at B and D. P=30 kn H=60 KN B EI DI EI E 1 2EI pin fixed 8m
Solve the beam using force method. Spring stiffness, Ks = 200 KN/m 5 kN/m A E)...

Solve the beam using force method. Spring stiffness, Ks = 200 KN/m 5 kN/m A E) м В 10 m бм
Problem No.1: Solve the following indeterminate beams using slope-deflection method. Find reactions draw shear force and...

Problem No.1: Solve the following indeterminate beams using slope-deflection method. Find reactions draw shear force and bending moment diagrams. Also show your calculations: 30 kN 10 kN/m 4 m 9 m 6 m El Constant

please show steps cleary 7. Solve the following equations for x: b)3(2x-5)-(2-3x)--2+4x 9 15 5 c)H...

please show steps cleary 7. Solve the following equations for x: b)3(2x-5)-(2-3x)--2+4x 9 15 5 c)H x-μ e) x3+8x2+15x-0 1 (4x-5)2-5-20 (use the square-root method) g) Solve using the quadratic formula: 3x2+2x -8-0. Show your steps clearly. x+4x-8-0. Show your steps clearly h) Solve by completing the Square: 8. Determine an equation for the line a) with slope of 5/3 and y-intercept of 5: b) with slope 7/6 and passing through the point (6.2) parallel to the line in #...
USE SLOPE-DEFLECTION METHOD Problem 3. Solve the moments at all joints and supports of the given...

USE SLOPE-DEFLECTION METHOD Problem 3. Solve the moments at all joints and supports of the given frame using slope-deflection method. Assume B, C, and E are fixed connected and A and D are pins. E = 29 x 10ksi. 0.5k/ft 2k Inc = 400 in c 8'ft ICE = 400 in 3k Ipc = 500 in LAB = 600 in 8'ft 24 ft 12 ft
Solve for the moment diagram using: 1. The slope-deflection method and then check your work by...

Solve for the moment diagram using: 1. The slope-deflection method and then check your work by using 2.Method of consistent deformation C, EI 0.5L 0.5L

Use the energy method to solve for the deflection and slope at point x=a. Assume that...

Use the energy method to solve for the deflection and slope at point x=a. Assume that a=1m, b=1m, q=4kN/m, P=6kN, and EI=5MN*m^2. Please also draw the FBDs for both global and local cut-out equilibriums. The answers should be , and . S = -1.1 * 10-3
