4.
Solution:

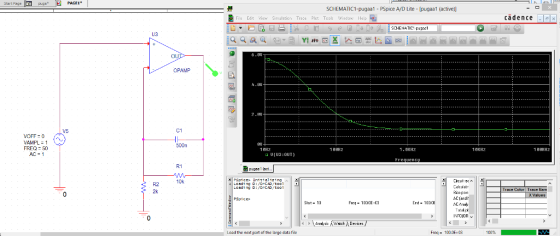

Using PSPICE, the given figure with generic opamp part is simulated to find the frequency response.

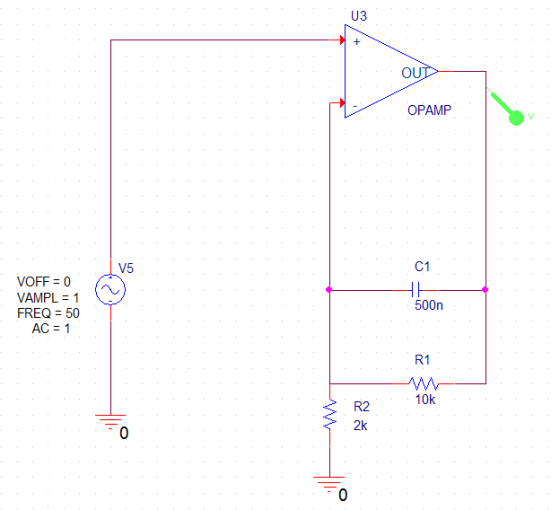

Circuit Diagram:

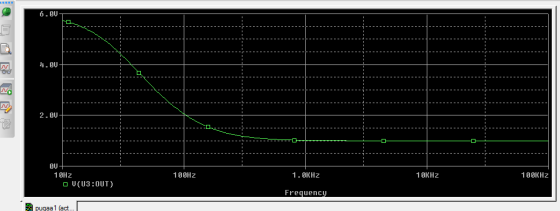

Output:(Frequency response curve)
Note:
Add Answer to:

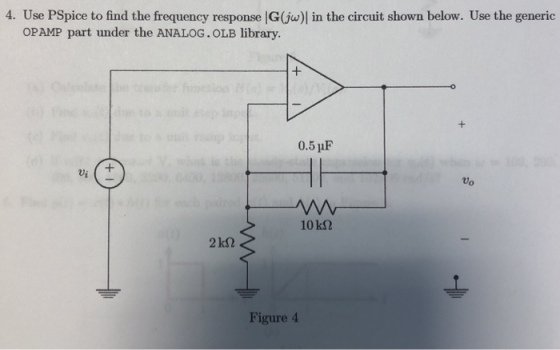

4. Use PSpice to find the frequency response |G(jw)l in the circuit shown below. Use the...
the circuit shown, 1. Find the transfer function H(jw) 2. If R R2 12 and L1mH, plot the frequency response (both the ga...
the circuit shown, 1. Find the transfer function H(jw) 2. If R R2 12 and L1mH, plot the frequency response (both the gain and the phase shift) of the circuit; 3. Identify the type of filter the circuit is, and state the break (cut off) frequency. R1 v(t)Vcos(ut) L1 R2 Figure 1
the circuit shown, 1. Find the transfer function H(jw) 2. If R R2 12 and L1mH, plot the frequency response (both the gain and the phase shift) of...
PART 1 -PSPICE (27 MARK 1.) Use PSPICE to build the following circuit in figure 1...
PART 1 -PSPICE (27 MARK 1.) Use PSPICE to build the following circuit in figure 1 below. Simulate and take the screenshot of the circuit and the simulation output files for Ix, ly, Vbc, Vbd, and Vd. Post your screen shot in word document (5 Marks) tỷ 10 tỉ wome 40 046 bbw b 10 C 0.250 d 24 e 40f - W 120 x . Vs(t)=8cos(2t-30) volts + 129 23a is = 2/15A Figure 1 2.) Find the input...
<Chapter (9) HW - 2% Problem 9.24 PSpice Multisim Part A For the circuit shown in...
Problem 9.24 PSpice Multisim Part A For the circuit shown in (Figure 1), find the frequency at which the impedance Zab is purely resistive. Suppose R = 400 22 L = 350 mH and C = 50 uF. Express your answer using three significant figures.Part B Find the value of Zab at the frequency of Part A. Express your answer to two significant figures and include the appropriate units.
Problem 4: /25 For the circuit shown below, use frequency-domain circuit analysis techniques to determine (a)...
Problem 4: /25 For the circuit shown below, use frequency-domain circuit analysis techniques to determine (a) the voltage transfer function Hw) of the circuit; (b) the magnitude response H(o) of the circuit; and (c) the phase response (0) of the circuit. (d) Based on the results of parts (a) - (c), identify the type of filter circuit shown. R L 10000 + + Vout(t)
Find the transfer function T(jw) for the circuit below. Also find the magnitude response, 0 OP000...
Find the transfer function T(jw) for the circuit below. Also find the magnitude response, 0 OP000 + + C R 1 phase response and draw the bode plots for the above circuit and derived transfer function. (10 points)
2. Use PSpice to find Io and Vo in the circuit below. 50 nF 10mH 20Ω...
2. Use PSpice to find Io and Vo in the circuit below. 50 nF 10mH 20Ω 1()cos(10t) v 2052 Figure 2 Let v1-o, v1-5, TD-0, TR-u,F-u, P-2.Sm, and PER-Sm
6.1.1 In order to illustrate that the LISN essentially presents 50Ω impedances between phase and ground and between neutral and ground, use PSPICE to plot the frequency response of the impedance look...
6.1.1 In order to illustrate that the LISN essentially presents 50Ω impedances between phase and ground and between neutral and ground, use PSPICE to plot the frequency response of the impedance looking into one side of the LISN shown in Fig. P6.1.1 over the conducted emission frequency range of 150 kHz-30 MHz for two cases of impedance seen looking into the power net: (1) short-circuit load and (2) open-circuit load. Determine the values at each end of the frequency band....
Problem 14.18 PSpice Multisim Part C Find Q For the bandpass filter shown the fiqure R 9 kSn,C 8 ...
Problem 14.18 PSpice Multisim Part C Find Q For the bandpass filter shown the fiqure R 9 kSn,C 8 nF , and L = 12mH (Figure 1) vec Q0.136083 Figure 1 of 1> SubmitPre ious Ans Request Answer X Incorrect; Try Again; 3 attempts remaining ▼ Part D Find wel vec krad/s cl Problem 14.18 PSpice Multisim Part E k2, C 8 For the bandpass filter shown the figure R nF, and L 12 mHH (Figure 1) 9 Find fal...
please use PSPICE and put the solutuin in clear way . pspice is requird please Question...
please use PSPICE and put the solutuin in clear way .
pspice is requird please
Question #1: Passive Filters For the filter shown in Figure 1, using PSPICE a) Show your implementation of this circuit using PSPICE b) Plot the Bode Diagram (magnitude plot and phase plot) c) From the result of part b, what is the type of this filter? d) From part b Find Wc1,Wc2,W,, Q, and B 8k12 10 mH 10 nF Figure 1
Problem 2: /25 For the circuit shown below, use frequency-domain circuit analysis techniques to determine (a)...
Problem 2: /25 For the circuit shown below, use frequency-domain circuit analysis techniques to determine (a) the voltage transfer function H(o) of the circuit; (b) the magnitude response H(o) of the circuit; and (c) the phase response (0) of the circuit. (d) Based on the results of parts (a) - (c), identify the type of filter circuit shown. L 10000 + + R Vout(t)
the circuit shown, 1. Find the transfer function H(jw) 2. If R R2 12 and L1mH, plot the frequency response (both the gain and the phase shift) of the circuit; 3. Identify the type of filter the circuit is, and state the break (cut off) frequency. R1 v(t)Vcos(ut) L1 R2 Figure 1
the circuit shown, 1. Find the transfer function H(jw) 2. If R R2 12 and L1mH, plot the frequency response (both the gain and the phase shift) of...
PART 1 -PSPICE (27 MARK 1.) Use PSPICE to build the following circuit in figure 1 below. Simulate and take the screenshot of the circuit and the simulation output files for Ix, ly, Vbc, Vbd, and Vd. Post your screen shot in word document (5 Marks) tỷ 10 tỉ wome 40 046 bbw b 10 C 0.250 d 24 e 40f - W 120 x . Vs(t)=8cos(2t-30) volts + 129 23a is = 2/15A Figure 1 2.) Find the input...
Problem 9.24 PSpice Multisim Part A For the circuit shown in (Figure 1), find the frequency at which the impedance Zab is purely resistive. Suppose R = 400 22 L = 350 mH and C = 50 uF. Express your answer using three significant figures.Part B Find the value of Zab at the frequency of Part A. Express your answer to two significant figures and include the appropriate units.
Problem 4: /25 For the circuit shown below, use frequency-domain circuit analysis techniques to determine (a) the voltage transfer function Hw) of the circuit; (b) the magnitude response H(o) of the circuit; and (c) the phase response (0) of the circuit. (d) Based on the results of parts (a) - (c), identify the type of filter circuit shown. R L 10000 + + Vout(t)
Find the transfer function T(jw) for the circuit below. Also find the magnitude response, 0 OP000 + + C R 1 phase response and draw the bode plots for the above circuit and derived transfer function. (10 points)
2. Use PSpice to find Io and Vo in the circuit below. 50 nF 10mH 20Ω 1()cos(10t) v 2052 Figure 2 Let v1-o, v1-5, TD-0, TR-u,F-u, P-2.Sm, and PER-Sm
6.1.1 In order to illustrate that the LISN essentially presents 50Ω impedances between phase and ground and between neutral and ground, use PSPICE to plot the frequency response of the impedance looking into one side of the LISN shown in Fig. P6.1.1 over the conducted emission frequency range of 150 kHz-30 MHz for two cases of impedance seen looking into the power net: (1) short-circuit load and (2) open-circuit load. Determine the values at each end of the frequency band....
Problem 14.18 PSpice Multisim Part C Find Q For the bandpass filter shown the fiqure R 9 kSn,C 8 nF , and L = 12mH (Figure 1) vec Q0.136083 Figure 1 of 1> SubmitPre ious Ans Request Answer X Incorrect; Try Again; 3 attempts remaining ▼ Part D Find wel vec krad/s cl Problem 14.18 PSpice Multisim Part E k2, C 8 For the bandpass filter shown the figure R nF, and L 12 mHH (Figure 1) 9 Find fal...
please use PSPICE and put the solutuin in clear way .
pspice is requird please
Question #1: Passive Filters For the filter shown in Figure 1, using PSPICE a) Show your implementation of this circuit using PSPICE b) Plot the Bode Diagram (magnitude plot and phase plot) c) From the result of part b, what is the type of this filter? d) From part b Find Wc1,Wc2,W,, Q, and B 8k12 10 mH 10 nF Figure 1
Problem 2: /25 For the circuit shown below, use frequency-domain circuit analysis techniques to determine (a) the voltage transfer function H(o) of the circuit; (b) the magnitude response H(o) of the circuit; and (c) the phase response (0) of the circuit. (d) Based on the results of parts (a) - (c), identify the type of filter circuit shown. L 10000 + + R Vout(t)
