Water at 27℃ flows from a storage tank through 170 m of a steel pipe

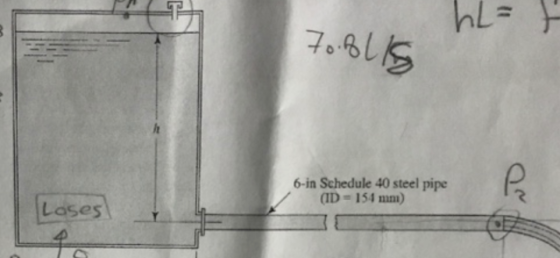

Water at 27℃ flows from a storage tank through 170 m of a steel pipe with an internal diameter of 154 mm. Taking the energy loss due to friction into account, calculate the required head h above the pipe inlet to produce a volume flow rate of 70.8 L/s.
Homework Answers

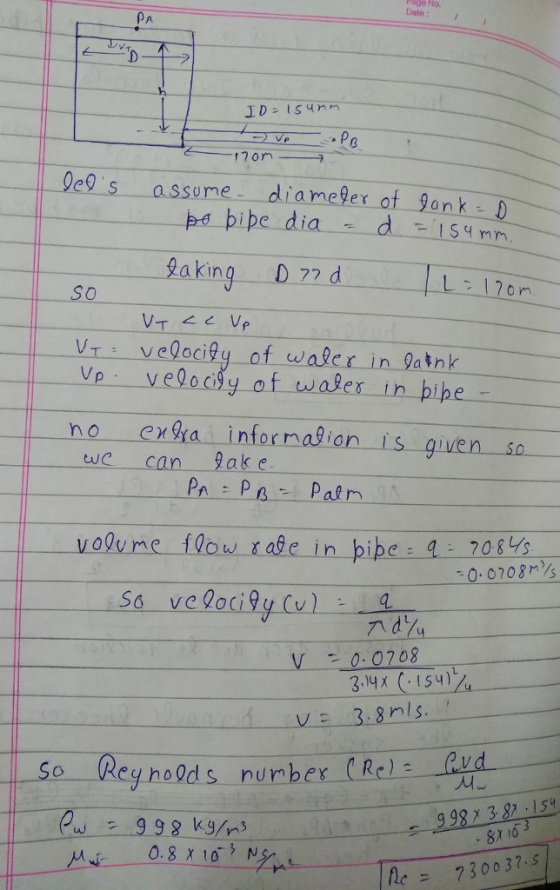

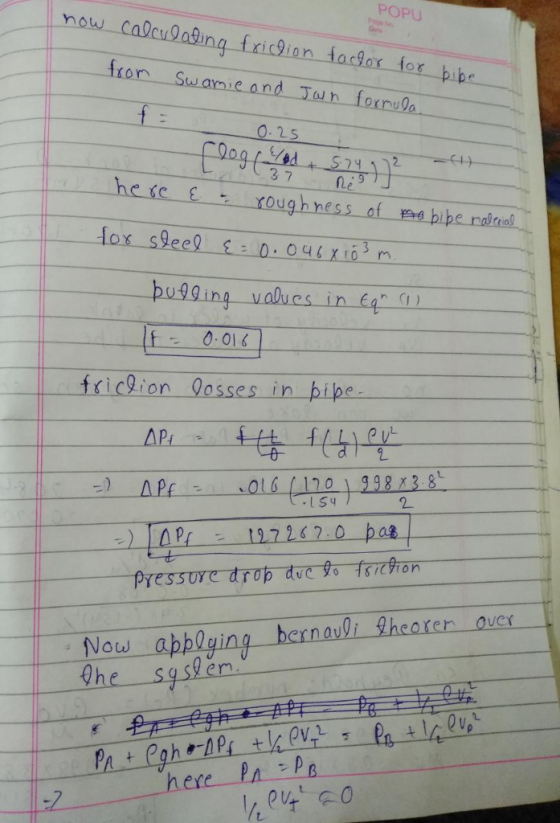

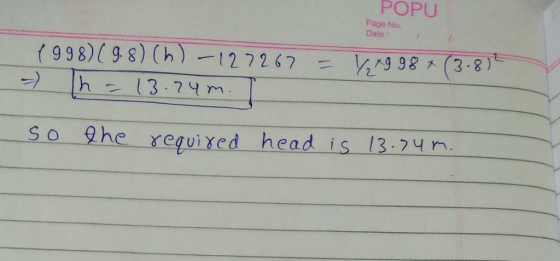

Simple application of Bernauli theorem considering friction losses. for calculating friction factor I have used Swamie and Jain formula, one can use some other formula also. process will be the same. pressure at the top is not given so I took it to be atmospheric pressure. And dia of the tank is also not given so we can take to be large.
Add Answer to:
Water at 27℃ flows from a storage tank through 170 m of a steel pipe
Water flows through a cast iron pipe at a velocity of 4.2 m/s. The pipe is...
Water flows through a cast iron pipe at a velocity of 4.2 m/s. The pipe is 400 m long and has a diameter of 150 mm. The friction factor is 0.00593. Determine the Reynolds number and head loss due to friction.
Problem 1. Water flows from a large tank through a smooth pipe of length 80 m....
Problem 1. Water flows from a large tank through a smooth pipe of length 80 m. Both the tank free surface and jet exit are exposed to the atmosphere. Take the density of water p = 1000 kg/m3, dynamic viscosity of water u = 0.001 kg/m.s, atmospheric pressure = 100 kPa, and gravity = 9.8 m/s2. Calculate the volumetric flow rate through the pipe. Neglect entrance losses to the pipe. Hint: Consider the inlet and outlet sections of the pipe...
Problem 1. Water flows from a large tank through a smooth pipe of length 80 m....
Problem 1. Water flows from a large tank through a smooth pipe of length 80 m. Both the tank free surface and jet exit are exposed to the atmosphere. Take the density of water p = 1000 kg/m3, dynamic viscosity of water j = 0.001 kg/m.s, atmospheric pressure = 100 kPa, and gravity = 9.8 m/s2. Calculate the volumetric flow rate through the pipe. Neglect entrance losses to the pipe. Hint: Consider the inlet and outlet sections of the pipe...
(b) Water flows under gravity between two reservoirs through a pipe of length 5000m. The diameter of the pipe is 0.2 m...
(b) Water flows under gravity between two reservoirs through a pipe of length 5000m. The diameter of the pipe is 0.2 m and the roughness size is 0.04 mm. The water levels in the two reservoirs are maintained with a difference of 50 m. Determine the discharge through the pipe. Neglect all minor losses. Use the attached Moody diagram for estimation of friction factor. (10 marks) (c) In (b), now include entry loss at the upper reservoir with loss coefficient...
A cylindrical water-storage tank has a height of 8.3 m and a radius of 5.8 m....
A cylindrical water-storage tank has a height of 8.3 m and a radius of 5.8 m. The storage tank is full of water but is vented to the atmosphere. The bottom of the tank is 33 m off the ground. A 14 cm diameter pipe runs vertically down from the tank and goes 1.5 m underground before turning horizontal. The water flow in the horizontal pipe is 79 L/s. A) What is the water pressure (gauge) in the horizontal pipe...
1) Water is pumped steadily through a 0.10 m diameter pipe from one closed, pressurized tank...
1) Water is pumped steadily through a 0.10 m diameter pipe from one closed, pressurized tank to another as shown in the figure. The pump adds 4 kW to the water and the head loss of the flow is 10 m. Determine the velocity of the water leaving the pipe. Draw energy and hydraulic grade lines. Ppupn= A(Ans= 5m/s) ar 300 kPa Tank I 35 m pa = 500 kPa 15 m Tank II DUMD 0.10 m diameter pipe
Water flows through the pipe bend shown in Fig Q1d, which lies in the horizontal plane....
Water flows through the pipe bend shown in Fig Q1d, which lies in the horizontal plane. If the volume flow-rate is 1.0 L/s and the pipe diameter is 30 mm, calculate the mean velocity in the pipe and the force that the water imposes on the pipe if the inlet pressures is 1.1 bar and the outlet pressure is 1.0 bar. (d) 181 Fig. Q1d
Water is released from a water tank through a pipe to the atmosphere. The pipe diameter...
Water is released from a water tank through a pipe to the
atmosphere. The pipe diameter is 8 mm
and the length is 6 m. Water temperature is 15 oC. The
resistance coefficient of the pipe f = 0.015
and the difference between the water surface and the pipe outlet is
3 m. Determine the exit velocity
of water and sketch the Hydraulic Grade Line (HGL) and Energy Grade
Line (EGL) along the pipe.
Assume that minor loss can be...
4. Water is circulated from a large tank through a pipe made of steel and back to the tank as sho...
Unit Operation and Fluid Homework.
Please help!
4. Water is circulated from a large tank through a pipe made of steel and back to the tank as shown in the following figure. The inner diameter of the pipe is 0.03m. The suction line is 20m long, and the discharge line is 40m long. The power output of the pump is 300W, and the pump's efficiency is 75%. The vapor pressure of water is 2300Pa. (a) Use the info in the...
1. Water flows from Reservoir A to Reservoir B. The pipe diameter D is 1 m...
1. Water flows from Reservoir A to Reservoir B. The pipe diameter D is 1 m and the pipe length L is 300 m. H 16 m, h 2 m and the pipe friction factor is f 0.01. In your calculations consider K- 1 at the pipe outlet in tank B and neglect the loss of the inlet in tank A a. b. c. What will be the discharge in the pipe? What will be the pressure at point P...
Problem 1. Water flows from a large tank through a smooth pipe of length 80 m. Both the tank free surface and jet exit are exposed to the atmosphere. Take the density of water p = 1000 kg/m3, dynamic viscosity of water u = 0.001 kg/m.s, atmospheric pressure = 100 kPa, and gravity = 9.8 m/s2. Calculate the volumetric flow rate through the pipe. Neglect entrance losses to the pipe. Hint: Consider the inlet and outlet sections of the pipe...
Problem 1. Water flows from a large tank through a smooth pipe of length 80 m. Both the tank free surface and jet exit are exposed to the atmosphere. Take the density of water p = 1000 kg/m3, dynamic viscosity of water j = 0.001 kg/m.s, atmospheric pressure = 100 kPa, and gravity = 9.8 m/s2. Calculate the volumetric flow rate through the pipe. Neglect entrance losses to the pipe. Hint: Consider the inlet and outlet sections of the pipe...
(b) Water flows under gravity between two reservoirs through a pipe of length 5000m. The diameter of the pipe is 0.2 m and the roughness size is 0.04 mm. The water levels in the two reservoirs are maintained with a difference of 50 m. Determine the discharge through the pipe. Neglect all minor losses. Use the attached Moody diagram for estimation of friction factor. (10 marks) (c) In (b), now include entry loss at the upper reservoir with loss coefficient...
1) Water is pumped steadily through a 0.10 m diameter pipe from one closed, pressurized tank to another as shown in the figure. The pump adds 4 kW to the water and the head loss of the flow is 10 m. Determine the velocity of the water leaving the pipe. Draw energy and hydraulic grade lines. Ppupn= A(Ans= 5m/s) ar 300 kPa Tank I 35 m pa = 500 kPa 15 m Tank II DUMD 0.10 m diameter pipe
Water flows through the pipe bend shown in Fig Q1d, which lies in the horizontal plane. If the volume flow-rate is 1.0 L/s and the pipe diameter is 30 mm, calculate the mean velocity in the pipe and the force that the water imposes on the pipe if the inlet pressures is 1.1 bar and the outlet pressure is 1.0 bar. (d) 181 Fig. Q1d
Water is released from a water tank through a pipe to the
atmosphere. The pipe diameter is 8 mm
and the length is 6 m. Water temperature is 15 oC. The
resistance coefficient of the pipe f = 0.015
and the difference between the water surface and the pipe outlet is
3 m. Determine the exit velocity
of water and sketch the Hydraulic Grade Line (HGL) and Energy Grade
Line (EGL) along the pipe.
Assume that minor loss can be...
Unit Operation and Fluid Homework.
Please help!
4. Water is circulated from a large tank through a pipe made of steel and back to the tank as shown in the following figure. The inner diameter of the pipe is 0.03m. The suction line is 20m long, and the discharge line is 40m long. The power output of the pump is 300W, and the pump's efficiency is 75%. The vapor pressure of water is 2300Pa. (a) Use the info in the...
1. Water flows from Reservoir A to Reservoir B. The pipe diameter D is 1 m and the pipe length L is 300 m. H 16 m, h 2 m and the pipe friction factor is f 0.01. In your calculations consider K- 1 at the pipe outlet in tank B and neglect the loss of the inlet in tank A a. b. c. What will be the discharge in the pipe? What will be the pressure at point P...
