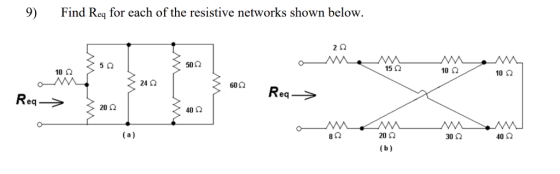

Find Req for each of the resistive networks shown below. 2Ω 50Ω 10Ω 15 10Ω 10Ω...

Question

Question

Find Req for each of the resistive networks shown below. 2Ω 50Ω 10Ω 15 10Ω 10Ω 24 Ω 20Ω 40Ω 8Ω 20Ω 30Ω 40Ω

engineering Electrical-Engineering

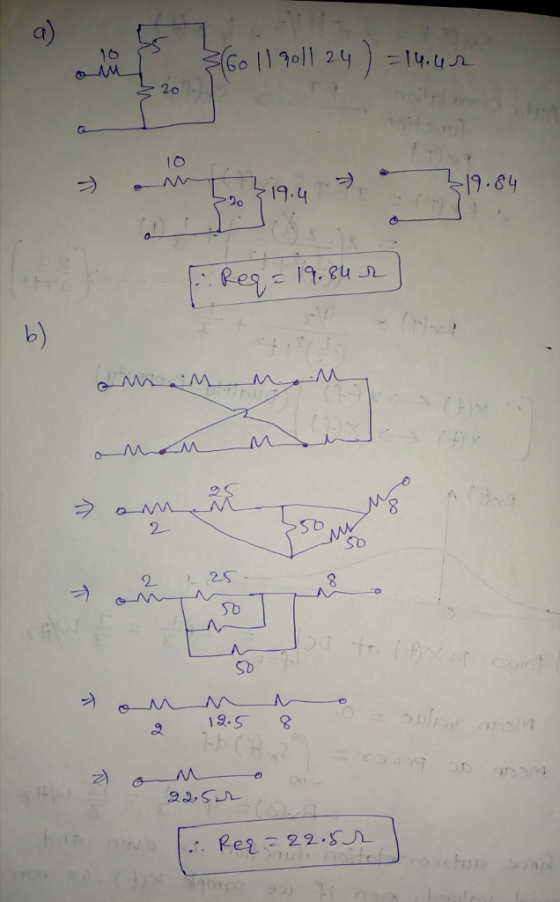

Answer 1

Answer #1

a) Qt 20 10 9.84 20i, 19.4 .ヲ b) lo S b SD Sb 23,SD

Answer 2

Similar Homework Help Questions

2. For the 3 circuits below, find the equivalent resistance between nodes a and b. Figure...

2. For the 3 circuits below, find the equivalent resistance between nodes a and b. Figure P3. 12Ω 15 | 240 120Ω 60Ω 20Ω 25Ω 7Ω 9B 10 Ω 18Ω 35 Ω 60Ω 30Ω 40Ω 5Ω 10Ω 20 Ω 14Ω 30Ω 3Ω 50 Ω 30Ω 12 Ω
Resistive circuit problem, please show clear step. Thank you. 3.Find the equivalent resistance Rab for each...

Resistive circuit problem, please show clear step. Thank you. 3.Find the equivalent resistance Rab for each of the circuits in Fig. P3.8. Figuro P3. Figure P3.8 6Ω 3Ω 18Ω 3Ω 5Ω 9Ω 2.5Ω 6Ω 5Ω 40Ω 12Ω 45 Ω 5Ω 20 Ω 60Ω 30Ω 2611 75Ω 15 Ω 1Ω 3Ω 10 Ω 3.4 Ω 1.25 Ω 10Ω 15Ω 5.2 Ω
(1 point) For the equivalent resistances in the circuits below if R = 105 ΩΩ Req...

(1 point) For the equivalent resistances in the circuits below if R = 105 ΩΩ Req 50Ω 200 Ω 10Ω (b)Rea 100 Ω 10Ω 20 Ω (c)Rea 30Ω 50 Ω 16 Ω 2013 Paul Hummel

Perform nodal analysis on the circuit shown below in Figure 5 to find the unknown node voltage equations

5. Perform nodal analysis on the circuit shown below in Figure 5 to find the unknown node voltage equations. Let V = 3 V; I = 0.5 A; R1 = 20 Ω; R2 = 30Ω; R3 = 10Ω; R4 = 30Ω; R5 = 20Ω.
10Ω 2.0Ω For the group of resistors connected as shown in the diagram. (a) Find the...

10Ω 2.0Ω For the group of resistors connected as shown in the diagram. (a) Find the equivalent resistance. (b) Calculate the current and voltage on each24 resistor. (c) Calculate the total power in this nctwork 60Ω 40Ω 12Ω 10Ω 50Ω
Part A) Find the equivalent resistance of all the resistors in the circuit below. Part B)...

Part A) Find the equivalent resistance of all the resistors in the circuit below. Part B) Find the current through the battery. Part C) Find total amount of energy stored across all the capacitors once they are completely charged by a 1.5V battery. 10Ω 15Ω ΛΜΑ 40Ω 30Ω 20Ω 1.5V

In the circuit given below, R-200. Find Vo and io. 50Ω 10Ω 10Ω 46 250 v...

In the circuit given below, R-200. Find Vo and io. 50Ω 10Ω 10Ω 46 250 v (+ 0.2% 5 A The value of vo in the circuit is 14.52 V The value of lo in the circuit is 2420 mA. Hints References eBook & Resources Hint #1
Find the equivent resistance Rab for each circuit 45 Ω 25 Ω 3012 50 Ω 15Ω...

Find the equivent resistance Rab for each circuit 45 Ω 25 Ω 3012 50 Ω 15Ω 60 Ω 10Ω 20 Ω 20Ω 60 Ω 18Ω 40(2 500 /20 Ω 40Ω 75 (7% 6012 12Ω 3012
In the shown circuit. The currenti, is 15 Ω M 10Ω a Select one: a. -...

In the shown circuit. The currenti, is 15 Ω M 10Ω a Select one: a. - 50 mA b. 0.05 mA 100 mA 12 ε 3V C. 25 ΠΙΑ 20Ω 10Ως d. 100 mA 5Ω 6V e. 50 mA b

Problem 03.025-Nodal analysis: Independent current source In the circuit given below, R-15 Ω. Determine the nodal...

Problem 03.025-Nodal analysis: Independent current source In the circuit given below, R-15 Ω. Determine the nodal voltages using nodal analysis and MATLAB. 20Ω 10Ω PI 4 A 8Ω 20Ω The value of nodal voltage vi is The value of nodal voltage v2 is The value of nodal voltage vs is The value of nodal voltage vs is V. References eBook&Resources Hints
