Results and Discussion: 1. Plot machine speed vs resistance
DC series MOTOR...
LAB
Results and Discussion:
1. Plot machine speed vs resistance
2. Plot machine speed vs current
3. Explain the above plots
4. Using DC Motor Theory, explain the current profile you obtained
5. Plot the motor speed against the input voltage. Explain the results obtained.

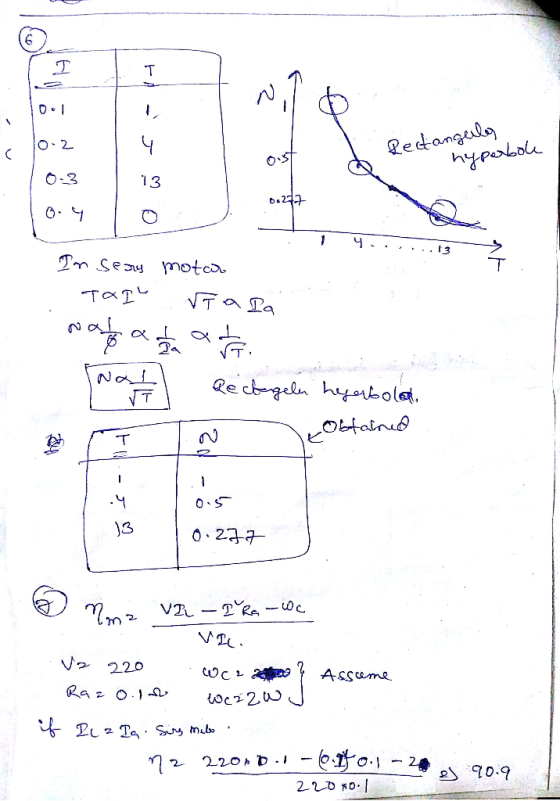

6. Using the graph, right, determine the torque at each current setting. Plot the motor speed (n) against the torque (T) of the motor. Discuss the results obtained.

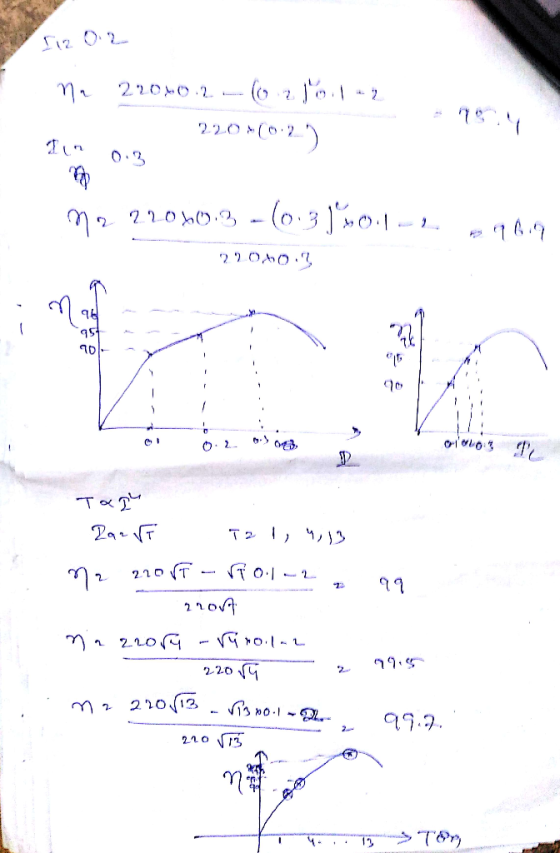

7. Calculate the efficiency of the motor at each current setting. Plot the efficiency against torque of the motor.
Homework Answers
DC series MOTOR... LAB I need help answering question 6 and 7. Results and Discussion: 1. Plot machine speed vs resistance 2. Plot machine speed vs current 3. Explain the above plots 4. Using DC M...
DC series MOTOR...
LAB
I need help answering question 6 and 7.
