Question

An Electric Vehicle (EV) is run by a DC series motor. The motor is fed from...

An Electric Vehicle (EV) is run by a DC series motor. The motor is fed from onboard battery bank through a PWM speed controller.

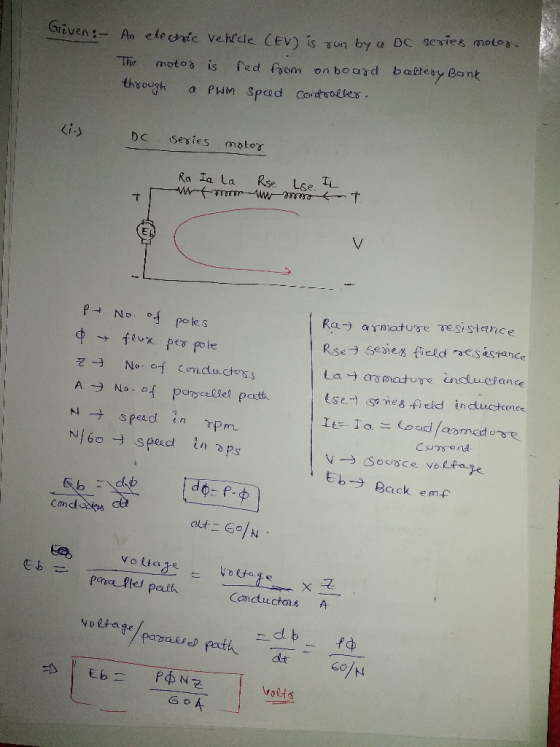

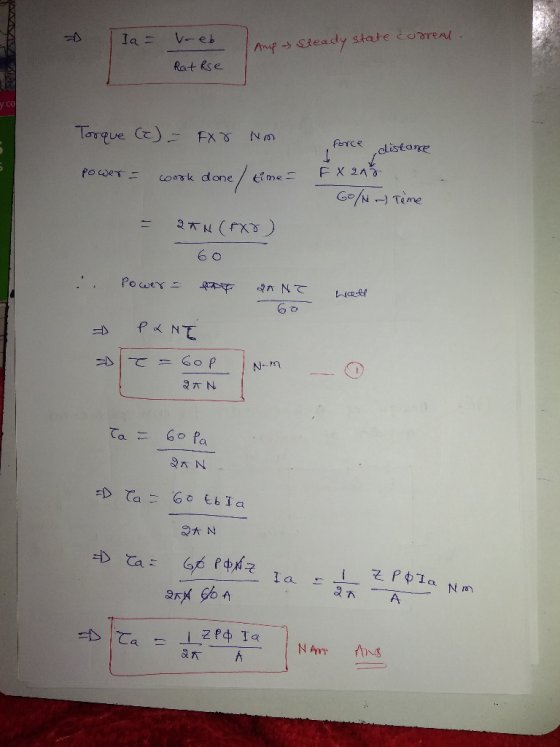

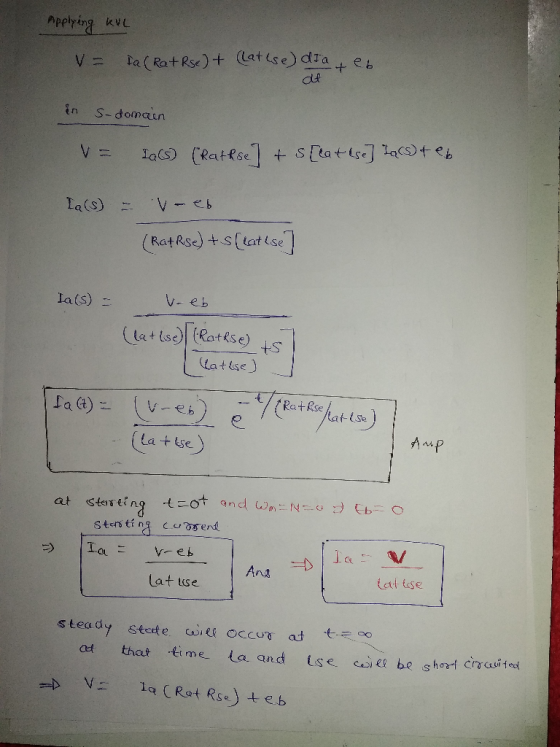

  1. Derive the equation for starting torque, starting current and steady state current of the motor.

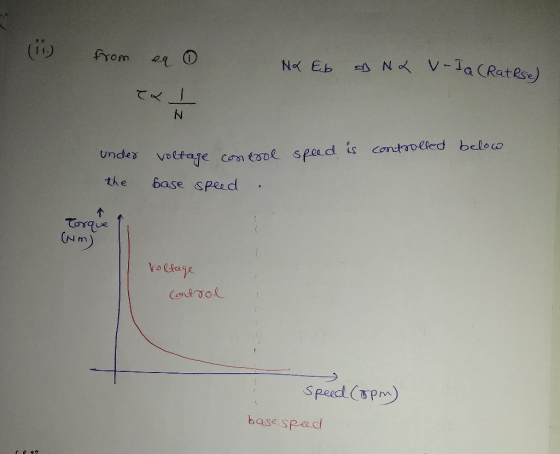

  2. Plot Torque vs Speed characteristics of the motor under voltage control.

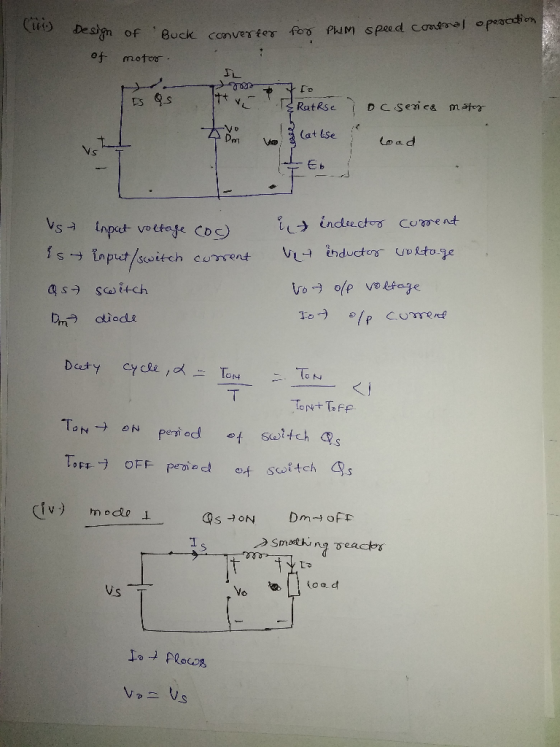

  3. Design a buck converter for PWM speed control operation of the motor.

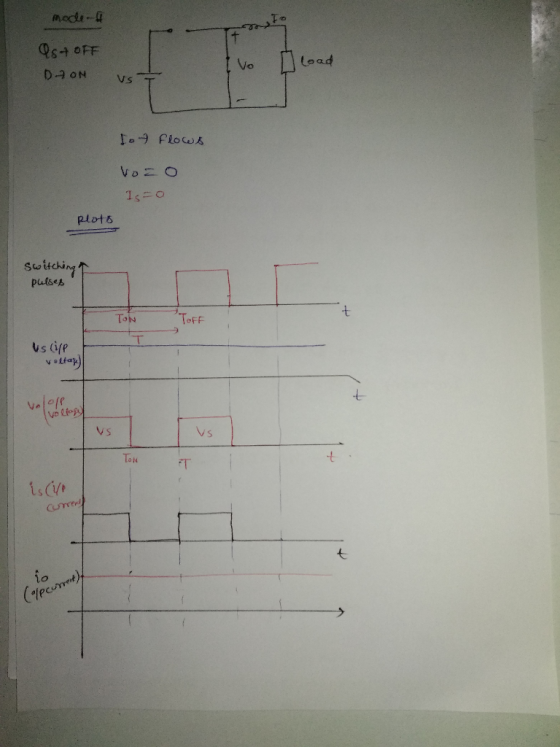

  4. Plot the input voltage, output voltage, input current, output current and switching pulses of the converter considering Continuous Current Mode (CCM) operation.
0 0
