Question

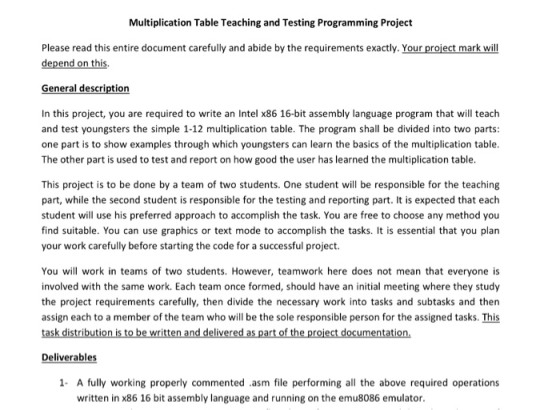

Multiplication Table Teaching and Testing Programming Project Please read this entire document carefully and abide by the requirements exactly. Your project mark will depend on this General description In this project, you are required to write an Intel x86 16-bit assembly language program that will teach and test youngsters the simple 1-12 multiplication table. The program shall be divided into two parts one part is to show examples through which youngsters can learn the basics of the multiplication table The other part is used to test and report on how good the user has learned the multiplication table This project is to be done by a team of two students. One student will be responsible for the teaching part, while the second student is responsible for the testing and reporting part. It is expected that each student will use his preferred approach to accomplish the task. You are free to choose any method you find suitable. You can use graphics or text mode to accomplish the tasks. It is essential that you plan your work carefully before starting the code for a successful project. You will work in teams of two students. However, teamwork here does not mean that everyone is involved with the same work. Each team once formed, should have an initial meeting where they study the project requirements carefully, then divide the necessary work into tasks and subtasks and thern assign each to a member of the team who will be the sole responsible person for the assigned tasks. This Deliverables 1 A fully working properly commented .asm file performing all the above required operations written in x86 16 bit assembly language and running on the emu8086 emulator

Answer 1

print macro msg

lea dx,msg

mov ah,09h

int 21h

endm

read macro n,j1,j2

j1:mov ah,01h

int 21h

        cmp al,0dh

        je j2

        sub al,30h

        mov bl,al

        mov ax,n

        mov dx,0ah

        mul dx

        xor bh,bh

        add ax,bx

        mov n,ax

        jmp j1

j2 :nop

endm

.model small

.stack 100h

.data

        msg1 db 10,13,'Enter the number: $'

        msg2 db 10,13,'Enter the limit: $'

        msg4 db 10,13,'$'

        msg5 db ' * $'

        msg6 db ' = $'

        msg7 db 10,13,'Multiplication table$'

        num dw 0

        limit dw 0

        pro dw 0

        m dw 1

    .code

    main proc

        mov ax,@data

        mov ds,ax

        print msg1

        ;reading 1st multidigit number

        read num,jump1,jump2

        print msg2

        ;reading 2nd multidigit number

        read limit,jump3,jump4

        ;printing multiplication table

        mov cx,limit

        print msg7

    loop1:mov bx,m

        mov ax,num

        mul bx

        push cx

        mov pro,ax

        print msg4

        mov ax,num

        call printmul

        print msg5

        mov ax,m

        call printmul

        print msg6

        mov ax,pro

        call printmul

        inc m

        pop cx

        loop loop1

        mov ah,4ch

        int 21h

    main endp

    printmul proc

        mov bx,000ah

        xor cx,cx

        ;push into stack

l2:xor dx,dx

        div bx

        push dx

        inc cx

        cmp ax,0000h

        jne l2

        ;pop from stack

    l3:pop dx

        add dl,30h

        mov ah,02h

        int 21h

        loop l3

        ret

    printmul endp

     end
